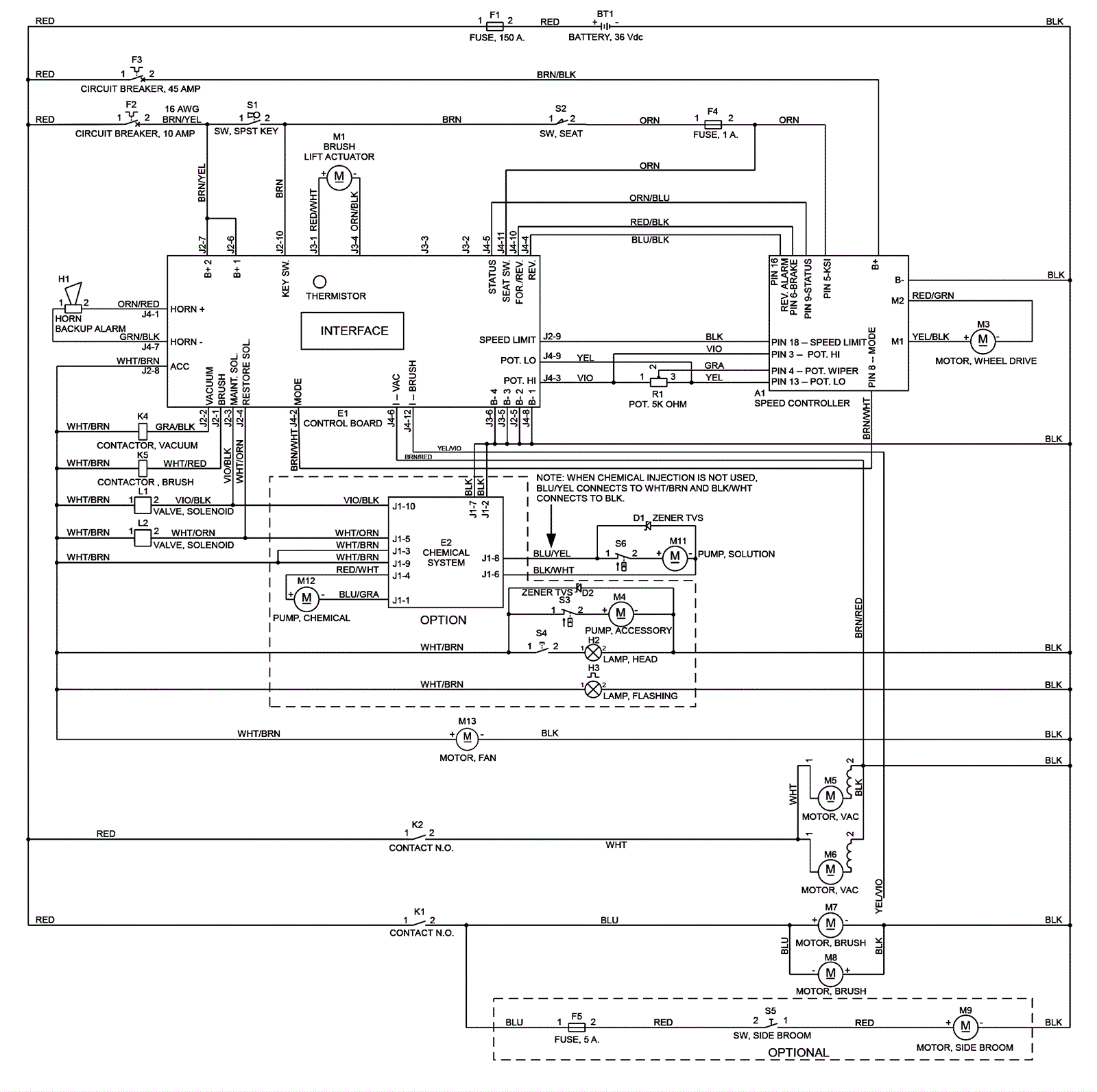

BRX 700 Wiring Diagram After SN 1839731

#PartDescriptionPriceReqNotesAvailability
A1 272-0409 Controller $1,044.05 1 usually ships 1-5 days
BT1 N/A Not available Call for price (battery) usually ships 3-26 days
E1a 272-0459 Control panel assembly $1,397.00 1 (before TSBUS2006-922) usually ships 1-5 days
E1b 272-7213 Control panel assembly (OBSOLETE) $1,490.92 1 (after TSBUS2006-922) usually ships 16-41 days
E2 272-9955 Control assembly $805.83 1 (detergent injection only, TSBUS2007-953) usually ships 1-5 days
F1 172-8836 150amp fuse $19.15 1 usually ships 16-41 days
F2 172-2160 10amp circuit breaker $75.10 1 (control circuit) usually ships 16-41 days
F3 272-2581 45amp circuit breaker $134.27 1 (wheel drive) usually ships 16-41 days
F4 N/A Not available Call for price 1 (1 amp fuse) usually ships 3-26 days
F5 N/A Not available Call for price 1 (10 amp circuit breaker) (side broom / optional) usually ships 3-26 days
H1 172-8839 Backup alarm $51.28 1 usually ships 16-41 days
H2 172-3498 Headlight kit $313.32 1 (optional) usually ships 1-5 days
H3 172-3495 Warning beacon kit $373.33 1 (optional) usually ships 16-41 days
K1 272-8184 36V 100amp contactor $54.10 1 usually ships 16-41 days
K2 272-8183 36V 200amp contactor $96.09 1 (TSBUS2008-1020) ships same day
L1 272-0454 Solenoid valve $209.34 1 (maintenance) usually ships 1-5 days
L2 272-0454 Solenoid valve $209.34 1 (restoration) usually ships 1-5 days
M1 172-8921 Actuator $537.16 1 usually ships 16-41 days
M3 472-6839 MOTOR/DRIVE WHEEL ASSY $3,740.00 1 usually ships 16-41 days
M4 172-1855 36V pump $850.49 1 (optional, TSBUS2007-964) usually ships 16-41 days
M5 172-1071 36V vacuum motor assembly $290.92 2 usually ships 16-41 days
M6 172-1071 36V vacuum motor assembly $290.92 2 usually ships 16-41 days
M7 172-9300 36V motor $1,565.99 1 usually ships 16-41 days
M8 172-9300 36V motor $1,565.99 1 usually ships 16-41 days
M9 172-9740 Motor assembly $1,431.75 1 (optional) usually ships 1-5 days
M11 172-1855 36V pump $850.49 1 (TSBUS2007-964) usually ships 16-41 days
M12 272-5403 Detergent pump $261.33 1 (detergent injection only) usually ships 16-41 days
M13 272-0412 Fan assembly (OBSOLETE) $192.61 1 usually ships 1-5 days
R1 172-2039 5K potentiometer $61.41 1 ships same day
S1 272-1316 Key switch assembly $194.27 1 usually ships 16-41 days
N/S 172-8922 Plastic drive nut $19.45 1 usually ships 16-41 days
N/S 272-5681 Carbon brush (pkg of 2) $25.36 1 usually ships 16-41 days
N/S 272-5681 Carbon brush (pkg of 2) $25.36 1 usually ships 16-41 days
N/S 172-1033 F.E. Bearing $76.52 1 usually ships 1-5 days
N/S 172-9303 Brush cap assembly (OBSOLETE) $387.31 1 usually ships 1-5 days
N/S 172-1816 Brush cover cap (OBSOLETE) $8.14 4 usually ships 1-5 days
N/S 172-9303 Brush cap assembly (OBSOLETE) $387.31 1 usually ships 1-5 days
N/S 172-9304 Carbon brush (sold individually) $46.92 4 usually ships 16-41 days
N/S 172-1816 Brush cover cap (OBSOLETE) $8.14 4 usually ships 1-5 days
N/S 172-8098 Replacement key $31.83 1 usually ships 16-41 days
