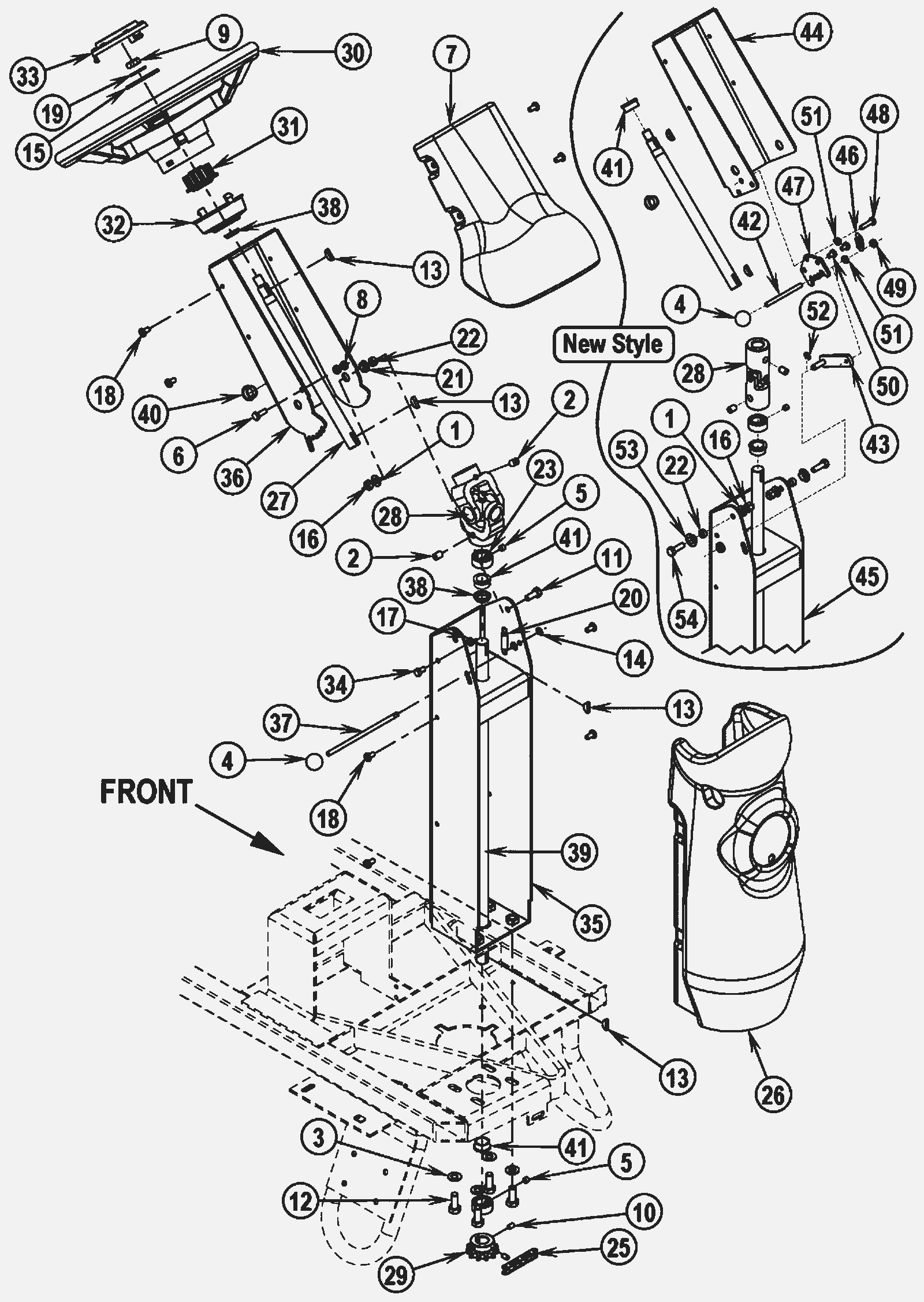

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
2 |
999-1373
|
Screw 3/8-16 x 3/8 socket set lock stainless steel |
2 |
|
|
3 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
4 |
172-2674
|
Knob |
1 |
|
|
5 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
2 |
|
|
6 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
1 |
(used on machines built before serial number 1942864) |
|
7 |
172-3492
|
Upper column shroud |
1 |
|
|
8 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
9 |
999-0262
|
Nut 1/2-13 nylon insert jam lock zinc plated |
1 |
|
|
10 |
272-1454
|
Screw 1/4-20 X 3/8 socket set lock |
2 |
|
|
11 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
(used on machines built before serial number 1942864 |
|
12 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
4 |
|
|
13 |
172-9387
|
Woodruff key |
4 |
|
|
14 |
172-0392
|
Retaining ring |
2 |
(used on machines built before serial number 1942864) |
|
15 |
999-0187
|
Washer 1/2 flat plain finish |
1 |
|
|
16 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
17 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
(used on machines built before serial number 1942864) |
|
18 |
999-1129
|
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
8 |
|
|
19 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
20 |
172-9056
|
Extension spring |
1 |
(used on machines built before serial number 1942864) |
|
21 |
172-8919
|
Flanged bearing |
2 |
(used on machines built before serial number 1942864) |
|
22 |
172-4008
|
Bushing |
2 |
|
|
23 |
172-0115
|
Shaft collar |
2 |
|
|
25 |
172-9068
|
Roller chain |
1 |
|
|
26 |
172-3491
|
Lower column shroud |
1 |
|
|
27 |
172-9072
|
Upper steering shaft |
1 |
|
|
28 |
172-9074
|
Universal joint |
1 |
|
|
29 |
172-8093
|
Sprocket |
1 |
|
|
30 |
172-9075
|
Steering wheel |
1 |
|
|
31 |
172-9078
|
Steering wheel adapter |
1 |
|
|
32 |
172-9076
|
Cup |
1 |
|
|
33 |
172-9077
|
Cap |
1 |
|
|
34 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
1 |
(used on machines built before serial number 1942864) |
|
35 |
272-1229
|
Lower column |
1 |
(TSBUS2005-887) |
|
36 |
172-3487
|
Upper column |
1 |
(used on machines built before serial number 1942864) |
|
37 |
172-3488
|
Locking rod |
1 |
(used on machines built before serial number 1942864) |
|
38 |
172-3489
|
Bearing nyliner |
3 |
(qty of 1 after Sept. 2004) (TSBUS2005-887) (used on machines built before SN 1942864) |
|
39 |
172-3490
|
Lower steering shaft |
1 |
|
|
40 |
172-1803
|
Plug |
1 |
|
|
41 |
172-9388
|
Flanged bearing |
2 |
(after Sept. 2004) (TSBUS2005-887) (qty of 3 after SN 1942863) |
|
42 |
272-9482
|
Rod |
1 |
(used on machines built after serial number 1942863) |
|
43 |
272-9483
|
Steering weldment |
1 |
(used on machines built after serial number 1942863) |
|
44 |
272-9484
|
Upper column |
1 |
(used on machines built after serial number 1942863) |
|
45 |
472-8232
|
STEERING UPGRADE KIT |
1 |
(used on machines built after serial number 1942863) |
|
46 |
272-9479
|
Extension spring |
1 |
(used on machines built after serial number 1942863) |
|
47 |
272-9480
|
Steering column ratchet |
1 |
(used on machines built after serial number 1942863) |
|
48 |
999-0830
|
Screw 1/4-20 x 1 hex head plain finish |
1 |
(used on machines built after serial number 1942863) |
|
49 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
1 |
(used on machines built after serial number 1942863) |
|
50 |
272-9727
|
Screw 1/4-20 x 1/2 hex head lock |
2 |
(used on machines built after serial number 1942863) |
|
51 |
999-0971
|
Nut 1/4-20 jam stainless steel |
2 |
(used on machines built after serial number 1942863) |
|
52 |
172-0294
|
Retaining ring |
1 |
(used on machines built after serial number 1942863) |
|
53 |
272-9481
|
Flanged bearing |
2 |
(used on machines built after serial number 1942863) |
|
54 |
999-9082
|
Screw M8-1.25 x 25mm hex head stainless steel |
2 |
(used on machines built after serial number 1942863) |
|
