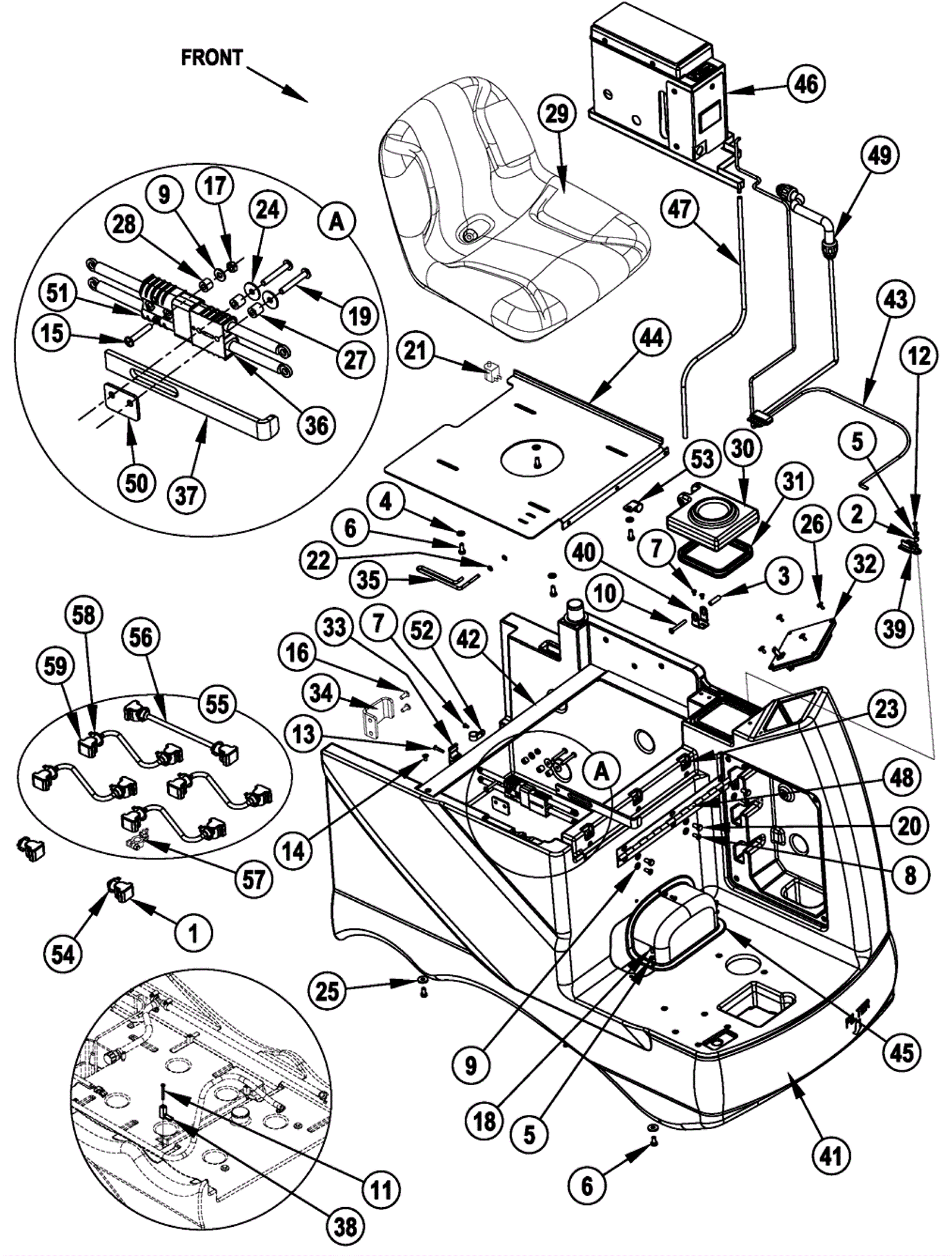

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
372-0048
|
Boot battery post |
2 |
|
|
2 |
172-0185
|
Bushing |
1 |
|
|
3 |
172-3429
|
Bushing |
1 |
|
|
4 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
5 |
999-1862
|
Washer #10 flat SAE stainless steel |
4 |
|
|
6 |
999-0494
|
Bolt 5/16-18 x 7/8 hex head stainless steel |
8 |
|
|
7 |
999-0571
|
Screw 10-24 x 3/8 pan head phillips stainless steel |
3 |
|
|
8 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
3 |
|
|
9 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
7 |
|
|
10 |
999-1030
|
Screw 1/4-20 x 2 pan head phillips stainless steel |
1 |
|
|
11 |
372-0047
|
Screw 10-24 x 2 pan head phillips |
4 |
|
|
12 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
|
13 |
999-0520
|
Screw 10-24 x 1 pan head phillips stainless steel |
5 |
|
|
14 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
1 |
|
|
15 |
999-0523
|
Screw 1/4-20 x 1 1/2 pan head phillips stainless steel |
1 |
|
|
16 |
999-9006
|
Screw 5/16-18 x 3/4 pan head phillips stainless steel |
2 |
|
|
17 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
|
18 |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
3 |
|
|
19 |
999-0599
|
Screw 1/4-20 x 1 3/4 pan head phillips stainless steel |
2 |
|
|
20 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
3 |
|
|
21 |
272-9417
|
Seat switch |
1 |
|
|
22 |
172-0392
|
Retaining ring |
2 |
|
|
23 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
|
24 |
172-0553
|
Washer 17/64 x 1/16 flat |
2 |
|
|
25 |
172-2067
|
Washer 11/32 x 1/8 flat |
4 |
|
|
26 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
4 |
|
|
27 |
181-0421
|
Spacer |
2 |
|
|
28 |
181-0176
|
Phenolic spacer |
1 |
|
|
29 |
372-0045
|
Seat (OBSOLETE SEE REPLACEMENT OPTIONS) |
1 |
(original seat is no longer available and is now replaced with this option) |
|
30 |
172-3432
|
Solution tank cover (OBSOLETE) |
1 |
|
|
31 |
172-3433
|
Gasket |
1 |
|
|
32a |
272-0459
|
Control panel assembly |
1 |
(before TSBUS2006-922) |
|
32b |
272-7213
|
Control panel assembly (OBSOLETE) |
1 |
(after TSBUS2006-922) |
|
33 |
172-3437
|
Cable clamp |
5 |
|
|
34 |
272-6102
|
Tank mount bracket |
1 |
|
|
35 |
172-3441
|
Prop rod |
1 |
|
|
36 |
172-3443
|
Charger connector assembly |
1 |
|
|
37 |
172-3439
|
Disconnect bar |
1 |
|
|
38 |
272-0462
|
Cable clamp |
4 |
|
|
39 |
272-0461
|
Plastic latch |
1 |
|
|
40 |
272-0460
|
Hinge bracket (OBSOLETE) |
1 |
|
|
41 |
472-6882
|
TANK SOLUTION AQUARIDE |
1 |
|
|
42 |
472-6883
|
BRKT SEAT |
1 |
|
|
43 |
472-6884
|
HOSE CHEM RESISTANT |
1 |
|
|
44 |
472-6885
|
WELDT SEAT MOUNT |
1 |
|
|
45 |
272-6106
|
Actuator cover |
1 |
|
|
46 |
472-6985
|
ASSY DETERGENT INJ AQUARIDE |
1 |
(see detergent injection system) (TSBUS2006-922) |
|
47 |
272-6107
|
PVC hose |
1 |
|
|
48 |
272-2589
|
Hinge |
1 |
|
|
49 |
272-6108
|
Detergent system harness |
1 |
|
|
50 |
172-2155
|
Spacer |
1 |
|
|
51 |
172-1770
|
Connector assembly |
1 |
|
|
52 |
172-2071
|
P clamp |
1 |
|
|
53 |
172-8870
|
P clamp |
1 |
|
|
55 |
272-1470
|
Battery connector kit |
1 |
(includes 56-59) (Battery cables are not included after SN 1688856, but battery connector kit 272-1470 can be ordered seperately if battery connectors are desired) |
|
56 |
172-8828
|
Battery cable |
5 |
|
|
57 |
172-8829
|
Battery terminal clamp |
12 |
|
|
59 |
172-0223
|
Battery cable boot |
10 |
|
|
N/S |
272-1316
|
Key switch assembly |
1 |
|
|
N/S |
172-8098
|
Replacement key |
1 |
|
|
N/S |
272-2593
|
Main harness (OBSOLETE) |
1 |
(before TSBUS2006-922) |
|
N/S |
272-9555
|
Wiring harness |
1 |
(after TSBUS2006-922) |
|
