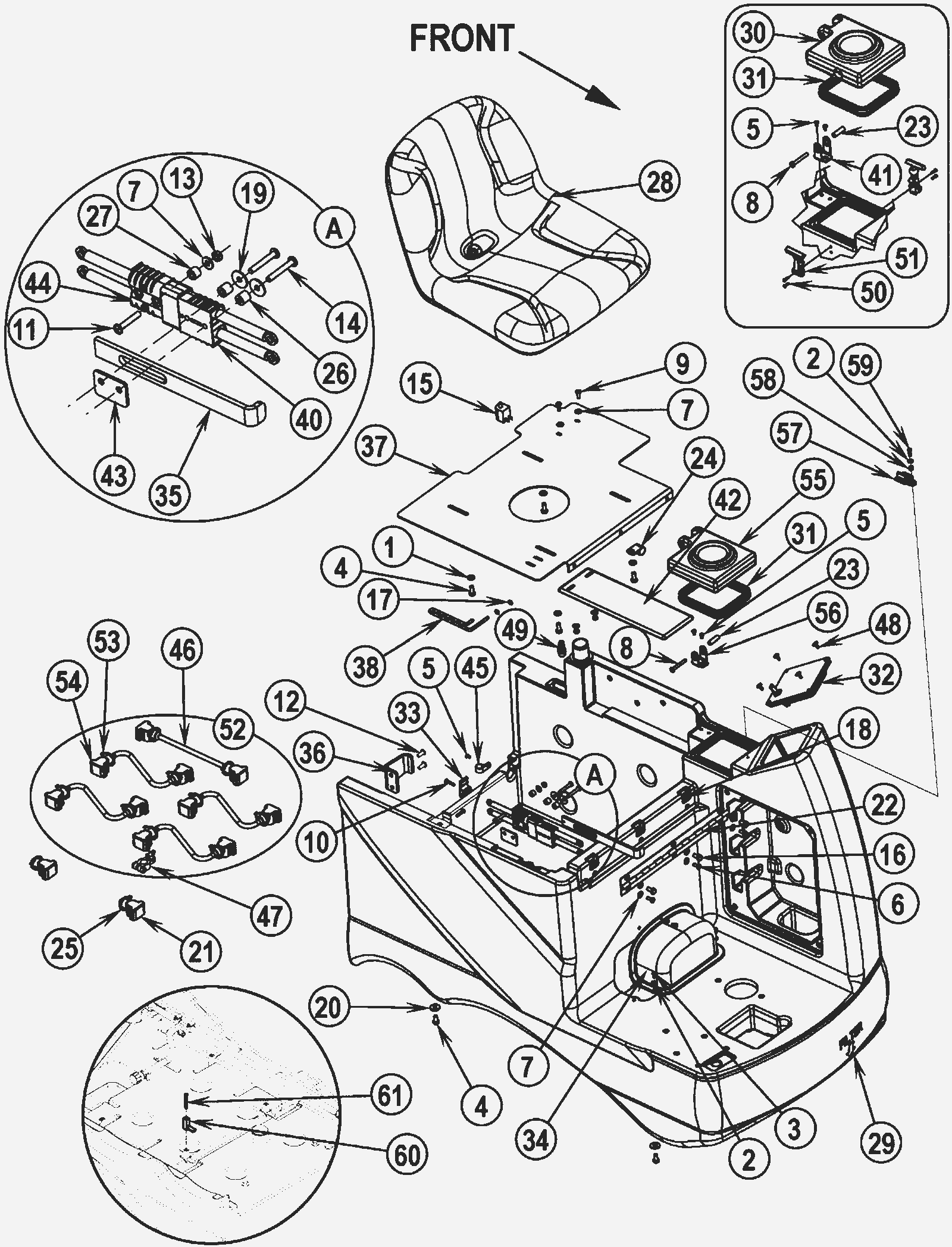

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 999-0024 Washer 5/16 flat stainless steel 4
2 999-1862 Washer #10 flat SAE stainless steel 4
3 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 3
4 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel 8
5 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 3
6 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 3
7 999-0123 Washer 1/4 SAE flat zinc plated 11
8 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel 1
9 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 2
10 999-0520 Screw 10-24 x 1 pan head phillips stainless steel 5
11 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel 1
12 999-9006 Screw 5/16-18 x 3/4 pan head phillips stainless steel 2
13 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
14 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel 2
15 272-9417 Seat switch 1 (original seat is no longer available and is now replaced with this option)
16 999-0783 Screw M8-1.25 x 16mm hex head 3
17 172-0392 Retaining ring 3
18 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
19 172-0553 Washer 17/64 x 1/16 flat 2
20 172-2067 Washer 11/32 x 1/8 flat 4
21 172-0223 Battery cable boot 2
22a 172-8806 Hinge (OBSOLETE) 1 (used on machines before TSBUS2005-896)
22b 272-2589 Hinge 1 (used on machines after TSBUS2005-896)
23 172-3429 Bushing 1
24 172-8870 P clamp 1
26 181-0421 Spacer 2
27 181-0176 Phenolic spacer 1
28 372-0045 Seat (OBSOLETE SEE REPLACEMENT OPTIONS) 1 (original seat is no longer available and is now replaced with this option)
29 472-6882 TANK SOLUTION AQUARIDE 1 (TSBUS2005-896)
30 172-3432 Solution tank cover (OBSOLETE) 1 (for machines between SN 1685779-1697092)
31 172-3433 Gasket 1
32a 272-0459 Control panel assembly 1 (before TSBUS2006-922)
32b 272-7213 Control panel assembly (OBSOLETE) 1 (after TSBUS2006-922)
33 172-3437 Cable clamp 5
34 172-3438 Actuator cover 1 (TSBUS2005-896)
35 172-3439 Disconnect bar 1
36 272-6102 Tank mount bracket 1
37a 172-3440 Seat mount weldment (OBSOLETE) 1 (seat weldment 172-3440 was modified as of SN 1726172) (used on machines before TSBUS2005-896)
37b 272-2592 Seat mount weldment (OBSOLETE) 1 (used on machines after TSBUS2005-896)
38 172-3441 Prop rod 1
40 172-3443 Charger connector assembly 1
41 172-3444 Hinge bracket 1 (used before SN 1697092)
42 172-3447 Battery box panel 1
43 172-2155 Spacer 1
44 172-1770 Connector assembly 1
45 172-2071 P clamp 1
46 172-8828 Battery cable 5
47 172-8829 Battery terminal clamp 12
48 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 4
49 172-4078 Barb adapter 1/2 X 3/8 NPT 1 (before SN 1685779)
50 372-0046 Screw 6-18 x 1/2 pan head phillips plastite 4 (for machines between SN 1685779 and 1697092)
51 172-9713 Latch and keeper 2 (for machines between SN 1685779 and 1697092)
52 272-1470 Battery connector kit 1 (includes items 46-47, 53-54) (Battery cables are not included after SN 1688856, but battery connector kit 272-1470 can be ordered seperately if battery connectors are desired)
54 172-0223 Battery cable boot 10
55 172-3432 Solution tank cover (OBSOLETE) 1
56 272-0460 Hinge bracket (OBSOLETE) 1 (TSBUS2003-851)
57 272-0461 Plastic latch 1 (TSBUS2003-851)
58 172-0185 Bushing 1 (TSBUS2003-851)
59 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 1 (some machines use a screw, pan phil plastite 10-14 x 1.00 in this location, if there is not a tank insert. TSBUS2003-851)
60 272-0462 Cable clamp 4
61 372-0047 Screw 10-24 x 2 pan head phillips 4
N/S 272-1316 Key switch assembly 1
N/S 172-8098 Replacement key 1
N/S 272-9555 Wiring harness 1
