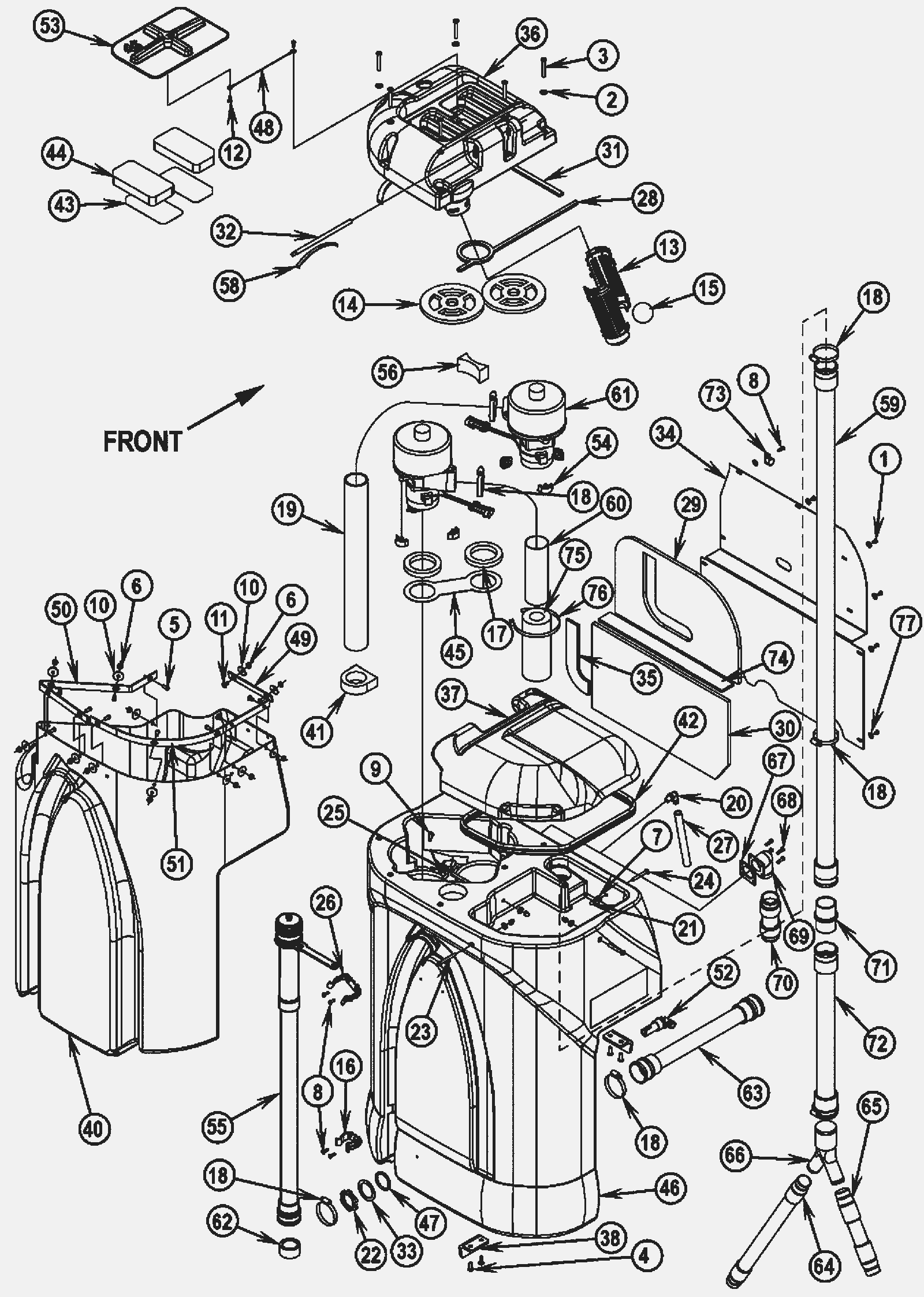

Recovery Assembly

#PartDescription ReqNotesAvailability
1 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 8
2 999-0123 Washer 1/4 SAE flat zinc plated 6
3 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel 6
4 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 4
5 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 8
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 12
7 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 5
8 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 5
9 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 1
10 172-0548 Washer 17/64 x 47/64 flat stainless steel 12
11 372-1630 Screw 1/4-20 x 1/2 flat head phillips stainless steel 4
12 272-9978 Screw 10-14 x 1/2 pan head phillips plastite 2
13 172-0517 Float cage half (2 required for full float cage) 2
14 272-1233 Gasket 2
15 172-0192 Float ball 1
16 272-1159 Plastic clamp 1
17 272-0430 Vacuum duct gasket 2
18 272-9976 #32 hose clamp SAE 7
19 172-8884 Vacuum hose 1
20 172-4056 90 degree barbed elbow 1 (before SN 1685779)
21 172-3139 Nut 1/4-20 high crown acorn stainless steel 5
22 172-4903 Nut 1 1/4-12 NPS conduit lock 1
23 272-0431 Screw 1/4-20 x 2 1/4 flathead phillips 1
24 272-0432 Screw 1/4-20 x 2 flat phillips stainless steel (OBSOLETE) 2
25 272-0433 Screw 1/4-20 x 2 1/4 pan head phillips stainless steel 1
26 172-3169 Plastic clamp 1
27 272-2630 Hose 1 (before SN 1685779)
28 272-0430 Vacuum duct gasket 1
29 172-3337 Top panel muffler 1
30 172-3338 Bottom panel muffler 1
31 272-6565 Gasket strip 1
32 172-3333 Cover pivot pin 1
33 272-0434 Washer flat (OBSOLETE) 1
34 272-8999 Exhaust cover 1
35 272-1254 Sound foam (OBSOLETE) 1
36 272-9000 Vacuum motor cover 1
37 272-9139 Recovery tank lid 1
38 172-3344 Tank mount bracket 2
40 272-0435 Bladder (OBSOLETE) 1
41 272-0436 Hose gasket 1
42 172-3346 Recovery tank lid gasket 1
43 172-3347 Filter screen 2
44 172-3348 Filter 2
45 172-3500 Separator plate 1
46 272-0437 Recovery tank 1
47 272-0438 O ring (OBSOLETE) 1
48 172-3357 9 inch wire rope 1
49 272-0439 Strap (OBSOLETE) 2
50 272-0440 Strap 1
51 272-0441 Strap 1
52 272-0442 Elbow assembly 1
53 272-5303 Recovery tank lid and gasket 1
54 172-3351 Vibration mount 6
55a 172-3352 Drain hose 1
55b 272-8537 Drain hose cap assembly 1 (optional)
55c 272-9273 19 inch drain hose extension 1 (optional)
56 272-1481 Foam spacer 1 (replaces previous part number 172-3501 after April 2004)
58 172-3358 Spring 1
59 172-3502 Vacuum hose assembly 1
60 272-1253 Vacuum hose 2 x 6 1
61 172-1071 36V vacuum motor assembly 2
62 272-0444 Adapter 1
63 272-0445 Vacuum hose (OBSOLETE) 1
64 272-0446 Vacuum hose 1
65 272-0447 Vacuum hose 1
66 272-0448 Weldment y-tube 1
67 172-8015 Gasket (OBSOLETE) 1 (after SN 1685778)
68 272-9542 Screw 10-14 x 3/4 pan head plastite 4 (after SN 1685778)
69 272-0449 Hose adaptor (OBSOLETE) 1 (after SN 1685778)
70 272-0450 Vacuum hose 1 (after SN 1685778)
71 272-0451 Coupler 1 (after SN 1681196)
72 272-0452 Vacuum hose assembly 1 (after SN 1681196)
73 181-0269 P clamp 1 (after SN 1681196)
74 272-1252 Sound foam 1
75 172-0126 Acoustical foam 1
76 997-2102 Cable tie 1
77 999-1862 Washer #10 flat SAE stainless steel 9
N/S 272-5681 Carbon brush (pkg of 2) 1
N/S 172-3359 Vacuum harness 1
N/S 272-5303 Recovery tank lid and gasket 1
