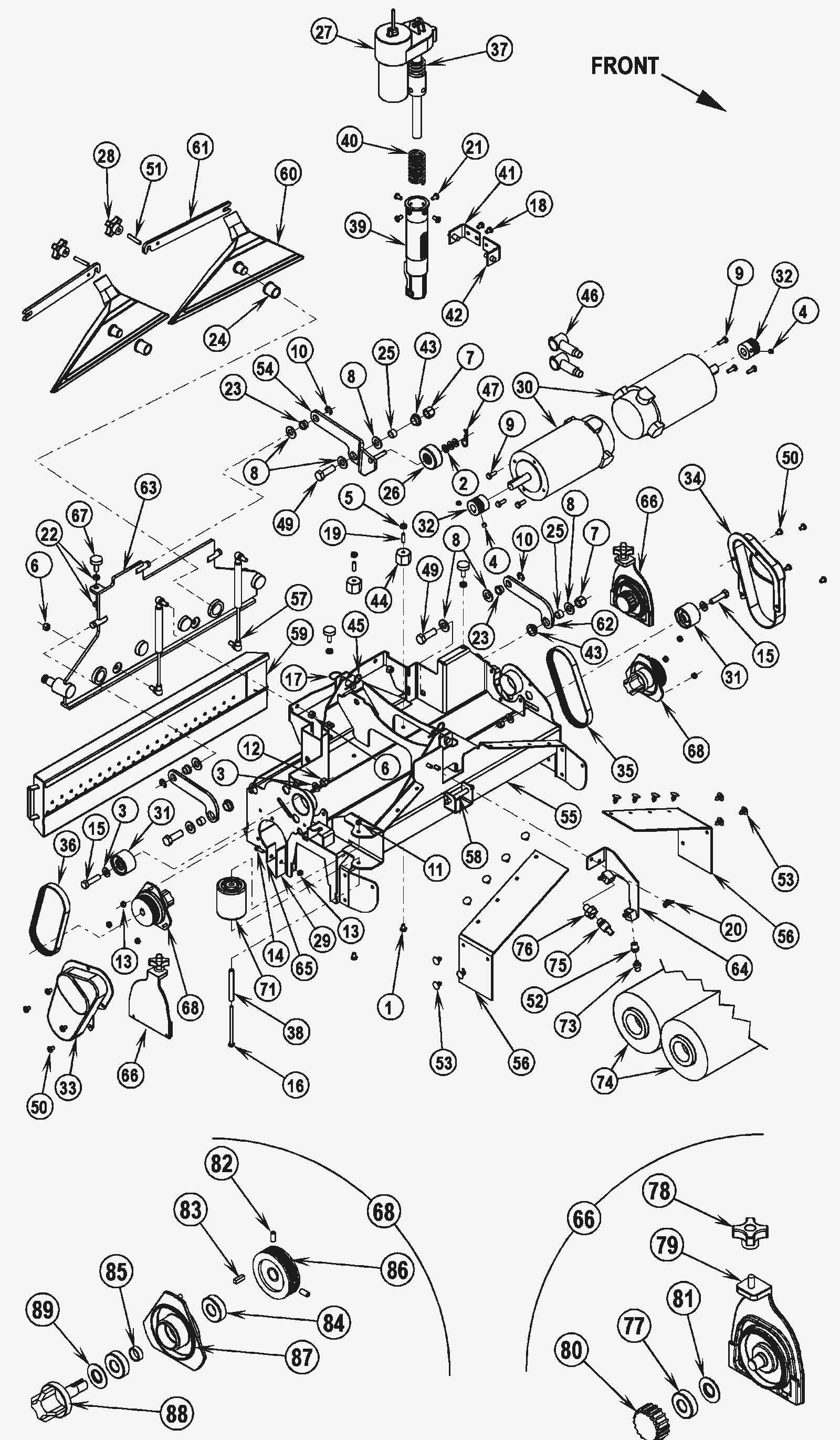

Extract/Sweep Assembly

#PartDescription ReqNotesAvailability
1 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc 2
2 999-0024 Washer 5/16 flat stainless steel 3
3 999-0120 Washer 3/8 SAE flat 4
4 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 4
5 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
6 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
7 999-1208 Nut 1/2-13 nylon insert lock stainless steel 3
8 999-0114 Washer 1/2 SAE flat 9
9 272-1596 Bolt 1/4-20 x 3/4 hex head lock 6
10 172-0269 Retaining ring 3
11 999-0469 Nut M6-1 nylon insert lock zinc plated 1
12 272-4936 Nut 2
13 999-0497 Nut M6-1 nylon insert lock stainless steel 8
14 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
15 272-1624 Bolt M10-1.5 x 40mm hex 2
16 999-1329 Screw M6-1 x 100mm hex head 1
17 172-2001 Hair cotter pin 2
18 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 2
19 172-0345 Terminal stud 2
20 999-1948 Nut 1/4-20 wing lock 1
21 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
22 999-0430 Nut 5/16-18 hex jam plain finish 6
23 172-9497 Flanged bearing 3
24 172-9388 Flanged bearing 2
25 172-0072 Bushing 3
26 272-0416 Rubber wheel (OBSOLETE) 1
27 172-8921 Actuator 1
28 172-2150 Knob 2
29 172-8926 Blade 2
30 172-9300 36V motor 2
31 172-8927 Belt idler 2
32 172-8928 Poly-v sheave 2
33 172-8929 Right belt guard 1
34 172-8930 Left belt guard 1
35 172-8931 Poly V belt 1
36 172-8932 Poly-V belt 1
37 172-8941 Compression spring 1
38 172-8944 Bushing 1
39 172-8952 Spring housing 1
40 172-8953 Compression spring 1
41 172-8954 Nut retainer 1
42 172-8955 Nut retainer 1
43 272-1843 Flanged bearing 3
44 172-0103 Electrical mount 2
45 172-3360 Ring pin 1/2 x 1-1/4 2
46 172-8964 Terminal insulator 2
47 997-2511 Cotter pin 1
49 372-1629 Screw 1/2-13 x 1 1/2 hex head stainless steel 3
50 272-1562 Screw 1/4-20 x 3/5 pan head thread forming 8
51 172-4940 Stud stainless steel 2
52 172-3182 Nozzle body 1
53 172-1811 Panel clip 14
54 272-0417 Link arm pivot weldment (OBSOLETE) 1
55 272-0418 Sweep exterior deck weldment 1
56 272-0419 Extractor deck skirt 2
57 272-0420 Gas spring 2
58 172-3368 Cotterless hitch pin 1
59 272-0421 Extractor hopper weldment 1
60 272-0422 Shoe weldment (OBSOLETE) 2
61 272-0423 Strap 2
62 272-0424 Offset link arm 2
63 272-0425 Shoe support weldment (OBSOLETE) 1
64 272-0426 Nozzle bracket weldment (OBSOLETE) 1
65 172-0548 Washer 17/64 x 47/64 flat stainless steel 2
66 172-3373 Idler end assembly 2 (includes 77-81)
67 172-2503 Tank leveler 3
68 172-8933 Drive end assembly 2 (includes 82-89)
71 172-9040 Wheel 1
73 272-0427 Spray nozzle (OBSOLETE) 1
74 172-8969 Nylon soft scrubbing brush - CYLINDRICAL 2
75 272-0428 Spray nozzle #7.5 1
76 272-0429 Nozzle body (OBSOLETE) 1
77 172-4656 Ball bearing 1
78 172-2150 Knob 1
79 272-2170 Idler bearing plate 1
80 172-1838 Hub 1
81 172-1837 Bearing washer 1
82 181-0003 Screw 1/4-20 x 1/2 socket set lock 2
83 172-8956 Square keyway 1
84 172-4656 Ball bearing 2
85 172-8957 Spacer 1
86 172-8959 Poly-v sheave 1
87 272-2169 Bearing plate 1
88 272-9347 Spindle 1
89 172-1837 Bearing washer 1
N/S 172-8922 Plastic drive nut 1
N/S 172-1033 F.E. Bearing 1
N/S 172-9303 Brush cap assembly (OBSOLETE) 1
N/S 172-9304 Carbon brush (sold individually) 4
N/S 172-1816 Brush cover cap (OBSOLETE) 4
N/S 172-3367 Brush motor harness 1
