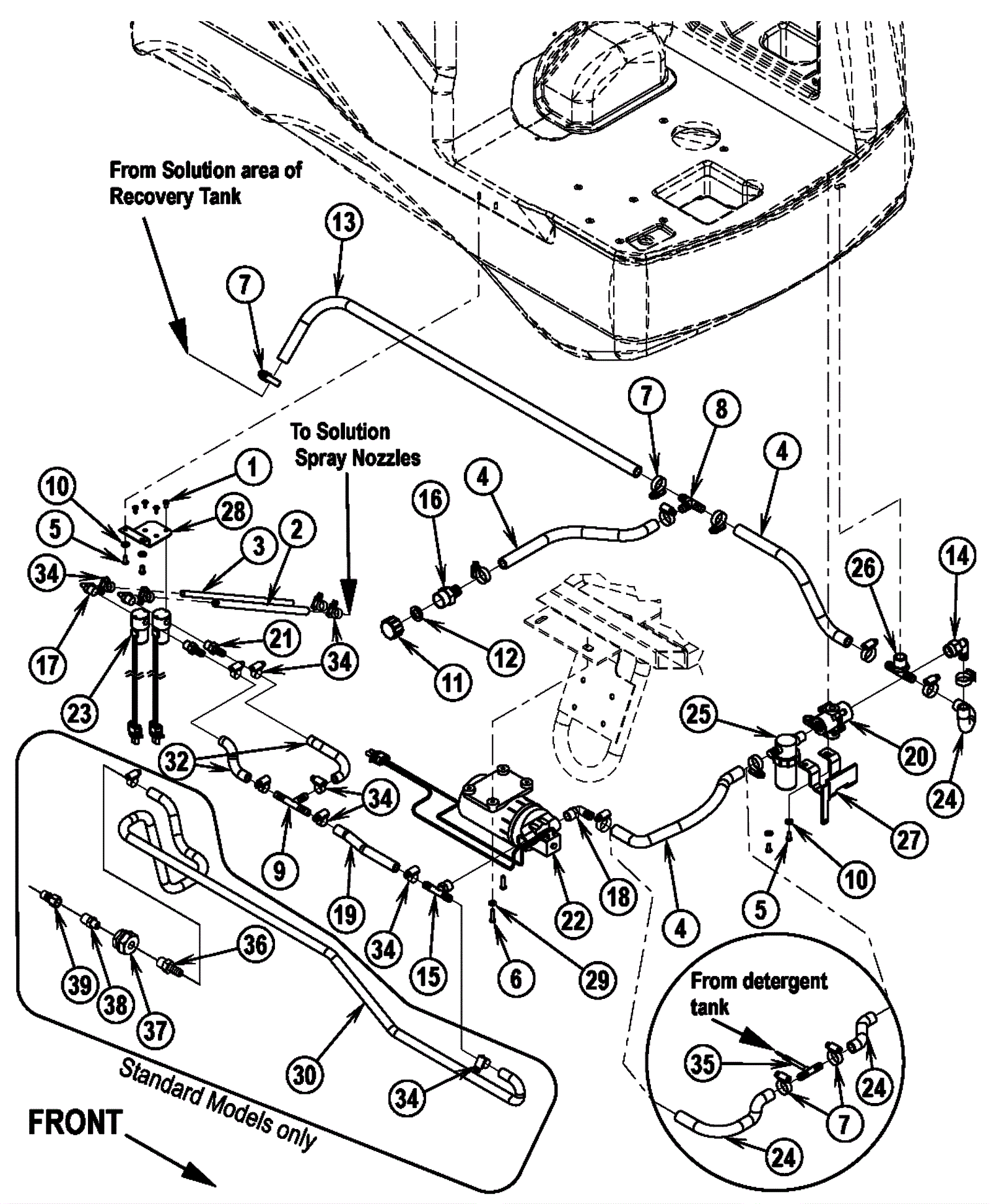

Solution Pump Assembly

#PartDescription ReqNotesAvailability
1 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 4
2 172-1350 10 inch hose 1
3 181-1108 Solution feed hose 1
4 172-2815 Main solution hose 3 (qty of 2 on EDS models)
5 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 4
6 999-0520 Screw 10-24 x 1 pan head phillips stainless steel 2
7 172-8494 #6 hose clamp SAE 10 (qty of 12 on EDS models)
8 172-4114 Tee barb 1
9 172-9009 Tee barb 1
10 999-0998 Washer #10 flat stainless steel 4
11 172-0254 Nylon pipe cap 1
12 172-0197 Rubber washer 1
13 272-1041 Hose machines 1
14 172-2103 Elbow barb 1
15a 172-8994 Barb Tee 3/8X3/8 NPT 1 (standard models only)
15b 172-2734 Elbow barb 27/64 x 3/8 1 (EDS models only)
16 172-9033 Adapter barb 1/2 x 3/4 1
17 172-1337 90 degree barb 1/4 2
18 172-4056 90 degree barbed elbow 1
19 181-0258 Vinyl tube 1
20 172-2105 Manual solution valve 1
21 172-0298 Barb fitting 1/4 x 3/8 2
22 172-1855 36V pump 1
23 272-0454 Solenoid valve 2
24 172-2327 Wire reinforced clear hose (OBSOLETE) 1 (qty of 3 on EDS models)
25 272-0455 Strainer 1
26 172-3435 Tee barb 1
27 272-1460 Water valve bracket 1
28 272-0456 Solenoid mount bracket (OBSOLETE) 1
29 999-1862 Washer #10 flat SAE stainless steel 2
30 172-3509 Spiral hose 3/8 x 63 inches 1 (standard models only)
32 991-1409 Clear vinyl tubing 9/16 OD x 3/8 ID inch (sold by the inch) 2
34 170-5169 Hose clamp SAE #4 12 (qty of 10 on EDS models)
35a 272-8135 Tee assembly 1 (EDS models only)
35b 372-1628 Reducer barb 1
35c N/A Not available 1 (tee barb)
35d 472-6889 HOSE CHEM RESISTANT 1
36 172-0298 Barb fitting 1/4 x 3/8 1 (standard models only)
37 272-0406 Adapter bulk head 1/4 1 (standard models only)
38 272-0405 Nipple 1/4 to 1/8 1 (standard models only)
39 170-9289 Quick disconnect coupling 1 (standard models only)
