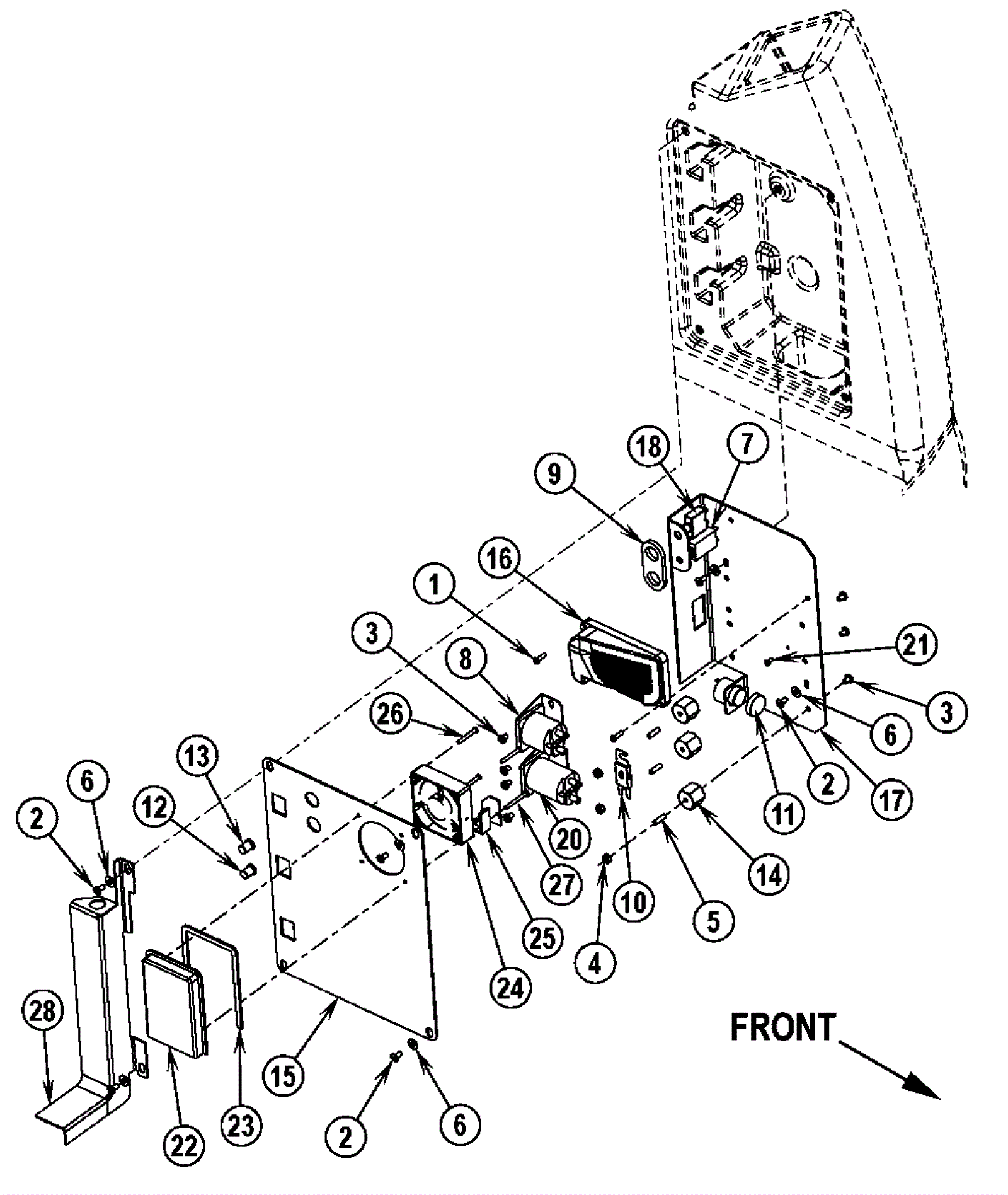

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
|
2 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
6 |
|
|
3 |
999-0509
|
Screw 1/4-20 x 3/8 pan head phillips zinc plated |
7 |
|
|
4 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
|
5 |
172-0345
|
Terminal stud |
3 |
|
|
6 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
7 |
172-2160
|
10amp circuit breaker |
1 |
|
|
8 |
272-8184
|
36V 100amp contactor |
1 |
|
|
9 |
172-8826
|
Gasket |
1 |
|
|
10 |
172-8836
|
150amp fuse |
1 |
|
|
11 |
172-8839
|
Backup alarm |
1 |
|
|
12 |
172-0231
|
Reset button boot |
1 |
|
|
13 |
172-0232
|
Clear boot cap |
1 |
|
|
14 |
172-0103
|
Electrical mount |
3 |
|
|
15 |
272-0415
|
Electrical cover (OBSOLETE) |
1 |
|
|
16 |
272-0409
|
Controller |
1 |
|
|
17 |
172-3312
|
Electrical panel (OBSOLETE) |
1 |
|
|
18 |
272-2581
|
45amp circuit breaker (OBSOLETE) |
1 |
|
|
20 |
272-8183
|
36V 200amp contactor |
1 |
|
|
21 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
1 |
|
|
22 |
272-0410
|
Fan cover |
1 |
|
|
23 |
272-0411
|
Gasket |
1 |
|
|
24 |
272-0412
|
Fan assembly (OBSOLETE) |
1 |
|
|
25 |
272-0413
|
Board holder |
1 |
|
|
26 |
172-2034
|
Screw 8-15 x 1 1/2 pan phil plastite |
3 |
|
|
27 |
272-0414
|
Screw 8-15 x 1 3/4 pan phillips plastic |
1 |
|
|
28 |
272-5409
|
Harness guide weldment |
1 |
(detergent injection models only) |
|
