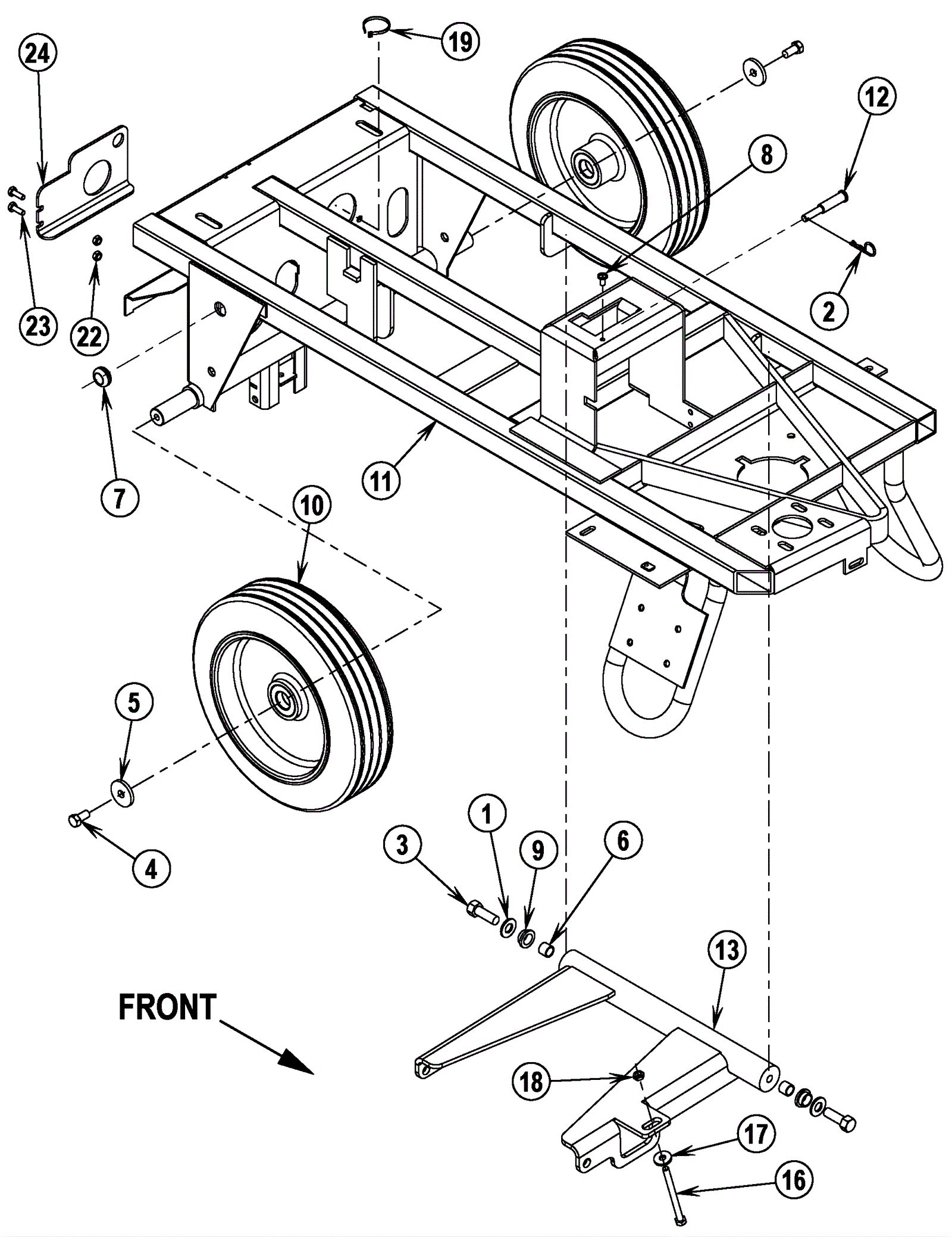

Chassis Assembly

#PartDescription ReqNotesAvailability
1 999-0114 Washer 1/2 SAE flat 2
2 172-2001 Hair cotter pin 1
3 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread 2
4 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock 2
5 272-1606 Washer flat 2
6 172-0024 Bushing 2
7 181-0397 Grommet 1
8 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 1
9 272-1843 Flanged bearing 2
10a 172-3283 Wheel and bearing assembly 2 (each assembly includes 2 bearings)
10b 272-3931 Ball bearing 4
11 172-3285 Chassis weldment (OBSOLETE) 1
12 172-3286 Actuator pin 1
13 272-0404 Arm weldment linkage 1
16 272-5393 Screw 5/16-18 x 4 hex head full thread 1
17 172-2067 Washer 11/32 x 1/8 flat 1
18 999-1019 Nut 5/16-18 hex jam stainless steel 1
22 999-0190 Nut 1/4-20 hex plain finish 2
23 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 2
24 272-0407 Accessory bracket (OBSOLETE) 1
N/S 997-2102 Cable tie 9
