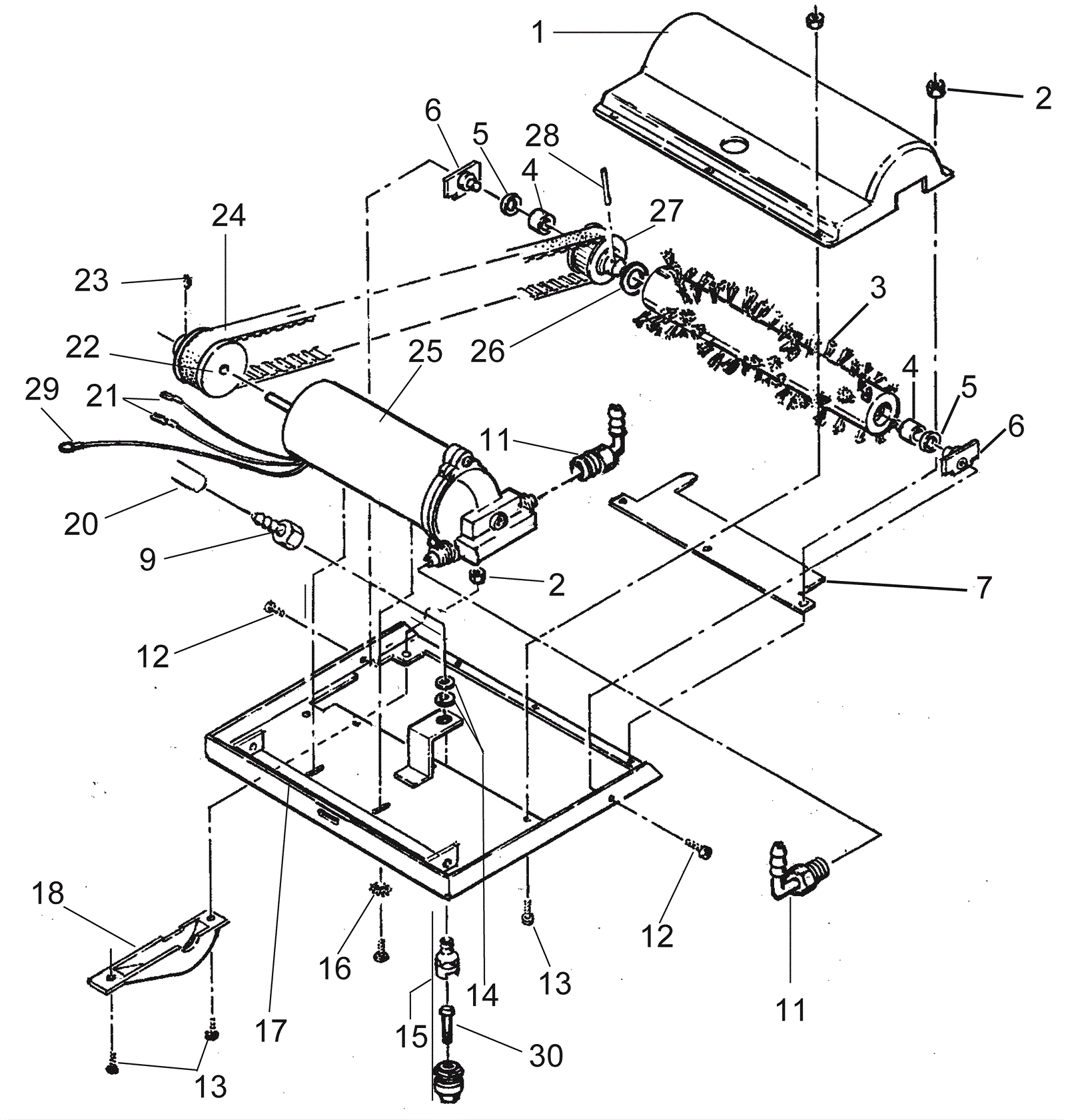

IMAGE Brush and Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-4649 Brush cover (OBSOLETE) $216.28 1 usually ships 1-5 days
2 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 7 ships same day
3 170-4650 Carpet brush (OBSOLETE) $246.07 1 usually ships 17-28 days
4 170-0362 Radial ball bearing $23.08 2 usually ships 12-17 days
5 170-0700 Seal (OBSOLETE) $22.48 2 usually ships 17-28 days
6 170-4651 Brush pivot (OBSOLETE) $22.58 2 usually ships 1-5 days
7 170-4652 Splash guard (OBSOLETE) $7.65 1 usually ships 1-5 days
9 170-1350 Hose barb 3/8 x 1/4 inch $9.27 1 usually ships 17-28 days
11 170-1457 Elbow barb 3/8 x 3/8 inch $10.85 2 usually ships 17-28 days
12 170-8223 Screw 10-24 x 1/4 pan head $10.52 2 usually ships 1-5 days
13 170-4653 Screw 6-32 x 3/8 $10.52 7 usually ships 1-5 days
14 170-6073 Washer stainless steel $9.27 2 usually ships 17-28 days
15 170-3700 Spray nozzle (OBSOLETE) $67.11 1 usually ships 17-28 days
16 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
17 170-4654 Brush / pump frame (OBSOLETE) $386.01 1 usually ships 1-5 days
18 170-4655 Pulley guard (OBSOLETE) $7.65 1 usually ships 1-5 days
20 170-6064 14 inch solution hose $9.13 1 usually ships 1-5 days
21 170-6013 1/4 terminal $4.00 2 usually ships 1-5 days
22 170-4656 Timing pulley (OBSOLETE) $19.25 1 usually ships 1-5 days
23 170-4988 Screw 8 - 32 x 3/16 allen $9.27 2 usually ships 1-5 days
24 170-6211 Timing belt $23.61 1 usually ships 1-5 days
25 170-6210 Brush unit (OBSOLETE) $529.32 1 usually ships 1-5 days
26 170-0701 Washer wave $11.69 1 usually ships 17-28 days
27 N/A Not available Call for price 1 usually ships 3-26 days
28 170-0702 Roll pin 3/16 x 11/2 $10.52 1 usually ships 1-5 days
29 170-6014 Terminal clip $2.35 1 usually ships 12-17 days
30 170-3701 Spray jet strainer $17.06 1 usually ships 1-5 days
