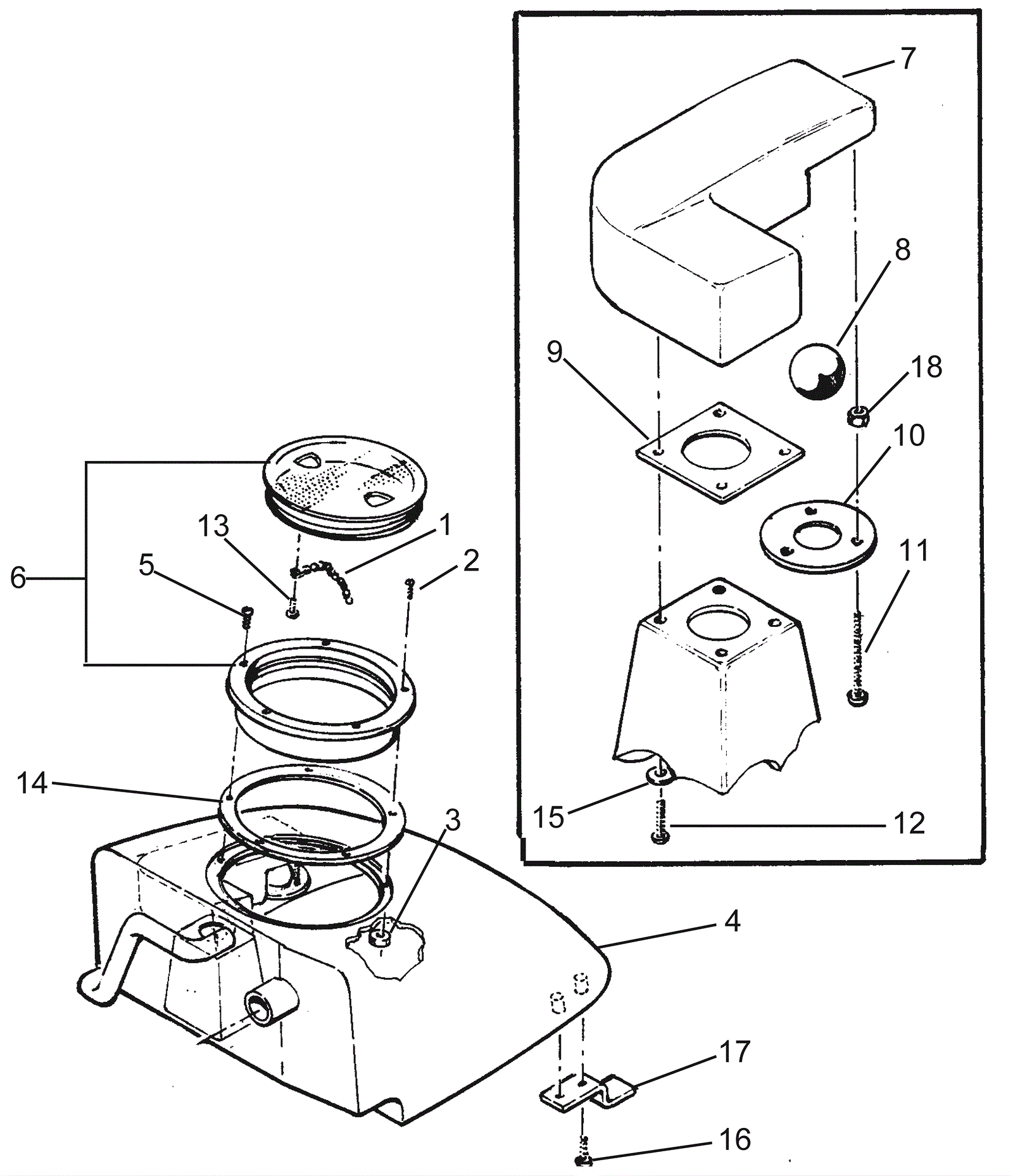

IMAGE Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-2474 8 inch chain $10.85 1 usually ships 17-28 days
2 170-4686 Screw 10-24 x 1 1/4 $10.52 1 usually ships 1-5 days
3 170-3757 Keps nut 10-24 $10.52 1 usually ships 1-5 days
4 N/A Not available Call for price 1 (Recovery tank) usually ships 3-26 days
5 272-8907 Screw #10-16 x 1 (OBSOLETE) $10.52 4 usually ships 1-5 days
6 170-4688 Recovery lid $147.95 1 usually ships 1-5 days
7 170-4689 Vacuum chamber (OBSOLETE) $215.93 1 usually ships 1-5 days
8 170-4690 Float shut off ball (OBSOLETE) $12.89 1 usually ships 1-5 days
9 170-4691 Vacuum chamber gasket (OBSOLETE) $7.52 1 usually ships 1-5 days
10 170-4692 Flat retainer (OBSOLETE) $16.08 1 usually ships 1-5 days
11 170-4693 Screw 10-32 x 3 inch pan head stainless steel $10.52 3 usually ships 1-5 days
12 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 4 ships same day
13 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting $0.99 1 ships same day
14 170-6212 Gasket lid $48.18 1 usually ships 1-5 days
15 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
16 170-4461 Screw 10-24 x 3/8 stainless steel $1.21 2 usually ships 1-5 days
17 170-4694 Retaining bracket (OBSOLETE) $11.76 1 usually ships 1-5 days
18 999-0460 Nut 10-32 hex $0.99 1 ships same day
