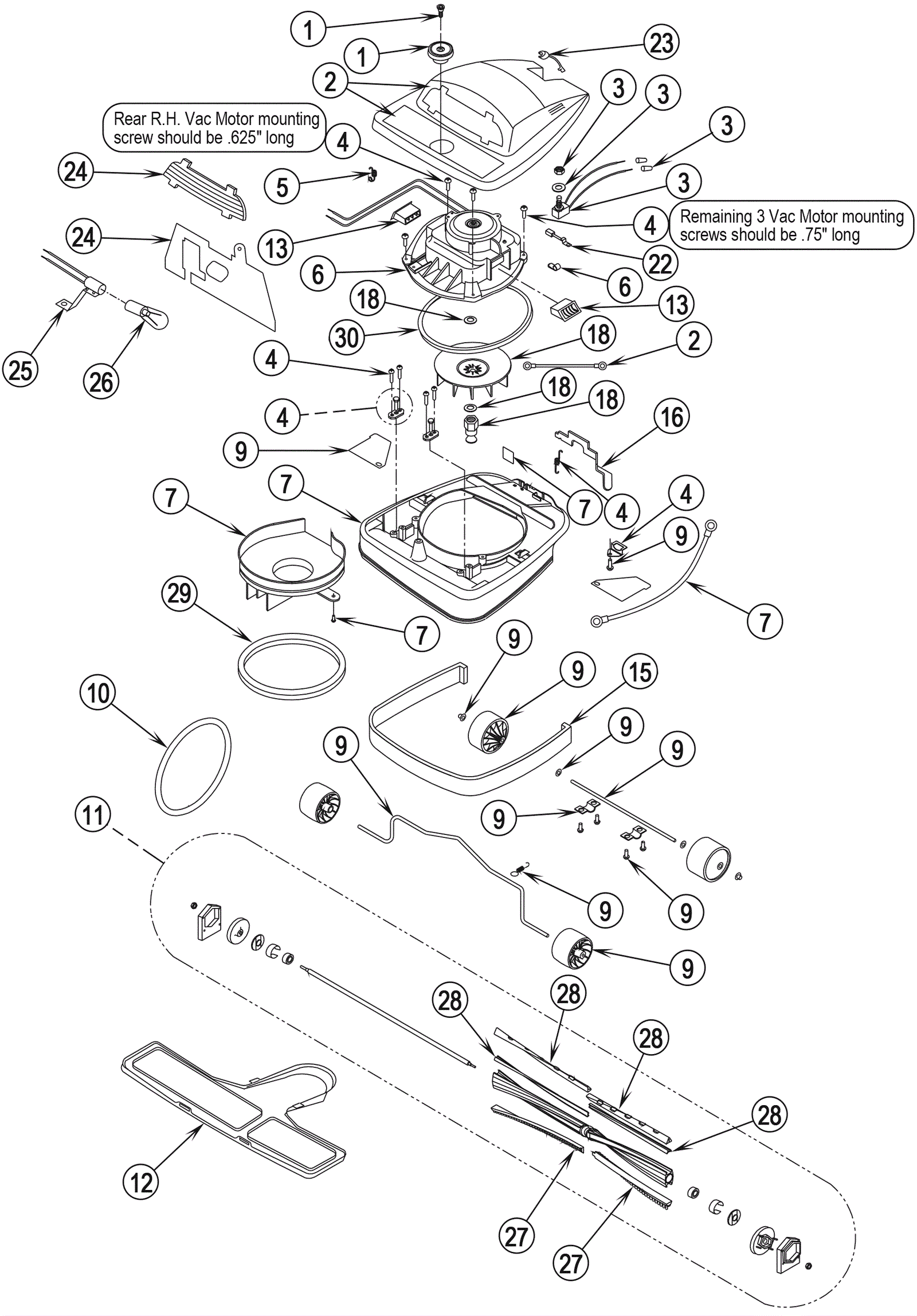

RELIAVAC 12HP Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-6254 Brush height knob assembly $13.78 1 usually ships 13-18 days
2 272-6279 Hood assembly $28.94 1 usually ships 1-5 days
3 272-6255 Switch assembly $13.78 1 usually ships 13-18 days
4 272-6256 Base hardware kit $12.11 1 ships same day
5 993-0819 SPRING $1.50 2 usually ships 1-5 days
6 182-0009 120V vacuum motor assembly $113.31 1 (includes 30) ships same day
7 272-6258 Base assembly (gray) $91.31 1 (includes 15) usually ships 13-18 days
9 272-6259 Wheel assembly $18.93 1 usually ships 13-18 days
10 372-1148 Reliavac superbelt (pkg of 5) $68.31 1 usually ships 13-18 days
11 172-8042 12 inch disturbulator assembly $122.98 1 usually ships 13-18 days
12 172-8468 12 inch bottom plate assembly $48.17 1 usually ships 1-5 days
13 272-6260 Air duct assembly $15.61 1 usually ships 13-18 days
15 182-0141 12 inch bumper $5.50 1 ships same day
16 182-0023 Foot pedal $4.71 1 usually ships 10-16 days
18 272-9477 Pulley and fan kit (green) $13.49 1 (includes 29) ships same day
22 372-3732 Carbon brush motor $17.17 2 usually ships 13-18 days
23 272-0592 18/3 power cord 50 foot (yellow) $51.96 1 usually ships 13-18 days
24 272-6281 Light lens kit $15.61 1 usually ships 13-18 days
25 372-3733 Headlamp socket $14.41 1 usually ships 13-18 days
26 992-9513 15watt double bulb $1.34 1 usually ships 24-37 days
27 182-0362 12 inch bristle strip set $11.57 1 usually ships 13-18 days
28 272-6280 12 inch beater bar assembly $15.17 1 ships same day
29 372-3736 Motor seal gasket $15.17 1 usually ships 13-18 days
30 272-9478 Motor seal gasket $11.54 1 usually ships 1-5 days
N/S 182-0784 12 inch magnet strip $13.78 1 ships same day
N/S 272-1682 Upright attachment kit (OBSOLETE) $97.35 1 usually ships 13-18 days
