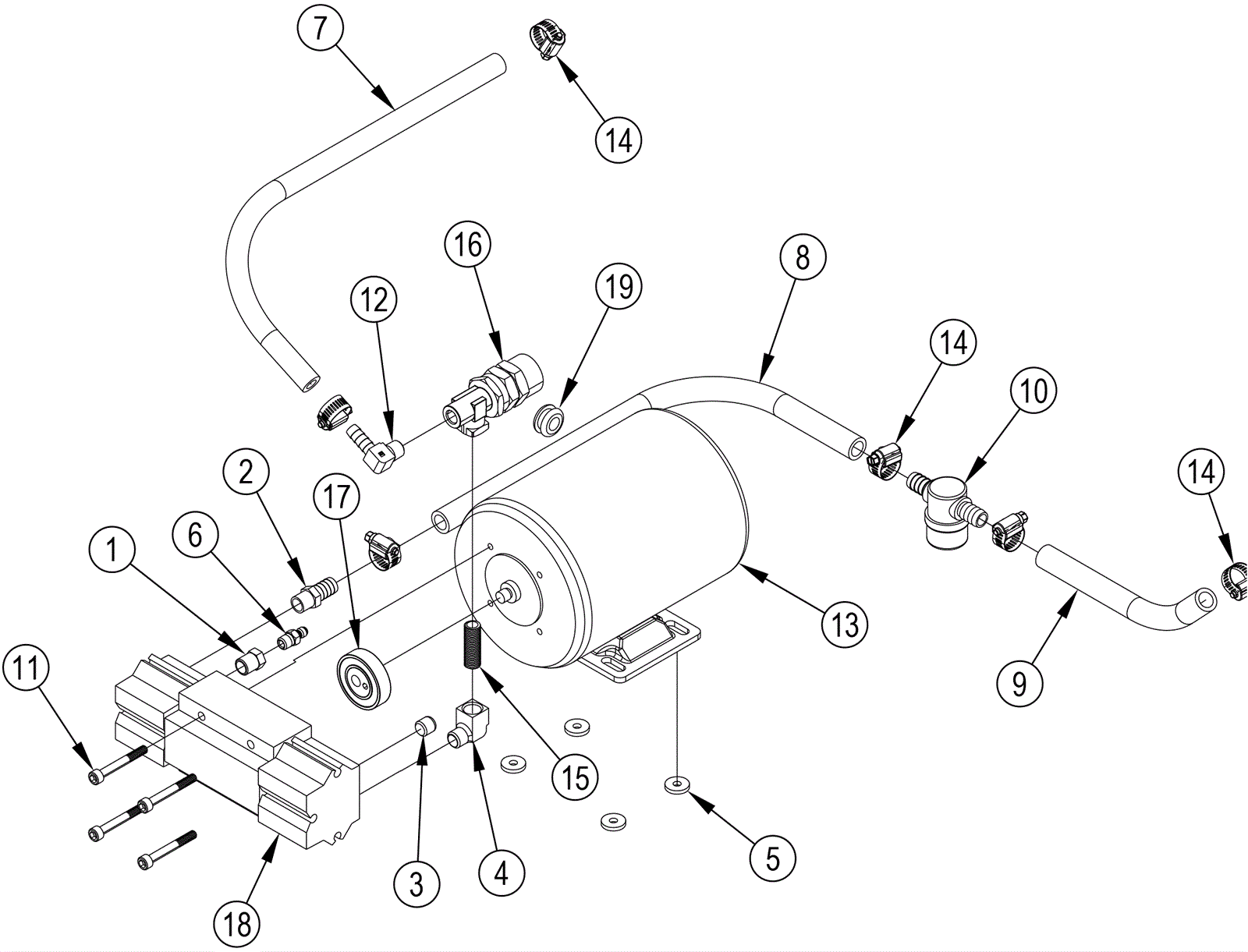

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
170-5417
|
Bushing |
1 |
(included in KIT3 and KIT4) |
|
2 |
209-0449
|
Hose barb |
1 |
(included in KIT3 and KIT4) |
|
3 |
209-0614
|
1/4 inch plug |
1 |
(included in KIT3 and KIT4) |
|
4 |
209-0623
|
90 degree elbow 1/4 inch brass |
1 |
(included in KIT4) |
|
5 |
209-0258
|
Washer |
4 |
|
|
6 |
209-0099
|
Male quick disconnect |
1 |
(included in KIT3 and KIT4) |
|
7 |
372-3720
|
By-pass hose |
1 |
(included in KIT2) |
|
8 |
209-2207
|
HOSE INLET 1/2 X 15 PUMP/ |
1 |
(included in KIT2) |
|
9 |
372-3721
|
Hose inlet |
1 |
(included in KIT2) |
|
10 |
172-2454
|
In-line filter |
1 |
|
|
11 |
209-0615
|
Screw 1/4-20 x 2 cap |
4 |
(included in KIT4) |
|
12 |
209-0627
|
90 degree hose barb 3/8 inch brass |
1 |
(included in KIT4) |
|
13 |
172-9331
|
Pump motor kit |
1 |
(included in KIT5) |
|
14 |
209-0604
|
Hose clamp |
6 |
(included in KIT1) |
|
15 |
209-0293
|
Pipe |
1 |
(included in KIT3 and KIT4) |
|
16 |
172-2455
|
Pressure regulator valve 600psi |
1 |
(included in KIT4) |
|
17 |
209-6164
|
Cam/bearing assembly |
1 |
(included in KIT4 and KIT5) |
|
18 |
209-0616
|
Pump |
1 |
(included in KIT4) |
|
19 |
172-7404
|
Grommet |
1 |
(included in KIT5) (if pump motor wires cannot be repaired replace the motor with 172-9331) (all machines after SN 4000095481 have new grommet 172-7404 installed as standard equipment) |
|
KIT1 |
172-2458
|
Clamp kit |
1 |
(includes 14) |
|
KIT2 |
172-2459
|
Hose kit |
1 |
(includes 7-9) |
|
KIT3 |
172-2460
|
Quick disconnect kit |
1 |
(includes 1-3, 6, 15) |
|
KIT4 |
272-7244
|
300PSI pump with fittings NO MOTOR |
1 |
(includes 1-4, 6, 11-12, 15-18) |
|
KIT5 |
172-9331
|
Pump motor kit |
1 |
(includes 13, 17, 19) |
|
