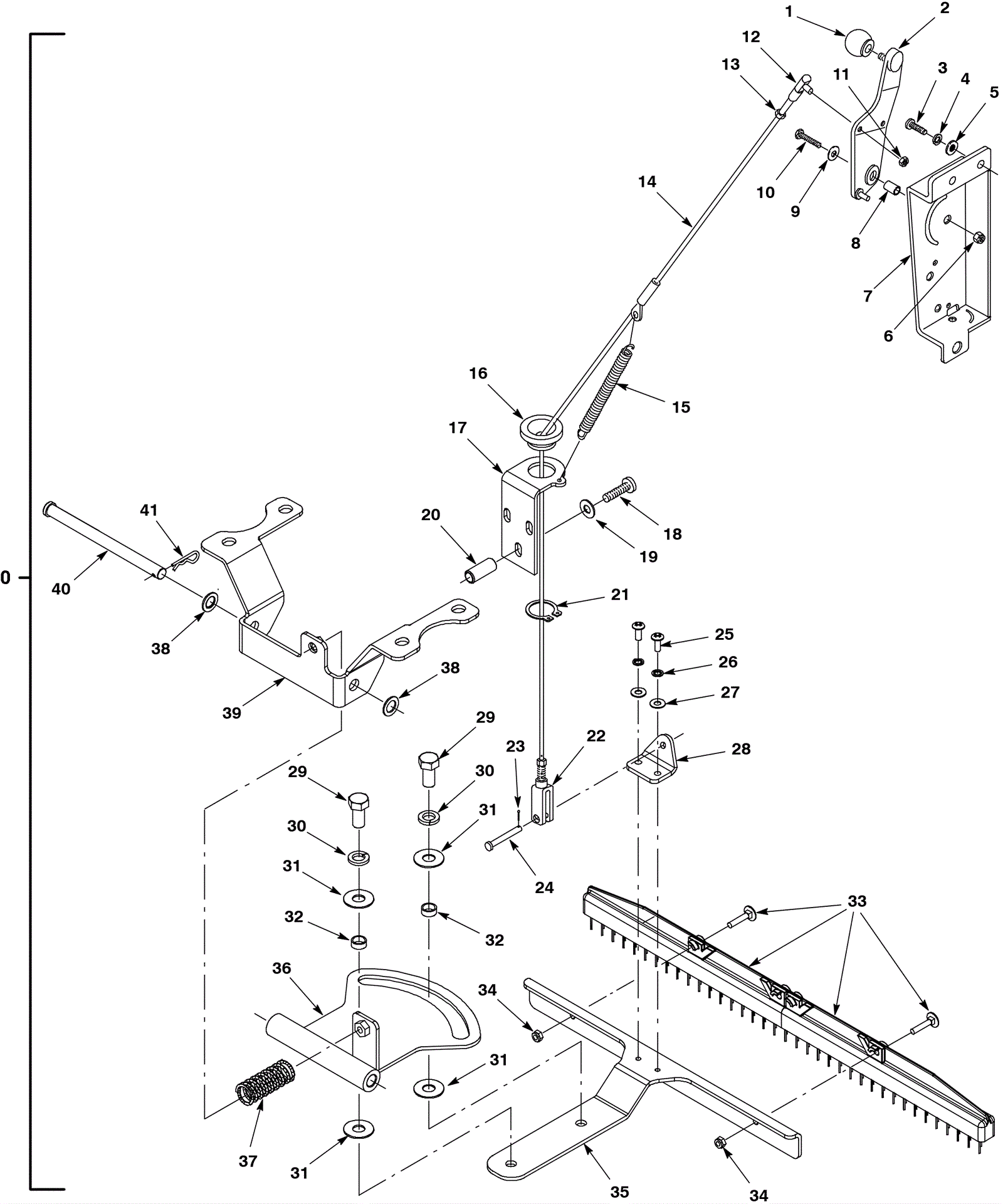

Carpet Rake Assembly

#PartDescription ReqNotesAvailability
0 475-2826 CARPET RAKE KIT 1 (includes 1-41)
1 175-5879 Squeegee lever knob (OBSOLETE) 1
2 175-8730 Squeegee lever 1
3 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 3
4 999-0406 Washer 5/16 internal star lock zinc plated 3
5 999-0024 Washer 5/16 flat stainless steel 3
6 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
7 175-8731 Squeegee lever bracket 1
8 175-5070 Sleeved bearing 1
9 999-0617 Washer 3/8 x 1 flat stainless steel 1
10 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 1
11 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel 1
12 175-8732 Ball joint 1
13 999-0718 Nut 1/4-28 hex jam zinc plated 1
14 475-1908 CABLE, LIFT, SQGE 1
15 175-8734 Squeegee lever spring 1
16 175-8735 Cable bushing 1
17 475-0990 BRACKET, CABLE GUIDE 1
18 175-9822 Screw M6 x 1 x 40 phillip truss 3
19 999-0016 Washer 1/4 flat plain finish 3
20 175-3157 Sleeve .318 x .437 x 1.06 inch 3
21 175-3008 Retaining ring 1
22 175-8737 Adjusment yoke 1
23 175-3272 Cotter pin 1
24 175-8738 Clevis pin 1
25 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
26 175-4544 Washer M6 locking 2
27 999-0016 Washer 1/4 flat plain finish 2
28 475-1040 BRACKET, CABLE, SQGE LIFT 1
29 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 2
30 999-0126 Washer 1/2 split lock 2
31 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
32 175-2743 Sleeved bushing 2
33 475-2236 RAKE, CARPET, COMBO 1
34 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
35 475-1651 BRACKET, RAKE, PIVOT 1
36 475-1966 PIVOT WLDT, LIFT, RAKE 1
37 175-2199 Compression spring 1
38 175-1825 Washer 2
39 475-1597 BRACKET, MOUNT, RAKE 1
40 475-1795 PIN, CLEVIS, 0.50D X 6.75L 1
41 175-4331 Cotter hair pin 1
