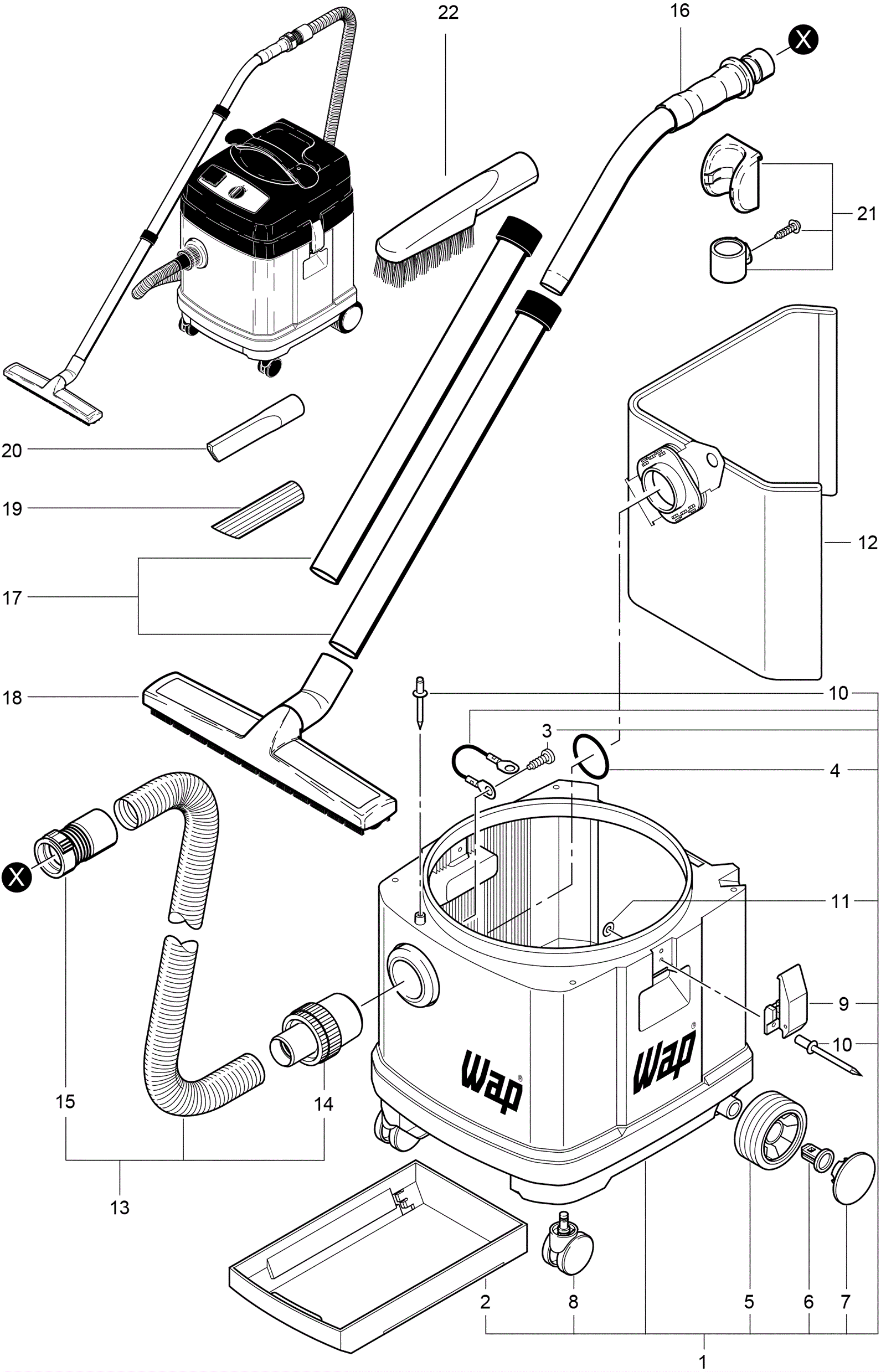

SQ550 Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 372-3673 Container (OBSOLETE) Call for price 1 (inlcudes 2-11) usually ships 16-41 days
2 372-3674 Drawer (OBSOLETE) Call for price 1 usually ships 16-41 days
3 372-3675 Nozzle screw (OBSOLETE) Call for price 1 usually ships 16-41 days
4 170-5832 Packing ring sq $13.03 1 usually ships 16-41 days
5 170-6233 Wheel (OBSOLETE) $9.00 1 usually ships 16-41 days
6 170-5833 Retaining pin $12.18 1 usually ships 1-5 days
7 170-5834 Wheel cap $8.00 1 usually ships 1-5 days
8 170-6232 Swivel caster $14.92 1 usually ships 16-41 days
9 170-7910 Clamp $91.45 1 usually ships 4-15 days
10 372-3676 Blind rivet $5.07 2 usually ships 16-41 days
11 372-3677 Alto washer $1.94 1 usually ships 16-41 days
12 372-3678 Filter bags (OBSOLETE) $126.66 1 usually ships 16-41 days
13a 572-3992 Suction hose $111.18 1 (includes 14-15) (SQ550-01 and SQ550-11) usually ships 16-41 days
13b 472-0192 HOSE D27X3500 AS WITH TOOL ADA $98.09 1 (includes 14-15) (SQ550-21 and SQ550-31) usually ships 16-41 days
14a 170-5835 Hose swivel $11.40 1 (SQ550-01 and SQ550-11) usually ships 16-41 days
14b 372-3681 Hose sleeve $22.68 1 (SQ550-21 and SQ550-31) usually ships 16-41 days
15a 372-3679 Hose socket $22.73 1 (SQ550-01 and SQ550-11) usually ships 16-41 days
15b 372-3682 Hose socket (OBSOLETE) Call for price 1 (SQ550-21 and SQ550-31) usually ships 16-41 days
16 372-3680 Curved wand $78.93 1 (SQ550-01 and SQ550-11) usually ships 16-41 days
17 572-3997 Suction tube $49.66 1 (SQ550-01 and SQ550-11) usually ships 16-41 days
18 372-1318 Floor nozzle $73.91 1 (SQ550-01 and SQ550-11) usually ships 16-41 days
19 572-4008 Rubber nozzle $18.35 1 (SQ550-01 and SQ550-11) usually ships 16-41 days
20 170-3625 Crevice tool 12in $8.79 1 (SQ550-01 and SQ550-11) usually ships 1-5 days
21 170-5838 Wand bracket set (OBSOLETE) $24.73 1 (SQ550-01 and SQ550-11) usually ships 1-5 days
22 572-4001 Brush nozzle $23.04 1 (SQ550-01 and SQ550-11) usually ships 16-41 days
