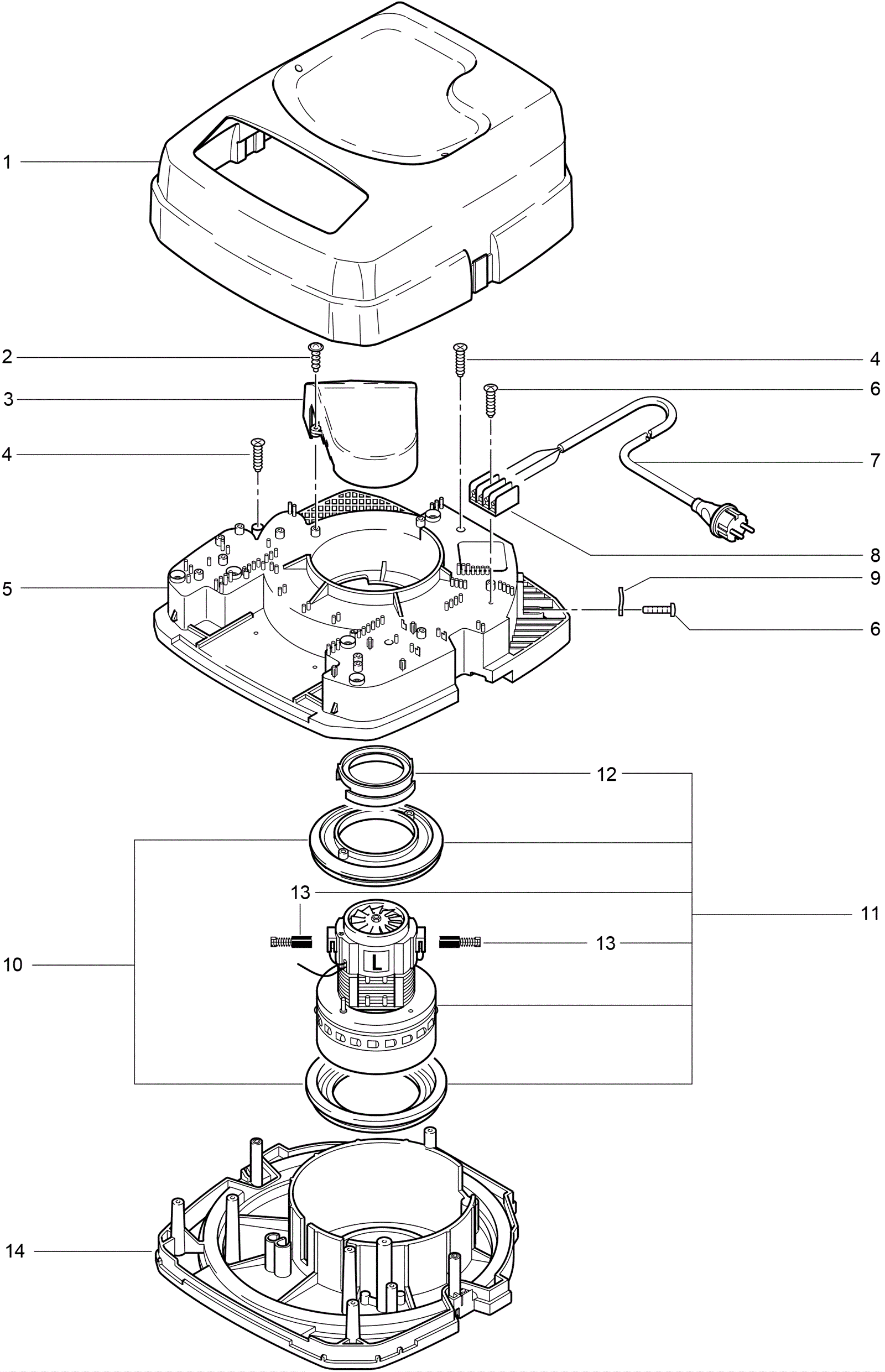

SQ550 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-5852 Cover sq $106.90 1 usually ships 1-5 days
2 372-3659 Screw $12.89 1 usually ships 13-18 days
3 170-5844 Air diverter sq $50.05 1 usually ships 13-18 days
4 170-3692 Screw 50mm x 20mm $6.15 2 usually ships 1-5 days
5 170-5842 Upper housing sq $92.22 1 usually ships 13-18 days
6 170-3694 Screw 35mm x18mm $13.78 2 usually ships 1-5 days
7 372-3660 Power cable (OBSOLETE) Call for price 1 (230V) usually ships 13-18 days
8 170-3695 Terminal block $11.39 1 usually ships 13-18 days
9 372-3661 Strain relief $6.51 1 usually ships 13-18 days
10a 372-1584 Motor seal $76.04 1 usually ships 13-18 days
10b 372-3662 Motor bearing (OBSOLETE) Call for price 1 usually ships 13-18 days
11a 372-3663 100V motor (OBSOLETE) Call for price 1 (includes 12-13) usually ships 13-18 days
11b 372-3664 Motor $588.65 1 (includes 12-13) usually ships 13-18 days
11c 170-6234 120V vacuum motor two stage $633.49 1 (includes 12-13) usually ships 13-18 days
11d 372-3665 220V suction motor $577.59 1 (includes 12-13) usually ships 13-18 days
12 472-0241 COLLAR $8.25 1 usually ships 13-18 days
13a 170-3349 Carbon brush (set of 2) $53.61 2 usually ships 13-18 days
13b 372-3667 L aero carbon brushes $94.91 2 usually ships 13-18 days
13c 372-3668 Carbon brushes c $136.64 2 usually ships 13-18 days
14 170-3690 Squeegee lower housing (OBSOLETE) $133.38 1 usually ships 13-18 days
