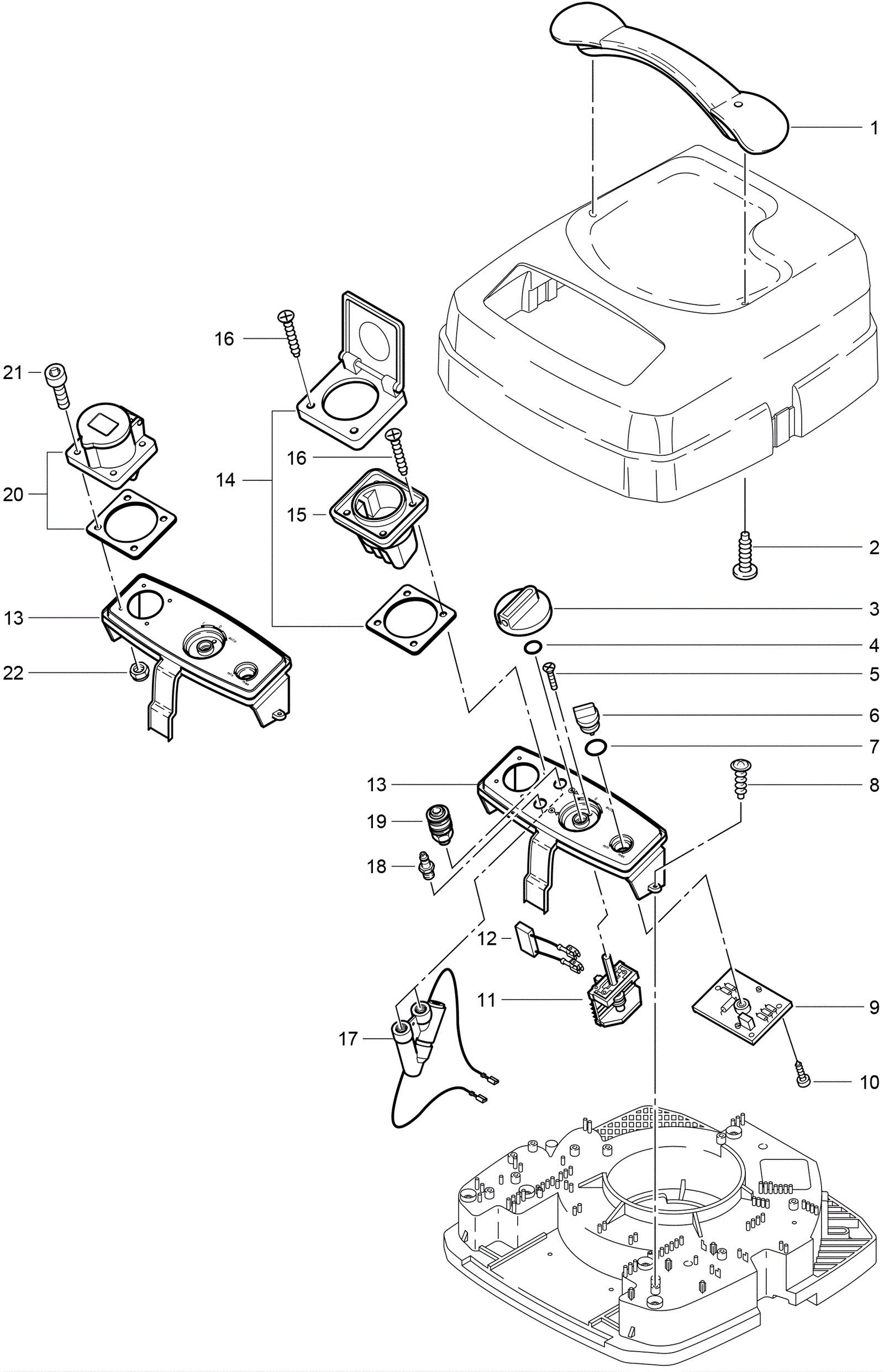

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
170-5851
|
Handle (OBSOLETE) |
$21.41
|
1 |
|
usually ships 16-41 days |
2 |
372-3646
|
Screw |
$1.94
|
1 |
|
usually ships 16-41 days |
3 |
170-5847
|
Turning knob |
$38.25
|
1 |
|
usually ships 16-41 days |
4 |
372-3469
|
O-ring |
$6.04
|
1 |
|
usually ships 16-41 days |
5 |
N/A
|
Not available |
Call for price
|
1 |
(screw M4 x 12mm countersunk) |
usually ships 3-26 days |
6 |
372-3647
|
Knob |
$5.00
|
1 |
(SQ550-31 and SQ550-21) |
usually ships 16-41 days |
7 |
472-0161
|
O-RING 21X1.5 |
$11.20
|
1 |
(SQ550-31 and SQ550-21) |
usually ships 16-41 days |
8 |
170-5850
|
Screw |
$5.20
|
1 |
|
usually ships 1-5 days |
9a |
372-3648
|
120V automatic start (OBSOLETE) |
Call for price
|
1 |
(SQ550-31) |
usually ships 16-41 days |
9b |
472-0165
|
AUTOMATIC ON/OFF SYS 2 KIT |
$229.02
|
1 |
(SQ550-31 and SQ550-21) |
usually ships 16-41 days |
10 |
372-3649
|
Sheet metal screw (OBSOLETE) |
Call for price
|
1 |
(SQ550-31 and SQ550-21) |
usually ships 16-41 days |
11a |
170-6231
|
Rotary switch (OBSOLETE) |
$38.50
|
1 |
(SQ550-01 and SQ550-11) |
usually ships 16-41 days |
11b |
372-3650
|
Switch |
$34.84
|
1 |
(SQ550-31 and SQ550-21) |
usually ships 16-41 days |
12 |
170-5845
|
Capacitor |
$8.58
|
1 |
(SQ550-01 and SQ550-11) |
ships same day |
13a |
372-3651
|
Control panel (OBSOLETE) |
Call for price
|
2 |
(SQ550-01) |
usually ships 16-41 days |
13b |
372-3658
|
Control panel (OBSOLETE) |
Call for price
|
2 |
(SQ550-11) |
usually ships 16-41 days |
13c |
372-3652
|
Control panel (OBSOLETE) |
Call for price
|
2 |
(SQ550-21) |
usually ships 16-41 days |
13d |
372-3653
|
Control panel (OBSOLETE) |
Call for price
|
2 |
(SQ550-31) |
usually ships 16-41 days |
14 |
472-0173
|
COVER CHASSIS KIT |
$46.22
|
1 |
(includes 15-16) |
usually ships 16-41 days |
15a |
170-3651
|
Socket plug |
$58.39
|
1 |
|
usually ships 1-5 days |
15b |
372-3654
|
Socket plug (OBSOLETE) |
Call for price
|
1 |
|
usually ships 16-41 days |
15c |
170-3651
|
Socket plug |
$58.39
|
1 |
|
usually ships 1-5 days |
16 |
170-3649
|
Screw |
$9.30
|
2 |
|
usually ships 1-5 days |
17 |
472-0170
|
FLOW SENSOR KIT |
$114.66
|
1 |
(SQ550-31) |
usually ships 16-41 days |
18 |
372-3655
|
Threaded nipple insert (OBSOLETE) |
Call for price
|
1 |
(SQ550-31) |
usually ships 16-41 days |
19 |
372-3656
|
Hose coupling |
$71.56
|
1 |
(SQ550-31) |
usually ships 16-41 days |
20 |
472-0188
|
OUTLET 2P AND PE 16A 110V |
$125.44
|
1 |
(SQ550-31) |
usually ships 16-41 days |
21 |
372-3657
|
Screw M5 x 20mm |
Call for price
|
1 |
(SQ550-31) |
usually ships 16-41 days |
22 |
999-0740
|
Nut M5-.8 hex stainless steel |
$0.99
|
1 |
(SQ550-31) |
ships same day |
