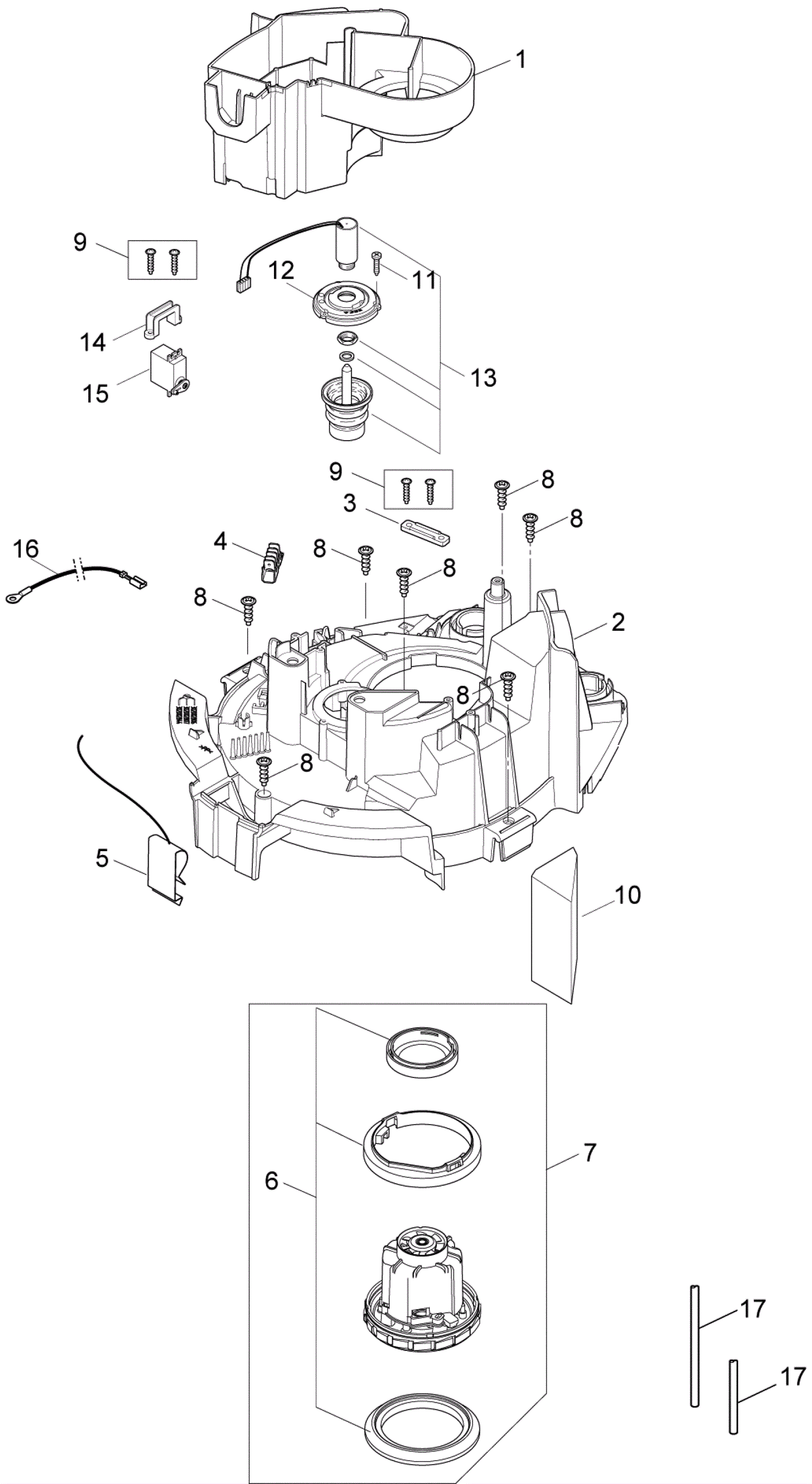

ATTIX 30 Motor XC Assembly

#PartDescriptionPriceReqNotesAvailability
1 372-1289 Air guide $24.11 1 usually ships 17-28 days
2 372-1296 Clamping plate $92.03 1 usually ships 17-28 days
3 372-1297 Strap $10.85 1 usually ships 17-28 days
4 372-1298 Distribution strip $10.85 1 usually ships 17-28 days
5 372-1299 Contact spring $35.60 1 usually ships 17-28 days
6 372-1300 Sealing kit $31.38 1 usually ships 17-28 days
7 372-3478 Turbine kit $313.98 1 (includes 6) usually ships 17-28 days
8 372-1301 Screw $8.15 7 usually ships 17-28 days
9 372-1302 Screw $7.73 4 usually ships 17-28 days
10 372-1290 Sound insulation outlet $37.05 1 usually ships 17-28 days
11 372-1291 Screw $18.38 3 usually ships 17-28 days
12 372-1292 110V solenoid valve $222.53 1 usually ships 17-28 days
13a 372-3479 230V magnet Call for price 1 usually ships 17-28 days
13b 372-1292 110V solenoid valve $222.53 1 usually ships 17-28 days
14 372-1293 Bracket $13.76 1 usually ships 17-28 days
15 372-1294 Motor $306.30 1 usually ships 17-28 days
16 372-3480 Wire $13.76 1 usually ships 17-28 days
17 372-1295 Hose $13.76 2 usually ships 17-28 days
