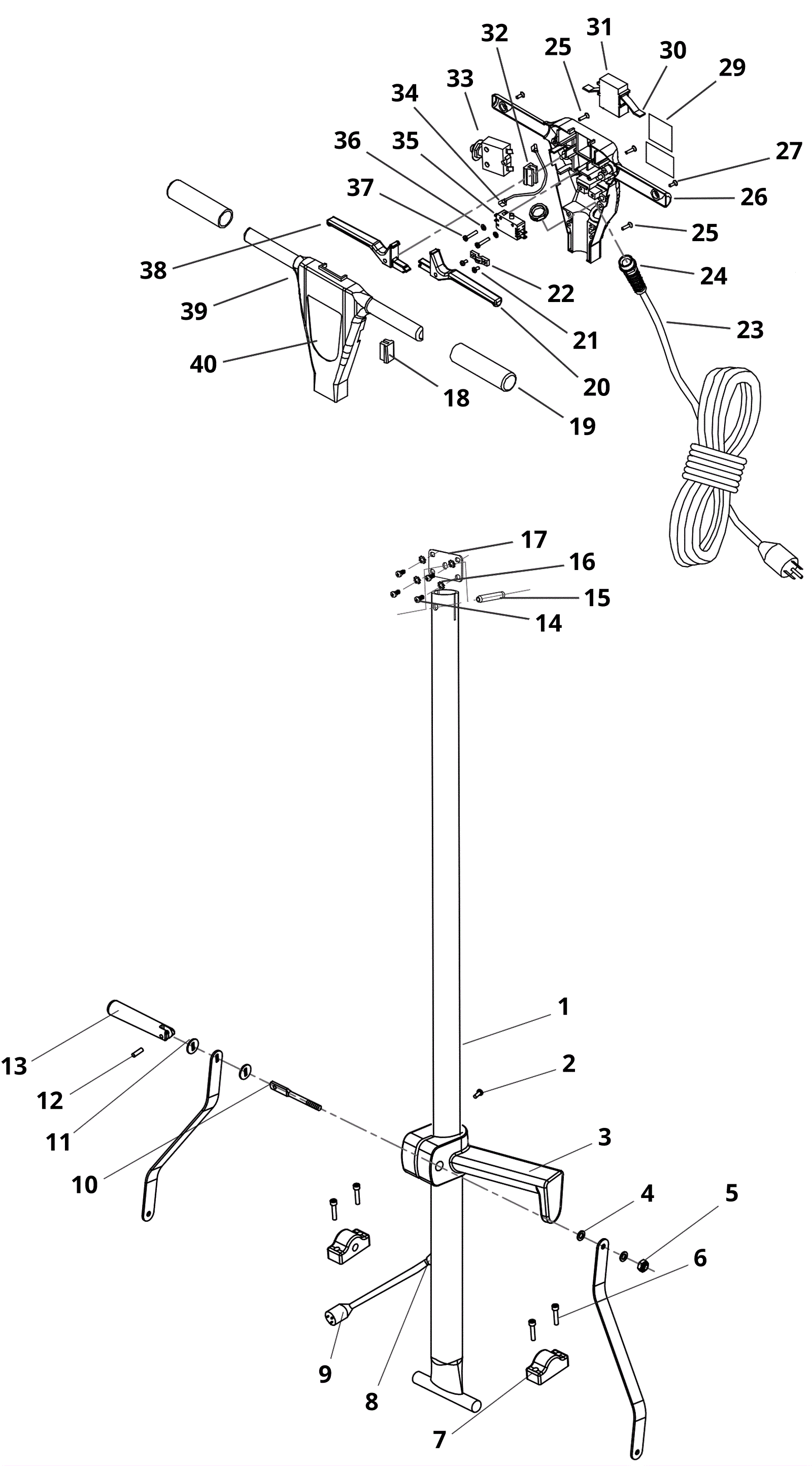

Handle Assembly

#PartDescription ReqNotesAvailability
1 240-5015 Handle tube 1
2 240-0237 Screw M6 x 10 hex socket 1
3 240-2130 Hook (high speed) 1
4 240-0205 Washer M10 plain 2
5 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
6 240-0241 Screw M6 x 25 hex socket 4
7 240-5441 Handle clamp block 2
8 240-5605 Grommet 1
9 240-1110 47 inch handle cord 1
10 240-0264 Handle release bolt (short) 1
11 240-0265 Handle release plain washer 2
12 240-0266 Handle release screw pin 1
13 240-0267 Handle release 1
14 999-1986 Screw M5-.8 x 14mm pan head phillips 4
15 240-1150 Pin 1
16 240-0186 Washer M5 star lock 4
17 240-1149 Connection plate 1
18 240-5111 Cover (OBSOLETE) 1
19 240-0269 Handle grip 2
20 240-1134 Right hand switch lever 1
21 240-5382 Screw M4 X 10mm 2
22 240-0103 Handle cable block 1
23a 240-5488 14/3 Power cord (black) 1 (OEM)
23b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
24 240-0106 Strain relief 1
25 240-1131 Screw M5 x 30mm 5
26 240-1128 Handle cover 1
27 240-0139 Screw M5 x 20mm 2
29 240-0110 Read manual decal 1
30 240-0183 Safety block spring 1
31 240-1133 Safety block 1
32 240-1135 Cover 1
33 240-0115 Circuit breaker 1
34 240-5490 Jump wire 1
35 240-0008 On/Off switch 1
36 240-0100 Internal tooth lock washer 2
38 240-1130 Left hand switch lever 1
39 240-1108 Front handle cover 1
40 240-6622 Front cover decal 1
