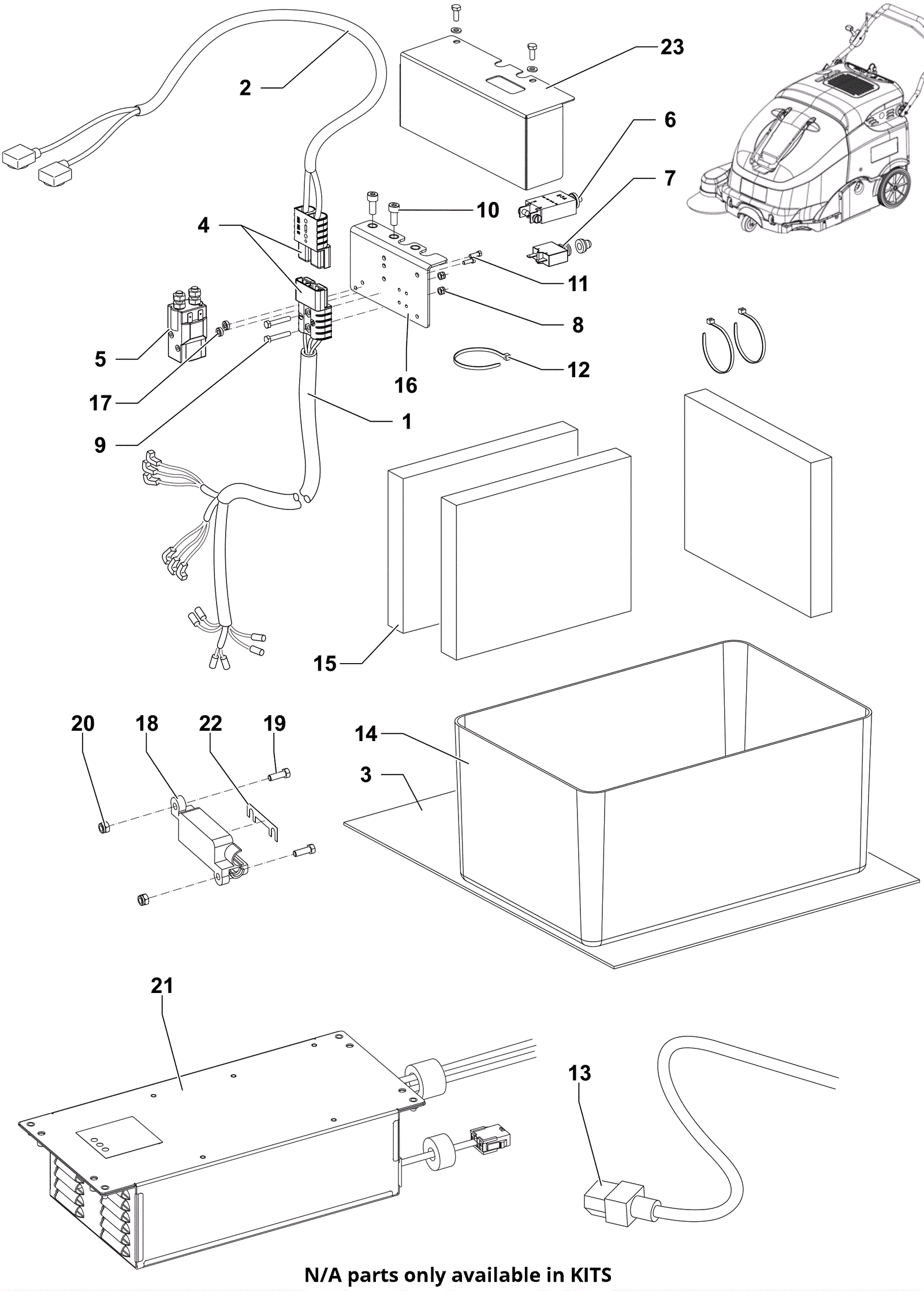

SW900 Electrical System Assembly

#PartDescriptionPriceReqNotesAvailability
1 472-1184 HARNESS MACHINE B $262.11 1 usually ships 17-28 days
2 372-3460 Battery harness $143.09 1 usually ships 17-28 days
3 472-1187 RUBBER PROTECTION CHARGER $35.60 1 usually ships 17-28 days
4 472-0543 POWER CONNECTOR $63.07 2 usually ships 17-28 days
5 472-1011 SWITCH ELECTROMAG 12V 100A $101.56 1 usually ships 17-28 days
6 472-1207 CIRCUIT BREAKER 70A KIT $337.39 1 usually ships 17-28 days
7 472-1206 CIRCUIT BREAKER 5A KIT $160.86 1 usually ships 17-28 days
8 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 (included in KIT1) ships same day
9 999-0797 Screw M5-.8 x 30mm pan head phillips stainless steel $0.99 2 (included in KIT1) ships same day
10 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 (included in KIT1) ships same day
11 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 2 (included in KIT1) ships same day
12 N/A Not available Call for price 3 (clamp) (only available in KIT1) usually ships 3-26 days
13 372-3461 Extension cable Call for price 1 usually ships 17-28 days
14 172-3705 Plastic battery box $222.53 1 usually ships 1-5 days
15 172-3706 Insulating panel $13.76 3 usually ships 17-28 days
16 472-0980 SUPPORT RELAIS AND FUSES $12.10 1 usually ships 17-28 days
17 N/A Not available Call for price 2 (spacer) (only available in KIT1) usually ships 3-26 days
18 181-0966 Fuse holder $32.69 1 usually ships 17-28 days
19 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 2 (included in KIT1) ships same day
20 999-0955 Nut M4-.7 hex nylon lock $1.52 2 (included in KIT1) ships same day
21 372-3463 On board battery charger $1,394.02 1 usually ships 17-28 days
22 472-1106 FUSE STRIP 30A $9.26 1 usually ships 17-28 days
23 372-3464 Battery cover Call for price 1 usually ships 17-28 days
KIT1 472-1177 HARDWARE ELECTRICAL SYSTEM KIT $169.11 1 (not shown) (includes 8-12, 17, 19-20) usually ships 17-28 days
