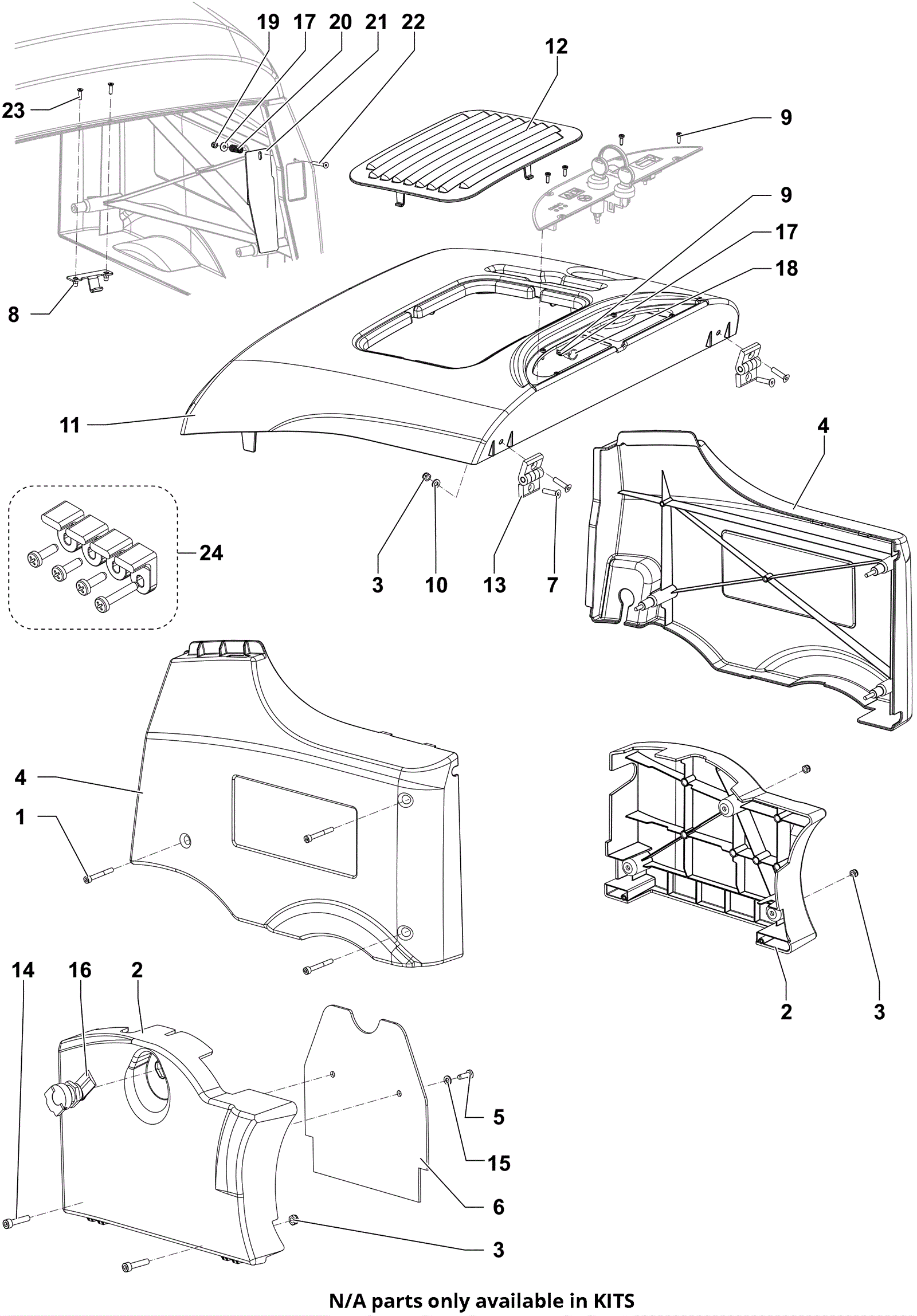

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-1554
|
Screw M5-.8 x 35mm pan head phillips zinc plated |
$0.99
|
6 |
(included in KIT1) |
ships same day |
2 |
472-1196
|
COVER UPPER BLACK KIT |
$306.30
|
1 |
|
usually ships 17-28 days |
3 |
999-9131
|
Nut M6 x 1 nylon lock stainless steel |
$0.99
|
5 |
(included in KIT1) |
ships same day |
4 |
472-1197
|
COVERS SIDE GREY KIT |
$321.78
|
1 |
|
usually ships 17-28 days |
5 |
N/A
|
Not available |
Call for price
|
2 |
(screw 5 x 16 self locking cylinder head) (only available in KIT1) |
usually ships 3-26 days |
6 |
472-1108
|
SKIRT PROTECTION |
$10.85
|
1 |
|
usually ships 17-28 days |
7 |
N/A
|
Not available |
Call for price
|
4 |
(heat exchange) (only available in KIT1) |
usually ships 3-26 days |
8 |
472-1180
|
HOOK FOR BONNET CLOSING |
$64.53
|
1 |
|
usually ships 17-28 days |
9 |
N/A
|
Not available |
Call for price
|
5 |
(screw 3 1/2 x 12) (only available in KIT1) |
usually ships 3-26 days |
10 |
N/A
|
Not available |
Call for price
|
2 |
(washer) (only available in KIT1) |
usually ships 3-26 days |
11 |
472-1219
|
COVER UPPER GREY PKD |
$245.37
|
1 |
|
usually ships 17-28 days |
12 |
472-0979
|
COVER UPPER-BATTERY |
$34.14
|
1 |
|
usually ships 17-28 days |
13 |
N/A
|
Not available |
Call for price
|
2 |
(plastic hinge) (only available in KIT1) |
usually ships 3-26 days |
14 |
999-0780
|
Screw M6-1 x 40mm hex head |
$0.99
|
2 |
(included in KIT1) |
ships same day |
15 |
N/A
|
Not available |
Call for price
|
2 |
(washer 5 x 15) (only available in KIT1) |
usually ships 3-26 days |
16 |
472-1009
|
LATCH WITH FOLD AWAY |
$29.23
|
1 |
|
usually ships 17-28 days |
17 |
N/A
|
Not available |
Call for price
|
2 |
(washer 4 x 12) (only available in KIT1) |
usually ships 3-26 days |
18 |
N/A
|
Not available |
Call for price
|
1 |
(cable clamp) (only available in KIT1) |
usually ships 3-26 days |
19 |
999-0955
|
Nut M4-.7 hex nylon lock |
$1.52
|
1 |
(included in KIT1) |
ships same day |
20 |
N/A
|
Not available |
Call for price
|
1 |
(spring) (only available in KIT1) |
usually ships 3-26 days |
21 |
472-1192
|
PROTECTION POLY MICROSWITCH |
$12.31
|
1 |
|
usually ships 17-28 days |
22 |
999-9083
|
Screw M4-.7 x 30mm hex head stainless steel |
$0.99
|
1 |
(included in KIT1) |
ships same day |
23 |
999-9095
|
Screw M4-.7 x 14mm socket head stainless steel |
$0.99
|
2 |
(included in KIT1) |
ships same day |
24 |
372-3446
|
Cover fixing kit |
Call for price
|
1 |
|
usually ships 17-28 days |
KIT1 |
472-1166
|
HARDWARE COVERS KIT |
$252.90
|
1 |
(includes 1, 3, 5, 7, 9-10, 13-15, 17-20, 22-23) |
usually ships 17-28 days |
