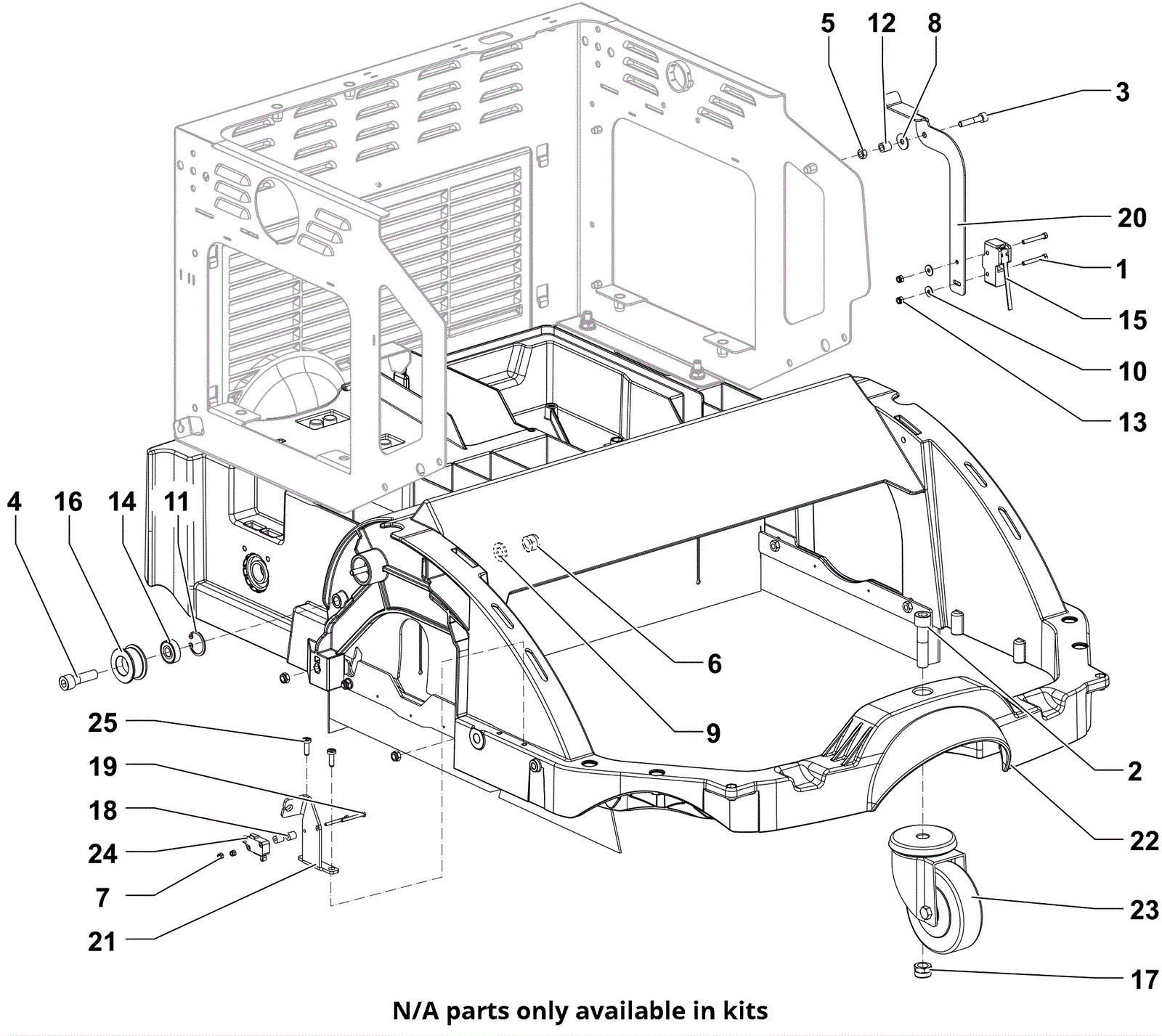

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-9083
|
Screw M4-.7 x 30mm hex head stainless steel |
$0.99
|
2 |
(included in KIT1) |
ships same day |
2 |
N/A
|
Not available |
Call for price
|
1 |
(screw M12 x 50mm) (only available in KIT1) |
usually ships 3-26 days |
3 |
999-9108
|
Screw M6-1 x 30mm hex head stainless steel |
$0.99
|
1 |
(included in KIT1) |
ships same day |
4 |
999-9142
|
Screw M10-1.5 x 35mm flat head |
$2.27
|
1 |
(included in KIT1) |
usually ships 12-18 days |
5 |
999-9131
|
Nut M6 x 1 nylon lock stainless steel |
$0.99
|
1 |
(included in KIT1) |
ships same day |
6 |
999-1550
|
Nut M10-1.5 nylon insert lock |
$0.99
|
1 |
(included in KIT1) |
usually ships 1-5 days |
7 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
$0.99
|
2 |
(included in KIT1) |
ships same day |
8 |
N/A
|
Not available |
Call for price
|
1 |
(washer 6 x 18) (only available in KIT1) |
usually ships 3-26 days |
9 |
999-9099
|
Washer M10 flat stainless steel |
$0.99
|
1 |
(included in KIT1) |
ships same day |
10 |
N/A
|
Not available |
Call for price
|
2 |
(washer 4 x 12) (only available in KIT1) |
usually ships 3-26 days |
11 |
N/A
|
Not available |
Call for price
|
1 |
(D.26 ring) (only available in KIT1) |
usually ships 3-26 days |
12 |
N/A
|
Not available |
Call for price
|
1 |
(spacer) (only available in KIT1) |
usually ships 3-26 days |
13 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
$0.99
|
2 |
(included in KIT1) |
ships same day |
14 |
N/A
|
Not available |
Call for price
|
1 |
(ball bearing) (only available in KIT1) |
usually ships 3-26 days |
15 |
272-8314
|
250V microswitch |
$69.01
|
1 |
|
usually ships 17-28 days |
16 |
N/A
|
Not available |
Call for price
|
1 |
(roller belt tensioner) (only available in KIT1) |
usually ships 3-26 days |
17 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
$3.85
|
1 |
(included in KIT1) |
ships same day |
18 |
N/A
|
Not available |
Call for price
|
2 |
(spacer) (only available in KIT1) |
usually ships 3-26 days |
19 |
999-1520
|
Screw M3-.5 x 30mm pan head phillips zinc plated |
$0.99
|
2 |
(included in KIT1) |
ships same day |
20 |
472-1043
|
BRACKET CONTAINER COVER SWITCH |
$24.60
|
1 |
|
usually ships 17-28 days |
21 |
472-1048
|
SUPPORT RIGHT BROOM SWITCH |
$13.76
|
1 |
|
usually ships 17-28 days |
22 |
472-1050
|
CHASSIS |
$398.17
|
1 |
|
usually ships 17-28 days |
23 |
572-3093
|
WHEEL CASTER |
$95.66
|
1 |
|
usually ships 17-28 days |
24 |
272-5299
|
Microswitch |
$12.31
|
1 |
|
usually ships 17-28 days |
25 |
N/A
|
Not available |
Call for price
|
2 |
(screw 5 x 16 self locking cylinder head) (only availalble in KIT1) |
usually ships 3-26 days |
KIT1 |
472-1163
|
HARDWARE CHASSIS KIT |
$245.37
|
1 |
(includes 1-14, 16-19, 25) |
usually ships 17-28 days |
