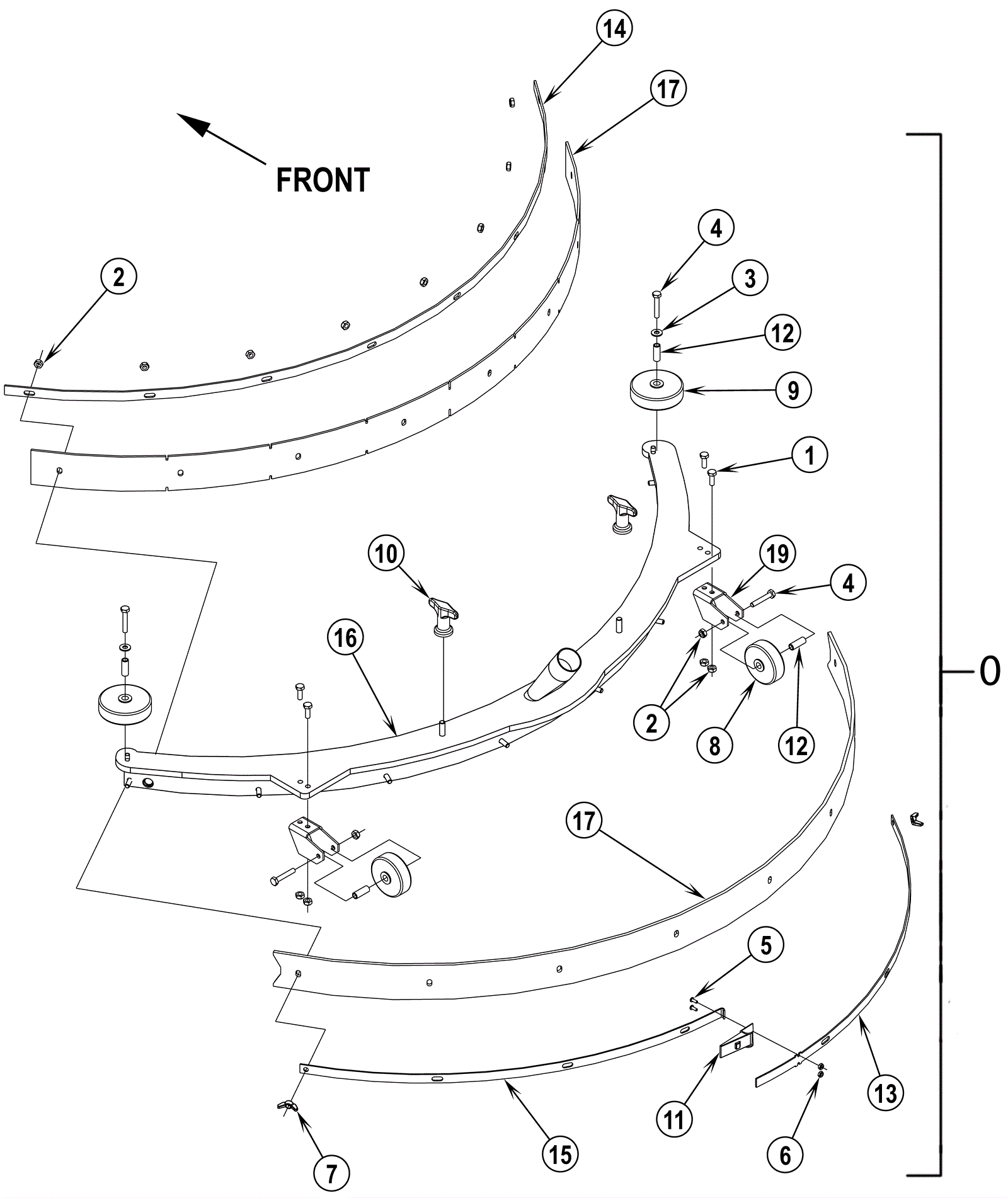

Squeegee Assembly

#PartDescription ReqNotesAvailability
0 272-1395 Squeegee assembly 34 inch (OBSOLETE) 1 (includes 1-17a, and 19)
1 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 4
2 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 14
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
4 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 4
5 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2
6 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
7 999-1948 Nut 1/4-20 wing lock 2
8 172-0045 Guide wheel 2
9 172-0083 3 inch guide wheel 2
10 172-4099 Nut 5/16-18 thumb 2
11 172-0094 Latch 1
12 172-0095 Bushing 4
13 172-1775 Rear strap 1
14 172-1776 Front strap 1
15 172-1777 Rear strap (OBSOLETE) 1
16 172-1871 Squeegee tool weldment 1
17a 272-1389 Squeegee blade kit 55 1/2 inch gum rubber (pkg of 2) 1
17b 172-8100 Squeegee blade kit 55 1/2 rear and 51 inch gum rubbr (pkg 2) 1 (optional)
17c 272-1389 Squeegee blade kit 55 1/2 inch gum rubber (pkg of 2) 1 (optional)
17d 172-1778 Squeegee blade kit oil resistant neoprene (OBSOLETE) 1 (optional)
17e 272-1388 Front gum rubber squeegee blade for tile floors (OBSOLETE) 1 (optional)
19 172-0093 Wheel bracket 2
