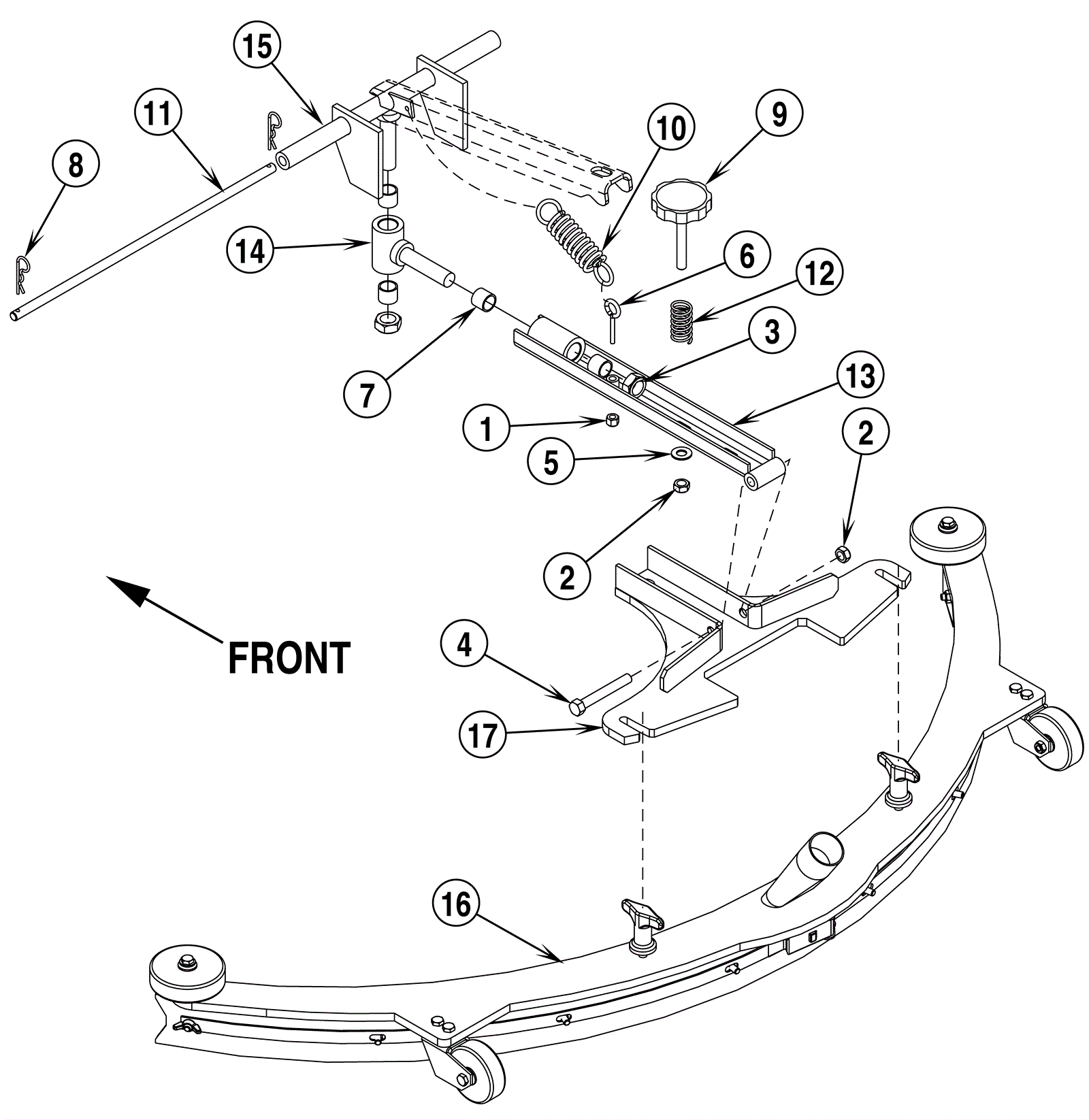

I-MAX 32C Squeegee System Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
2 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 2 ships same day
3 999-0704 Nut 5/8-11 nylon insert lock stainless steel $3.65 2 ships same day
4 999-0686 Bolt 3/8-16 x 2 3/4 hex head stainless steel $2.55 1 ships same day
5 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
6 172-0547 Bolt 1/4-20 x 1 3/8 eye $10.52 1 usually ships 1-5 days
7 172-0107 Sleeve bearing $13.22 4 usually ships 1-5 days
8 997-2511 Cotter pin $0.99 2 ships same day
9 272-1425 Adjustment knob assembly $70.50 1 ships same day
10 181-0142 Extension spring $23.95 1 usually ships 16-41 days
11 181-0046 Shaft stainless steel $22.24 1 usually ships 1-5 days
12 181-0168 Compression spring $13.07 1 usually ships 16-41 days
13 272-1429 Squeegee bar weldment $170.42 1 usually ships 1-5 days
14 272-1430 Squeegee pivot weldment $103.87 1 usually ships 1-5 days
15 172-2366 Squeegee lift $307.86 1 usually ships 16-41 days
16 272-1395 Squeegee assembly 34 inch (OBSOLETE) $895.68 1 usually ships 1-5 days
17 272-1393 Mounting plate weldment $320.21 1 usually ships 1-5 days
