| # | Part | Description | Price | Req | Notes | Availability |
|---|

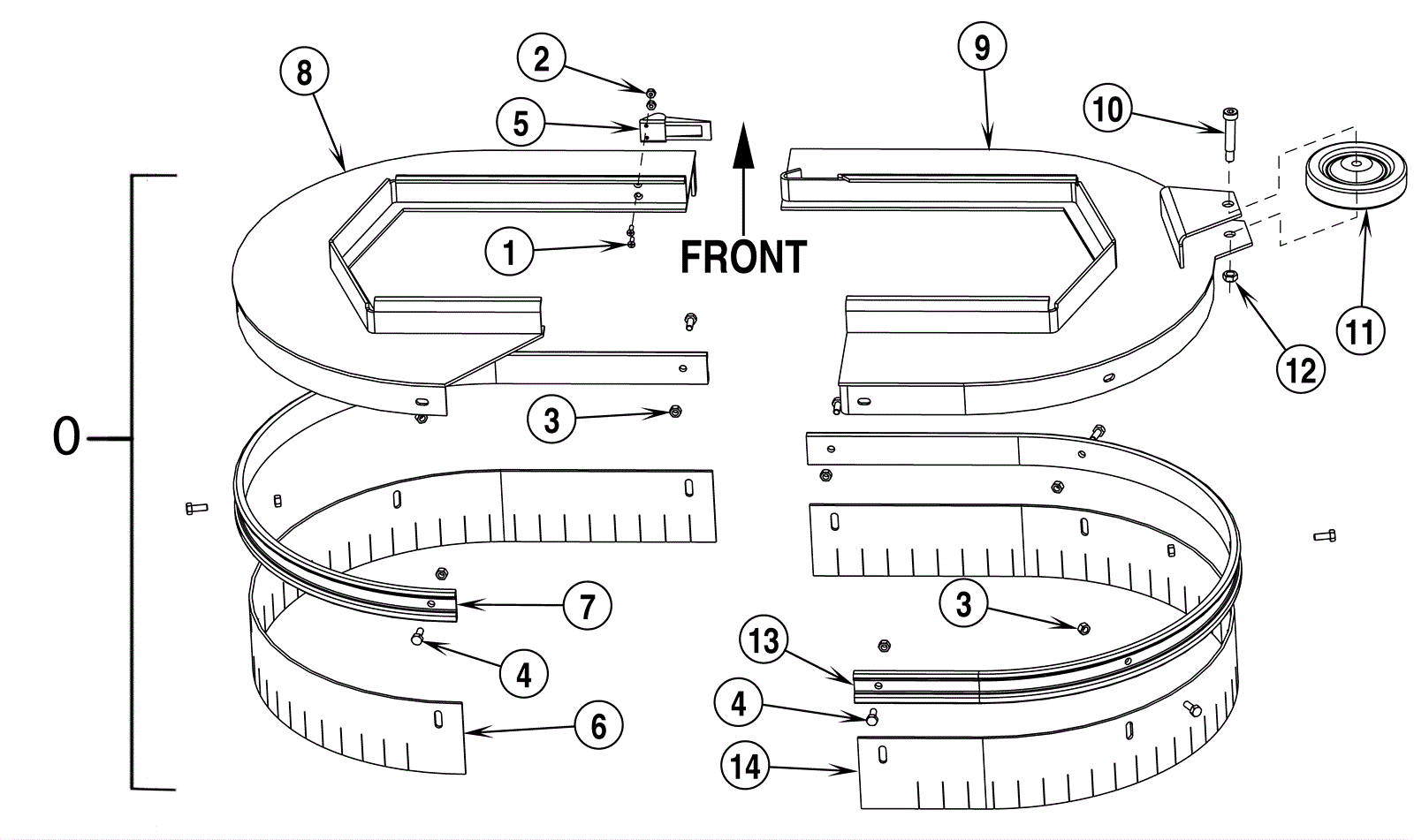

0a |
172-1842
|
Left brush guard assembly |
$737.00
|
1 |
(includes 1-8) |
usually ships 1-5 days |
0b |
172-1843
|
Right brush guard assembly |
$366.96
|
1 |
(includes 3, 4, and 9-14) |
usually ships 1-5 days |
1 |
999-1582
|
Screw 6-32 x 1/2 flat head phillips stainless steel |
$0.99
|
2 |
|
usually ships 1-5 days |
2 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
$0.99
|
2 |
|
ships same day |
3 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$0.99
|
9 |
|
usually ships 11-24 days |
4 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
$3.96
|
9 |
|
ships same day |
5 |
172-0094
|
Latch |
$44.58
|
1 |
|
ships same day |
6 |
172-1773
|
Squeegee blade left |
$31.05
|
1 |
|
usually ships 16-41 days |
7 |
172-1844
|
Left channel |
$64.64
|
1 |
|
usually ships 1-5 days |
8 |
172-1845
|
Left brush cover weldment (OBSOLETE) |
$263.45
|
1 |
|
usually ships 1-5 days |
9 |
172-1846
|
Right brush cover weldment |
$368.50
|
1 |
|
usually ships 1-5 days |
10 |
372-0123
|
Screw 3/8 x 1 1/2 x 5/16-18 socket head |
$9.27
|
1 |
|
usually ships 16-41 days |
11 |
172-3010
|
Wheel |
$53.55
|
1 |
|
usually ships 16-41 days |
12 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
13 |
172-1848
|
Right channel |
$67.11
|
1 |
|
usually ships 1-5 days |
14 |
172-1774
|
Squeegee blade right |
$29.16
|
1 |
|
usually ships 16-41 days |
