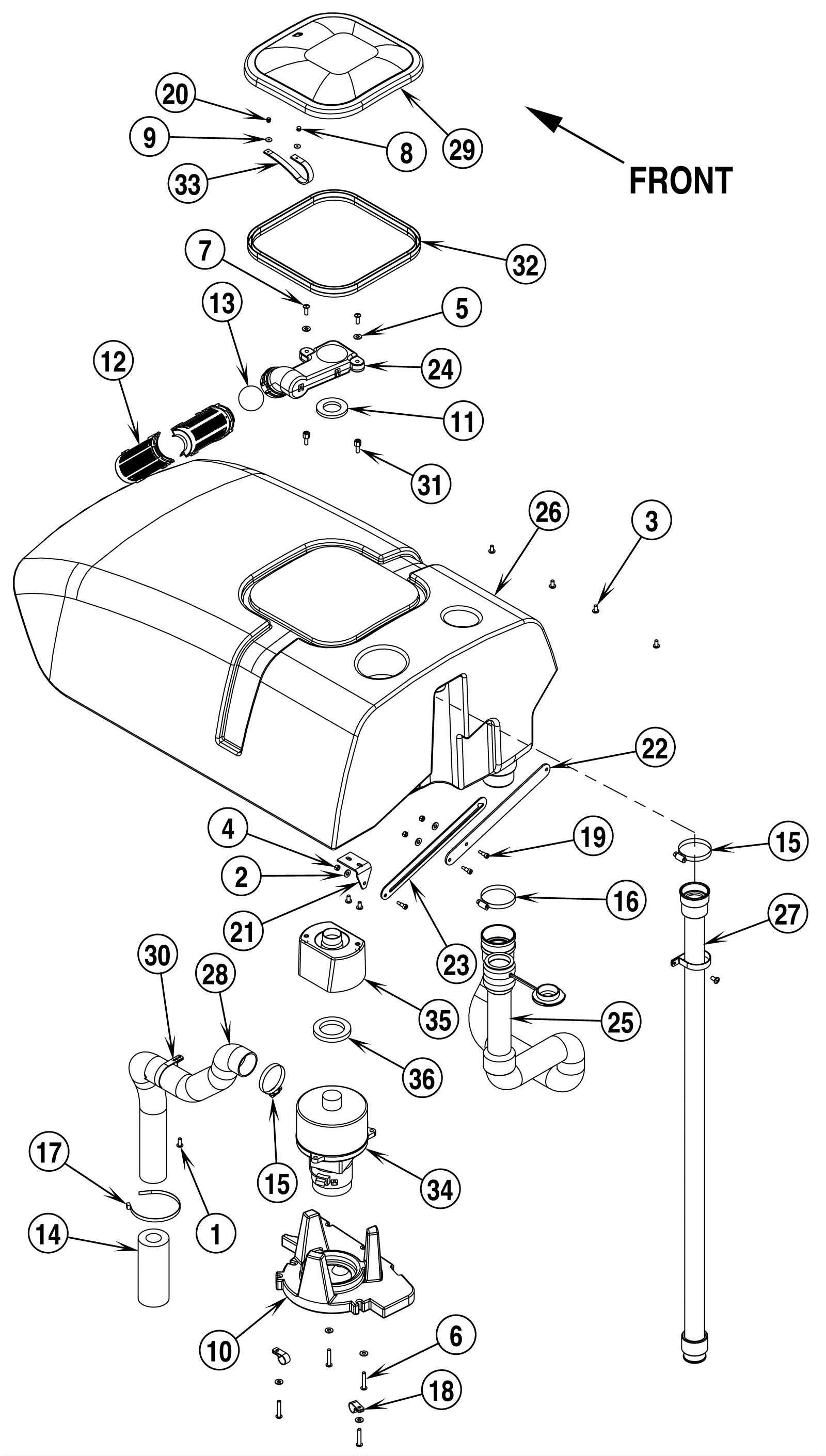

I-MAX 32C Recovery Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
2 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
3 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 7 ships same day
4 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 3 ships same day
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
6 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 4 ships same day
7 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 2 ships same day
8 172-0513 Pop rivet $11.99 1 usually ships 16-41 days
9 172-0253 Washer 1/8 x 23/64 flat stainless steel $11.99 2 usually ships 16-41 days
10 272-1367 Vacuum motor duct $100.17 1 usually ships 1-5 days
11 172-2119 Gasket $11.99 1 usually ships 16-41 days
12 172-0517 Float cage half (2 required for full float cage) $17.90 2 usually ships 16-41 days
13 172-0192 Float ball $10.52 1 ships same day
14 172-0126 Acoustical foam $28.46 1 usually ships 16-41 days
15 272-9976 #32 hose clamp SAE $10.56 2 ships same day
16 272-9977 #36 hose clamp SAE $8.80 1 usually ships 1-5 days
17 997-2102 Cable tie $1.24 1 ships same day
18 172-2122 P clamp $11.99 2 usually ships 16-41 days
19 181-0223 Screw socket head $11.99 3 usually ships 16-41 days
20 272-1376 Pop rivet $10.52 1 usually ships 1-5 days
21 272-1368 Steel bracket $22.70 1 usually ships 16-41 days
22 181-0224 Steel bar plated $24.87 1 usually ships 16-41 days
23 172-2123 Slotted steel bar (OBSOLETE) $43.75 1 usually ships 16-41 days
24 172-2118 Float duct $116.92 1 usually ships 16-41 days
25 272-1369 Drain hose with molded plug $135.82 1 usually ships 16-41 days
26a 272-1370 Recovery tank (OBSOLETE) $1,019.15 1 (Advance) usually ships 1-5 days
26b 172-1860 Recovery tank (OBSOLETE) $800.21 1 (Nilfisk) usually ships 1-5 days
27 172-1861 1 1/2 inch vacuum hose assembly $61.41 1 usually ships 16-41 days
28 172-2126 Vacuum motor exhaust hose $94.53 1 usually ships 16-41 days
29 172-2129 Lid $64.23 1 usually ships 16-41 days
30 172-2131 Hose clamp $10.56 2 usually ships 1-5 days
31 172-2132 Spacer bolt $50.60 2 usually ships 1-5 days
32 172-2135 Lid gasket $41.84 1 usually ships 16-41 days
33 172-8109 Retaining strap (OBSOLETE) $11.99 1 usually ships 16-41 days
34a 272-9272 36V 3 stage vacuum motor $290.92 1 usually ships 16-41 days
34b 272-5681 Carbon brush (pkg of 2) $25.36 1 usually ships 16-41 days
35 172-2137 Vacuum motor spacer (OBSOLETE) $47.85 1 usually ships 16-41 days
36 172-2138 Vacuum motor gasket $11.99 1 usually ships 16-41 days
