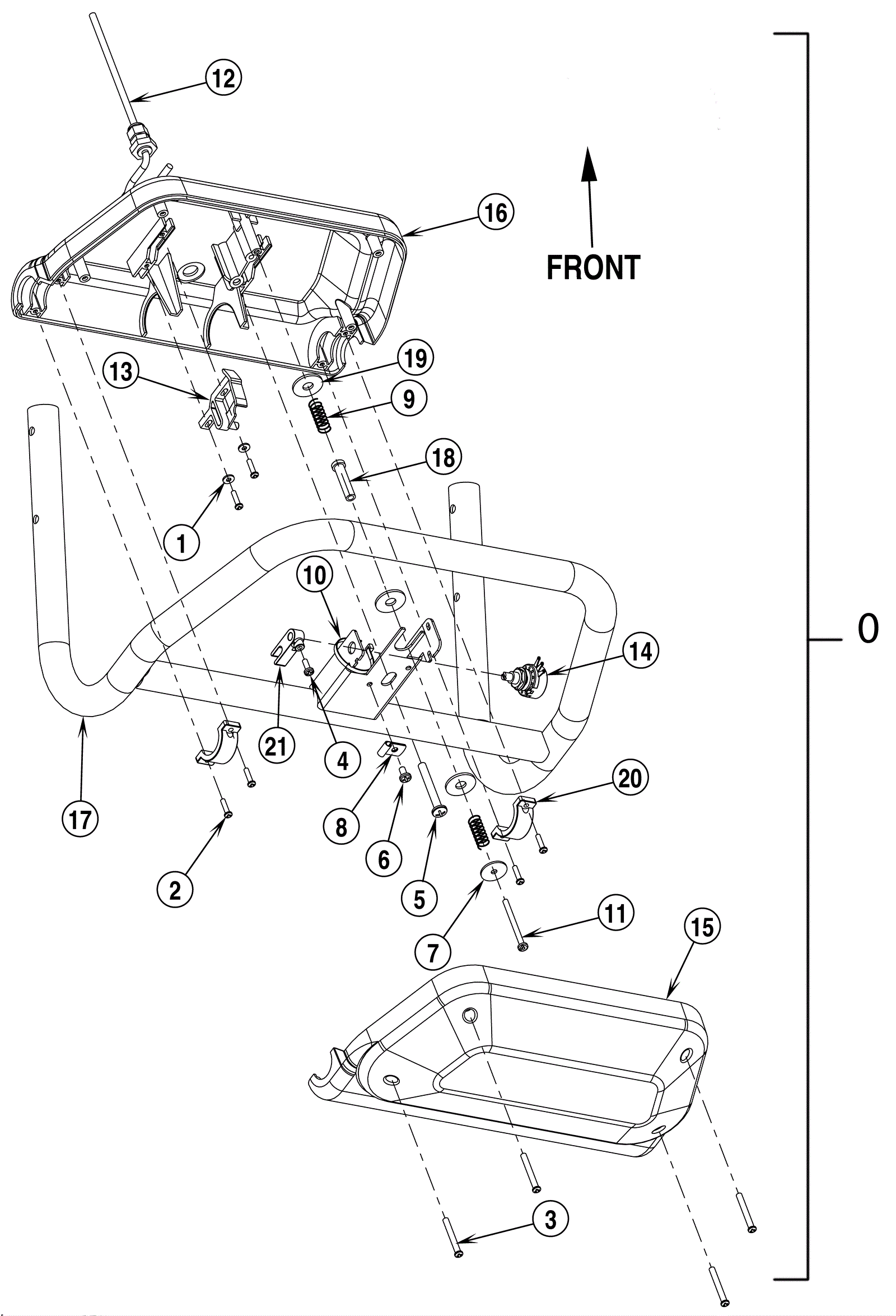

I-MAX 32C Handle Paddle Assembly

#PartDescriptionPriceReqNotesAvailability
0 172-1800 Handle assembly $939.38 1 (includes 1-21) usually ships 1-5 days
1 999-1215 Washer #6 SAE flat zinc plated $0.99 2 ships same day
2 999-1362 Screw 6-18 x 5/8 pan head phillips stainless steel $0.99 6 ships same day
3 172-2034 Screw 8-15 x 1 1/2 pan phil plastite $11.69 4 usually ships 1-5 days
4 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 1 ships same day
5 172-2035 Screw 1/4-10 x 2 pan head phillips $11.99 1 usually ships 16-41 days
6 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 1 ships same day
7 999-0588 Washer 7/8 flat stainless steel $11.44 1 ships same day
8 172-8814 P clamp $10.56 1 usually ships 1-5 days
9 172-2036 Compression spring $11.99 2 usually ships 16-41 days
10 372-2096 Cable tie $11.99 1 usually ships 16-41 days
11 172-2037 Screw 8 x 2 pan head phillips type B $10.56 1 ships same day
12 172-1772 Handle harness $110.99 1 usually ships 1-5 days
13 172-2038 Cam controller $15.07 1 ships same day
14 172-2039 5K potentiometer $61.41 1 ships same day
15 172-2040 Front handle (OBSOLETE) $58.95 1 usually ships 16-41 days
16 172-2041 Back handle $70.50 1 usually ships 16-41 days
17 172-2042 Handle weldment $319.00 1 usually ships 1-5 days
18 172-2043 Sleeve $26.92 1 ships same day
19 172-2045 Washer plastic $10.56 3 ships same day
20 272-1353 Clamp $11.99 2 usually ships 16-41 days
21 172-2047 U clamp $10.56 1 usually ships 16-41 days
