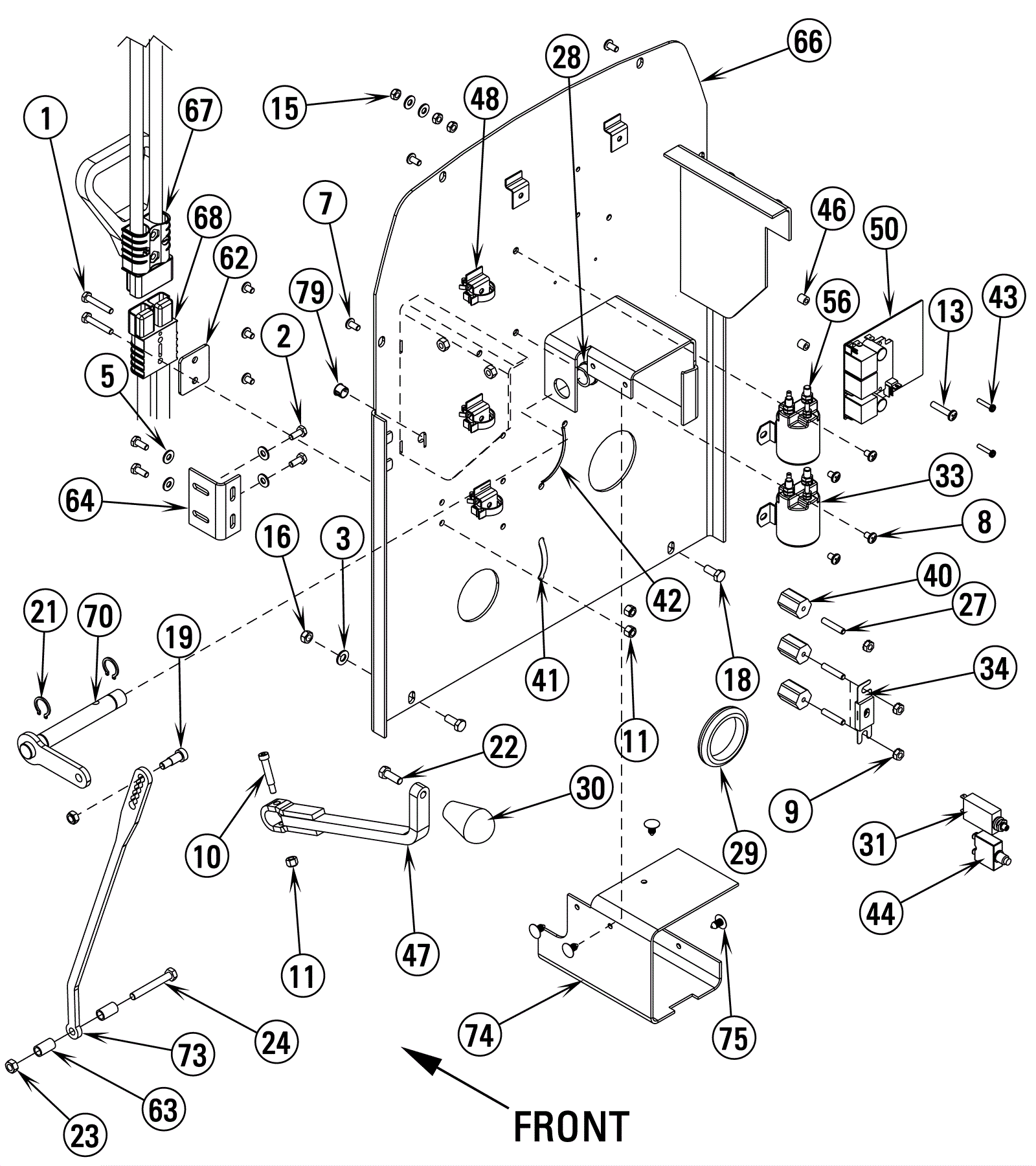

I-MAX 32C Electrical Control Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel $0.99 2 ships same day
2 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 8 ships same day
3 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 10 ships same day
7 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 4 ships same day
8 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 7 ships same day
9 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
10 372-0116 Screw 5/16 x 1 1/4 x 1/4-20 inch socket head (OBSOLETE) Call for price 1 usually ships 16-41 days
11 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
13 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 1 ships same day
15 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
16 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
18 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
19 272-9416 Screw 5/16-18 x .30 x .62 socket head $11.99 1 usually ships 1-5 days
21 172-0569 Retaining ring $11.99 2 usually ships 1-5 days
22 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel $0.99 1 ships same day
23 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 usually ships 11-24 days
24 999-1368 Screw M8-1.25 x 60mm hex head stainless steel $3.41 1 ships same day
27 172-0346 Stud 1/4-20 $11.99 3 ships same day
28 172-9388 Flanged bearing $13.40 2 usually ships 16-41 days
29 172-4032 Grommet $11.99 1 usually ships 1-5 days
30 172-0021 Knob $23.95 1 usually ships 16-41 days
31 172-0228 5amp circuit breaker (OBSOLETE) $79.20 1 (controls) usually ships 16-41 days
33 172-2805 36V contactor $97.47 1 (Brush motor) ships same day
34 172-8836 150amp fuse $19.15 1 usually ships 16-41 days
40 172-0103 Electrical mount $13.40 3 usually ships 1-5 days
41 997-2102 Cable tie $1.24 1 ships same day
42 272-7413 Cable tie $11.99 1 usually ships 1-5 days
43 999-1356 Screw 8-32 x 7/8 pan head phillips stainlesss steel $0.99 2 usually ships 1-5 days
44 181-0624 30amp circuit breaker $38.07 1 (Wheel drive) usually ships 1-5 days
46 181-0197 Aluminum spacer (OBSOLETE) $9.13 2 usually ships 1-5 days
47 172-1805 Lift lever weldment (OBSOLETE) $69.01 1 usually ships 1-5 days
48 172-1806 Conduit clip (OBSOLETE) $7.65 3 usually ships 1-5 days
50 272-2585 36V Curtis speed control $981.13 1 usually ships 16-41 days
56 172-2805 36V contactor $97.47 1 (Vacuum motor) ships same day
62 172-2155 Spacer $9.02 1 usually ships 1-5 days
63 272-1424 Spacer (OBSOLETE) $8.78 2 usually ships 1-5 days
64 272-1330 Bracket (OBSOLETE) $8.78 2 usually ships 1-5 days
66 172-1807 Electrical panel weldment (OBSOLETE) $659.34 1 usually ships 1-5 days
67 272-1435 Charger connector assembly - to batteries $186.96 1 (connects to batteries) ships same day
68 172-1771 Connector assembly $69.71 1 (connects to machine) usually ships 16-41 days
70 172-1808 Lift shaft weldment (OBSOLETE) $52.87 1 usually ships 1-5 days
73 172-1809 Squeegee lift link (OBSOLETE) $39.58 1 usually ships 1-5 days
74 172-1810 Rubber flap (OBSOLETE) $8.90 1 usually ships 1-5 days
75 172-1811 Panel clip $6.05 4 usually ships 1-5 days
79 181-0095 Dome plug $11.99 1 usually ships 1-5 days
N/S 272-1144 Cable assembly $28.46 4 (battery interconnect) usually ships 16-41 days
N/S 172-2164 Cable assembly - ring terminal type $57.08 1 (battery interconnect) usually ships 16-41 days
N/S 172-1812 Cable assembly $11.77 1 usually ships 1-5 days
N/S 172-0223 Battery cable boot $9.02 12 ships same day
N/S 372-2096 Cable tie $11.99 13 usually ships 16-41 days
N/S 172-1813 Main harness $517.00 1 usually ships 16-41 days
