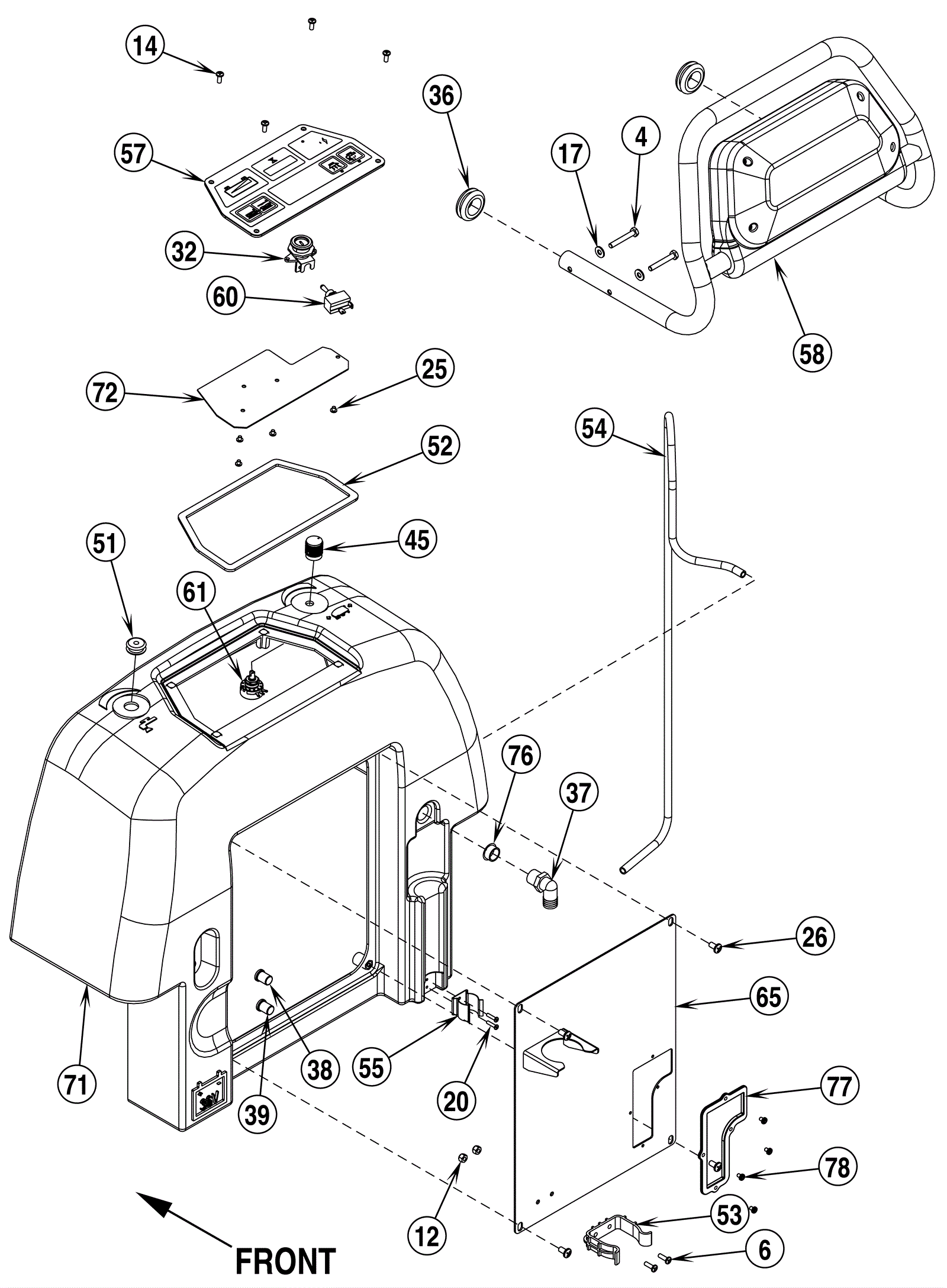

I-MAX 32C Electrical Control Assembly 1

#PartDescriptionPriceReqNotesAvailability
4 999-1436 Bolt 1/4-20 x 1 3/4 hex stainless steel $0.99 4 ships same day
6 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 2 ships same day
12 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 2 ships same day
14 999-1436 Bolt 1/4-20 x 1 3/4 hex stainless steel $0.99 4 ships same day
17 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
20 999-1362 Screw 6-18 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
25 999-1272 Screw 8-32 x 3/16 pan head phillips stainless steel $0.99 4 ships same day
26 272-5722 Screw 1/4-20 x 1/2 pan head $11.99 4 usually ships 1-5 days
32a 172-2161 Key switch with key and bracket $209.34 1 usually ships 16-41 days
32b 172-0451 Replacement key $37.39 1 usually ships 16-41 days
36 272-1310 Grommet (OBSOLETE) $8.14 2 usually ships 1-5 days
37 172-2322 90 degree elbow barb 3/4 x 3/8 $25.36 1 usually ships 16-41 days
38 172-0231 Reset button boot $48.32 1 usually ships 16-41 days
39 172-0232 Clear boot cap $33.96 1 usually ships 16-41 days
45 172-2169 Knob (OBSOLETE) $68.46 1 usually ships 16-41 days
51 272-1313 Grommet $8.03 1 usually ships 1-5 days
52 272-1314 Gasket $11.75 1 usually ships 16-41 days
53 272-1317 Plastic clamp $25.36 1 ships same day
54 272-1318 PVC hose (OBSOLETE) $7.48 1 usually ships 1-5 days
55 172-1799 Spring clip $8.56 1 usually ships 16-41 days
57 272-2029 Display panel assembly (OBSOLETE) $364.22 1 usually ships 16-41 days
58 172-1800 Handle assembly $939.38 1 usually ships 1-5 days
60 172-1761 Toggle switch SPST $19.65 1 (main) usually ships 16-41 days
61 472-8486 POTENTIOMETER 25K $118.35 1 usually ships 16-41 days
65 172-1801 Rear panel weldment (OBSOLETE) $40.39 1 usually ships 1-5 days
71 172-1802 Rear cover (OBSOLETE) $711.68 1 usually ships 1-5 days
72 272-2030 Control PCB panel assembly (OBSOLETE) $939.38 1 usually ships 16-41 days
76 172-1803 Plug $11.99 1 usually ships 1-5 days
77 172-1804 Plastic wear strip (OBSOLETE) $118.06 1 usually ships 1-5 days
78 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
