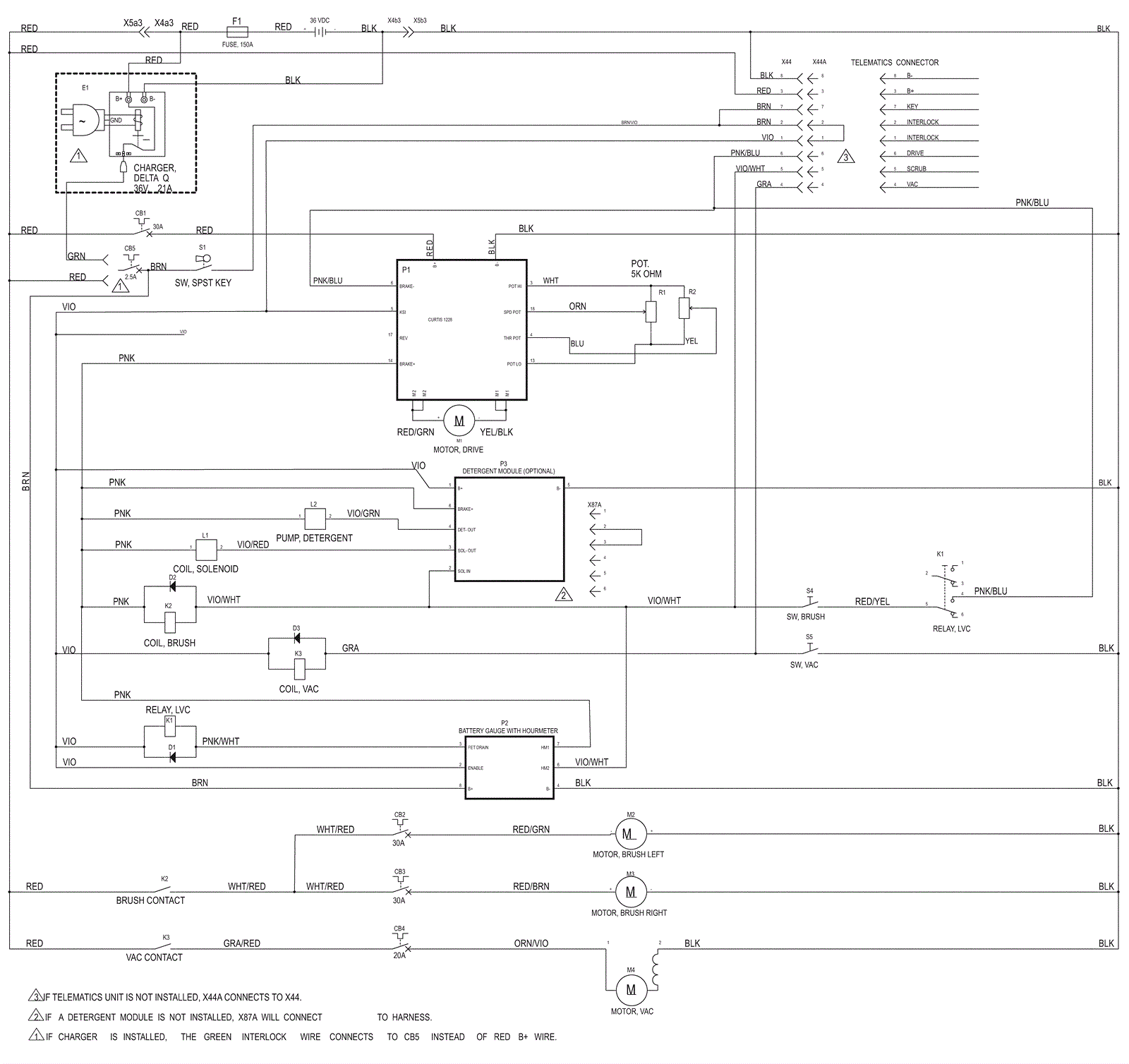

SC901 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
BATa 162-0005 6V 305Ah wet battery (SNSR) $412.50 1 ships same day
BATb 162-0043 6V 224Ah AGM battery (Group GC2) $456.50 1 ships same day
BATc 162-0003 6V 225Ah wet battery (SNSR) $269.50 1 ships same day
CB1 272-2209 30amp circuit breaker $13.76 1 ships same day
CB2 272-2209 30amp circuit breaker $13.76 1 ships same day
CB3 272-2209 30amp circuit breaker $13.76 1 ships same day
CB4 272-7727 20amp circuit breaker $29.23 1 ships same day
CB5 472-4919 2.5 amp circuit breaker $23.01 1 ships same day
E1 N/A Not available Call for price 1 (Delta Q charger) usually ships 3-26 days
F1 472-4932 150 amp fuse $19.98 1 ships same day
K1 172-1779 36V relay SPST $78.58 1 usually ships 17-28 days
K2 172-2805 36V contactor $100.10 1 (brush) ships same day
K3 272-8184 36V 100amp contactor $55.56 1 (vacuum) usually ships 17-28 days
L1 472-4998 36V solenoid valve $100.10 1 usually ships 17-28 days
L2 N/A Not available Call for price 1 (Detergent pump) usually ships 3-26 days
M1 472-4914 TRANSAXLE-36 VOLT $2,603.40 1 usually ships 17-28 days
M2a 372-1283 Brush motor $1,102.63 1 (disc) ships same day
M2b 272-2231 36V brush motor $1,378.39 1 (cylindrical) usually ships 1-5 days
M3a 372-1283 Brush motor $1,102.63 1 (disc) ships same day
M3b 272-2231 36V brush motor $1,378.39 1 (cylindrical) usually ships 1-5 days
M4 372-1277 Vacuum motor kit $352.17 1 usually ships 17-28 days
P1 372-0114 Speed controller $329.30 1 usually ships 17-28 days
P2 472-4863 GAUGE-BATTERY-HOUR $110.75 1 usually ships 17-28 days
P3 N/A Not available Call for price 1 (detergent module) usually ships 3-26 days
R1 372-0104 100k potentiometer assembly $51.93 1 usually ships 17-28 days
R2 372-0105 5k potentiometer assembly $57.16 1 usually ships 17-28 days
S1 172-3785 Key switch with two keys $64.90 1 usually ships 1-5 days
S4 472-4888 Sealed switch $46.00 1 ships same day
S5 472-4888 Sealed switch $46.00 1 ships same day
