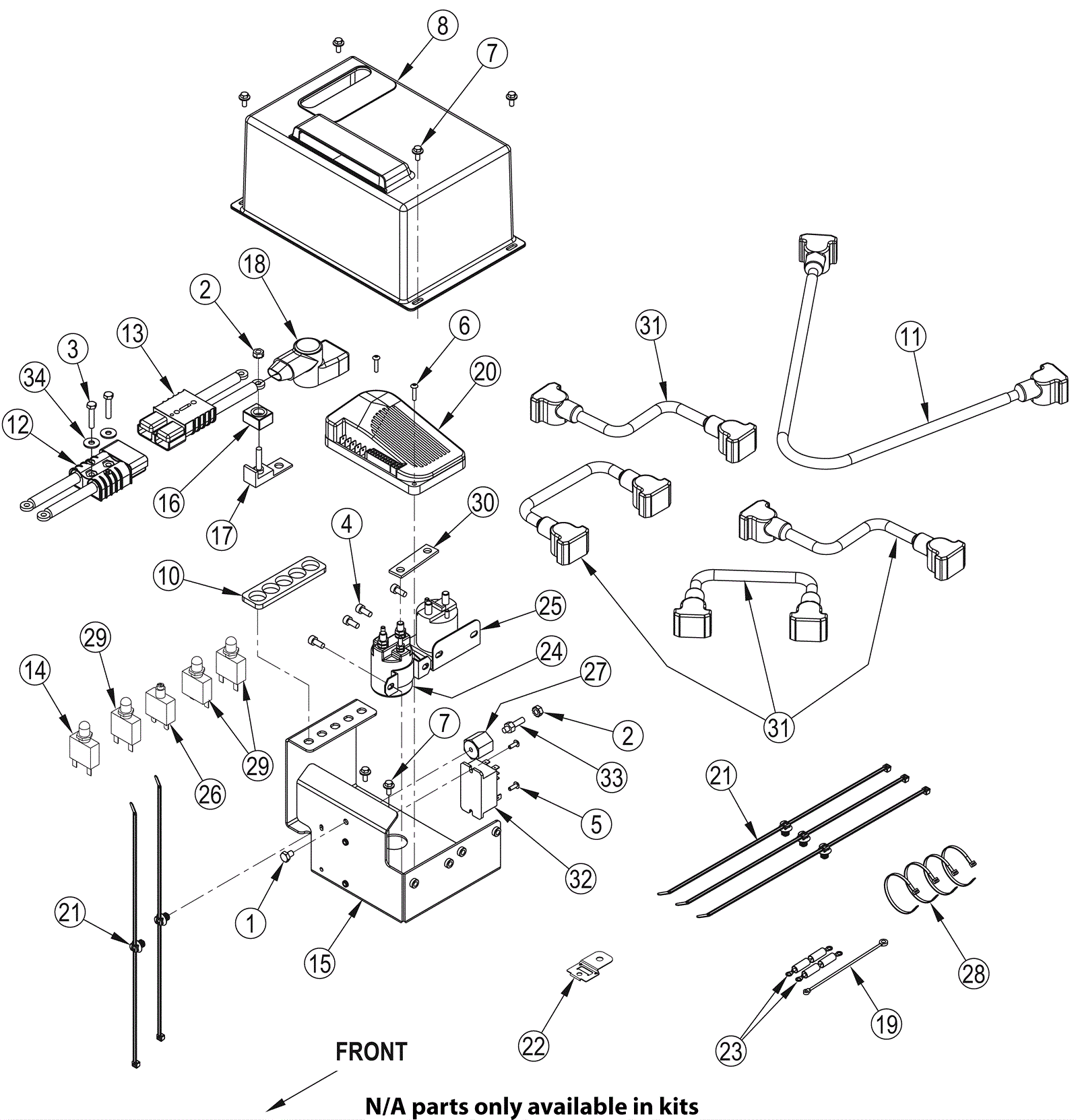

SC901 Electrical System Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0307 Bolt 1/4-20 x 3/8 hex head stainless steel $0.99 1 (included in KIT1) ships same day
2 N/A Not available Call for price 2 (nut 1/4-20) (only available with KIT1) usually ships 3-26 days
3 999-9108 Screw M6-1 x 30mm hex head stainless steel $0.99 2 (included in KIT1) ships same day
4 N/A Not available Call for price 4 (Screw M6-1 x 14 socket head) (only available with KIT1) usually ships 3-26 days
5 N/A Not available Call for price 2 (Screw M4-0.7 x 12 button head) (only available with KIT1) usually ships 3-26 days
6 N/A Not available Call for price 2 (Screw M4-0.7 x 20 button head)(only available with KIT1) usually ships 3-26 days
7 N/A Not available Call for price 6 (Screw M5-.8 x 12 hex head) (only available with KIT1) usually ships 3-26 days
8 472-4846 COVER-ELECTRICAL-BLACK $75.67 1 usually ships 17-28 days
10 472-4891 GASKET-CIRCUIT BREAKER $9.26 1 usually ships 17-28 days
11 472-4897 CABLE-BATTERY $29.23 1 usually ships 17-28 days
12 472-4901 HARNESS-BATTERY MACHINE $113.42 1 usually ships 17-28 days
13 472-4902 HARNESS-BATTERY POWER $108.94 1 usually ships 17-28 days
14 472-4919 2.5 amp circuit breaker $23.01 1 ships same day
15 472-4921 PANEL-ELECTRICAL $64.53 1 usually ships 17-28 days
16 472-4932 150 amp fuse $19.98 1 ships same day
17 472-4933 HOLDER-FUSE $13.76 1 usually ships 17-28 days
18 372-1324 Fuse boot holder $7.67 1 usually ships 17-28 days
19 372-1322 36V diode assembly $26.04 1 usually ships 17-28 days
20 372-0110 Speed controller $326.25 1 usually ships 17-28 days
21 472-5079 CABLE TIE-MOUNT $9.26 5 usually ships 17-28 days
22 372-3148 Connector clip $6.95 1 usually ships 17-28 days
23 172-0236 Diode rectifier assembly $32.69 2 usually ships 17-28 days
24 172-2805 36V contactor $100.10 1 ships same day
25 272-8184 36V 100amp contactor $55.56 1 usually ships 17-28 days
26 272-7727 20amp circuit breaker $29.23 1 ships same day
27 172-0103 Electrical mount $13.76 1 usually ships 1-5 days
28 372-2096 Cable tie $12.31 4 usually ships 17-28 days
29 272-2209 30amp circuit breaker $13.76 3 ships same day
30 372-1323 Bus bar contactor $13.76 1 usually ships 17-28 days
31 270-0015 Battery series cable ring style $24.60 4 ships same day
32 172-1779 36V relay SPST $78.58 1 usually ships 17-28 days
33 N/A Not available Call for price 1 (1/4-20 stud) (only available with KIT1) usually ships 3-26 days
34 999-1261 Washer M6 flat stainless steel $0.99 2 (included in KIT1) ships same day
N/S 372-1325 Harness $567.30 1 usually ships 17-28 days
KIT1 472-4925 ELECTRICAL HARDWARE KIT $29.23 1 (includes 1-7, 33-34) usually ships 17-28 days
