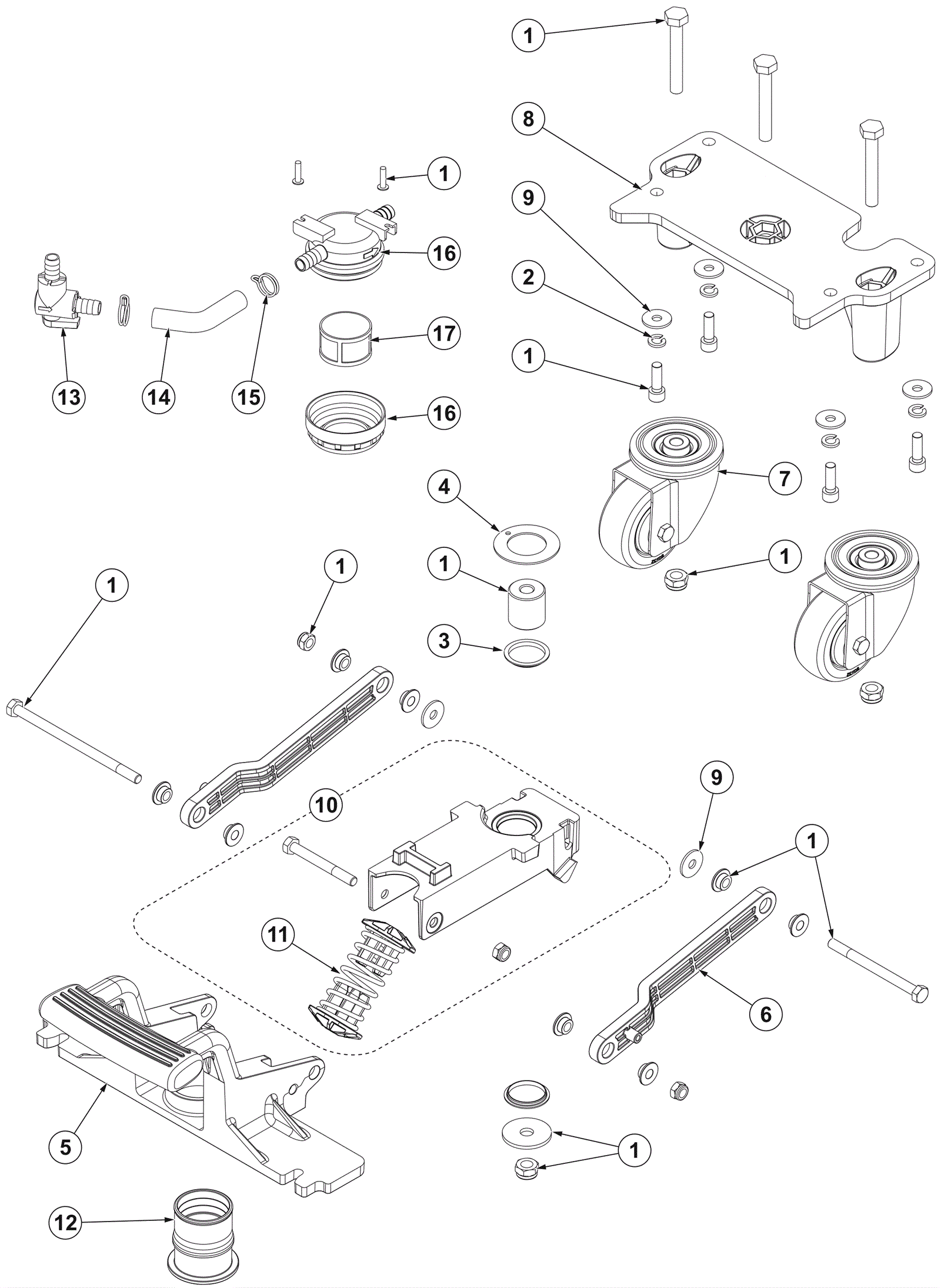

SC 401 Rear Wheel System Assembly

#PartDescriptionPriceReqNotesAvailability
1 372-3387 Rear wheel hardware kit $33.24 1 usually ships 16-41 days
2 472-3362 WASHER M8 UNI1751B $16.50 5 usually ships 16-41 days
3 572-3513 BEARING FLANGE IGLIDUR 2 PCS $10.56 1 usually ships 16-41 days
4 572-3514 WASHER THRUST GTM 3254-015 PKD $10.56 1 usually ships 16-41 days
5 572-3473 SQUEEGEE SUPPORT DOWN PKD $68.62 1 ships same day
6 572-3474 LEVER SQUEEGEE LIFT 2 PCS SET $54.10 1 usually ships 16-41 days
7 372-1227 Rear wheel (pkg of 2) $88.06 1 usually ships 16-41 days
8 372-3388 Rear wheel support $55.65 1 usually ships 16-41 days
9 372-3367 Washer M8 x 24 x 2 plain $15.07 8 usually ships 16-41 days
10 572-3472 SQUEEGEE SUPPORT UP PKD $76.52 1 (includes 11) usually ships 16-41 days
11 372-3389 Spring with terminals $31.83 1 usually ships 16-41 days
12 572-3476 FITTING PKD $11.99 1 usually ships 16-41 days
13 270-0929 Elbow valve with gasket $70.72 1 usually ships 16-41 days
14 372-3390 PVC hose with spiral $11.99 1 usually ships 16-41 days
15 572-3615 CLAMP DOUBLE SPRING $11.99 4 usually ships 16-41 days
16 572-3477 Water filter $40.45 1 ships same day
17 572-3478 NET WATER FLTR REINFORCED PKD $30.28 1 usually ships 16-41 days
