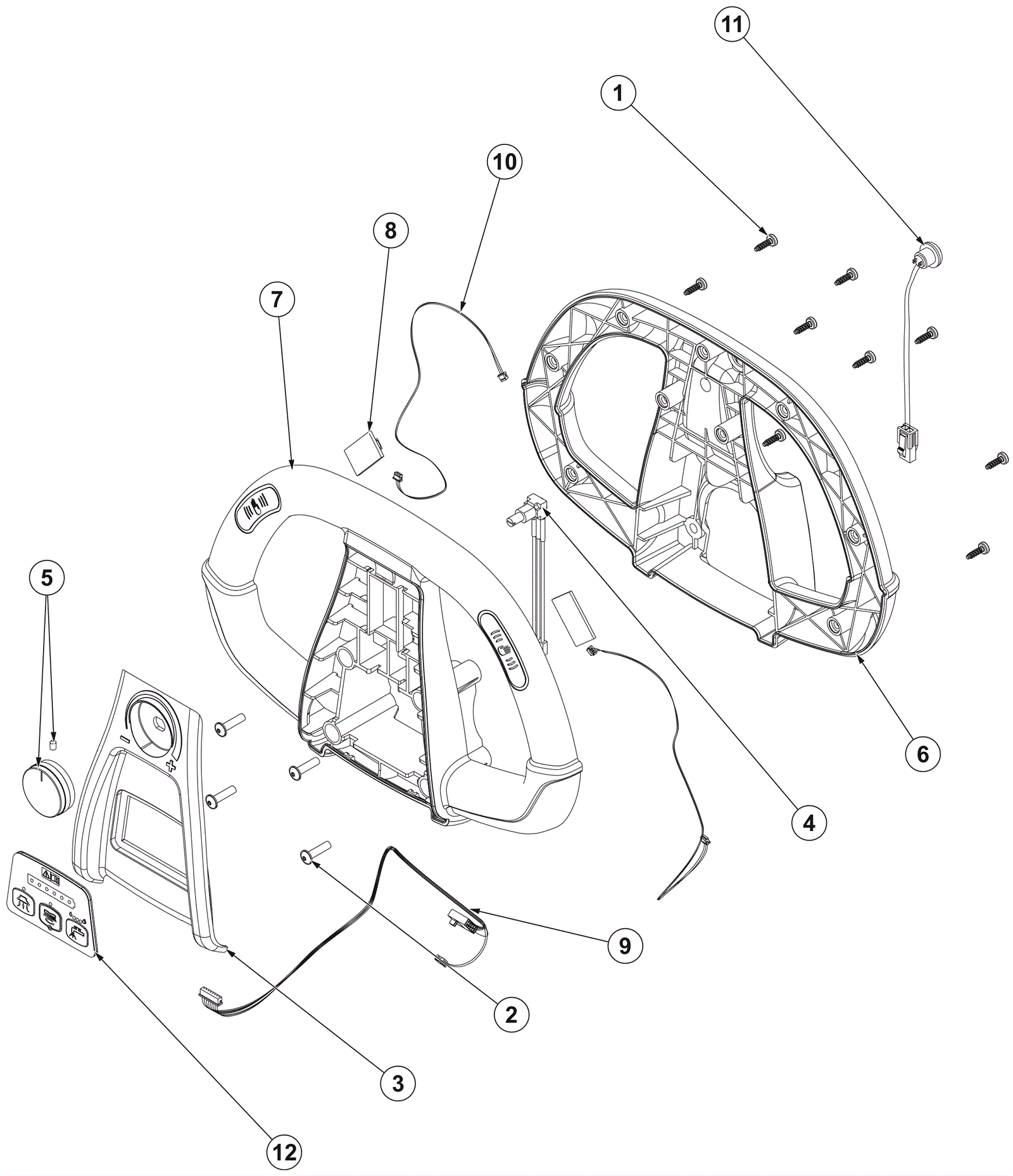

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
172-3861
|
Screw |
$8.20
|
9 |
|
usually ships 6-18 days |
2 |
372-3343
|
Screw M5 x 20 |
$6.79
|
4 |
|
usually ships 6-18 days |
3a |
372-3376
|
Handle center cover |
$24.47
|
1 |
(drive) |
usually ships 6-18 days |
3b |
372-3377
|
Handle center cover |
$24.47
|
1 |
(no drive) |
usually ships 6-18 days |
4 |
270-0389
|
Potentiometer |
$105.02
|
1 |
(drive) |
usually ships 6-18 days |
5 |
270-0386
|
Traction control knob |
$19.09
|
1 |
(drive) |
ships same day |
6a |
372-3380
|
Handle frame |
$25.25
|
1 |
(drive) |
usually ships 6-18 days |
6b |
372-3381
|
Handle bar kit |
$107.57
|
1 |
(no drive) |
usually ships 6-18 days |
7 |
372-3382
|
Handle bar cover (OBSOLETE) |
$27.53
|
1 |
|
usually ships 6-18 days |
8 |
572-3783
|
SENSOR CAPACITIVE PKD |
$27.53
|
2 |
|
usually ships 6-18 days |
9 |
372-3383
|
Dashboard harness |
$31.51
|
1 |
|
usually ships 6-18 days |
10 |
372-3384
|
Handle bar sensor harness |
$13.70
|
2 |
|
usually ships 6-18 days |
11 |
372-3385
|
Switch with connector |
$55.83
|
1 |
(drive) |
usually ships 6-18 days |
12 |
372-3386
|
24V controller user interface |
$76.73
|
1 |
|
usually ships 6-18 days |
