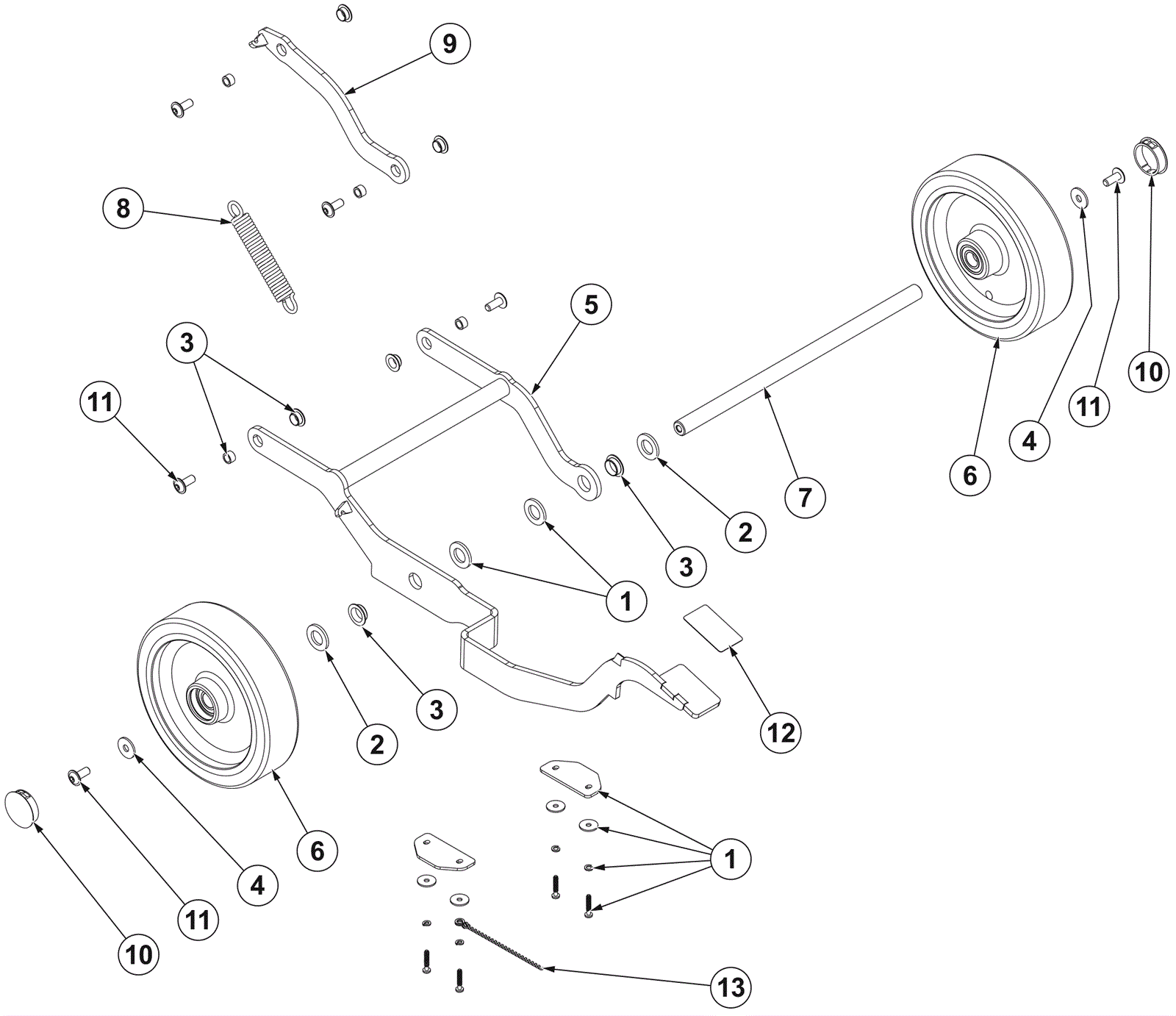

SC 401 Wheel System Assembly (No Drive)

#PartDescriptionPriceReqNotesAvailability
1 372-3370 Front wheels hardware kit $31.83 1 usually ships 16-41 days
2 272-9500 Washer flat $19.45 2 usually ships 16-41 days
3 372-3368 Bushings and bearing pedal system kit $36.07 1 usually ships 16-41 days
4 372-3367 Washer M8 x 24 x 2 plain $15.07 2 usually ships 16-41 days
5 372-3371 Brush lifting pedal $171.88 1 usually ships 16-41 days
6a 372-3372 Wheel $65.65 2 usually ships 16-41 days
6b 372-3373 Front wheel (pkg of 2) $402.90 1 usually ships 16-41 days
7 372-3374 Wheel shaft $25.36 1 usually ships 16-41 days
8 372-3356 Extension spring $13.40 1 usually ships 16-41 days
9 372-3375 Brush deck lever $43.41 1 usually ships 16-41 days
10 372-3364 Dome plug $6.05 1 usually ships 16-41 days
11 372-3365 Screw M8 x 20 button head $9.02 6 usually ships 16-41 days
12 372-3366 Anti-slip surfacing (black) $6.05 1 usually ships 16-41 days
13 372-3363 Chain with eyelet ground kit $7.47 1 usually ships 16-41 days
