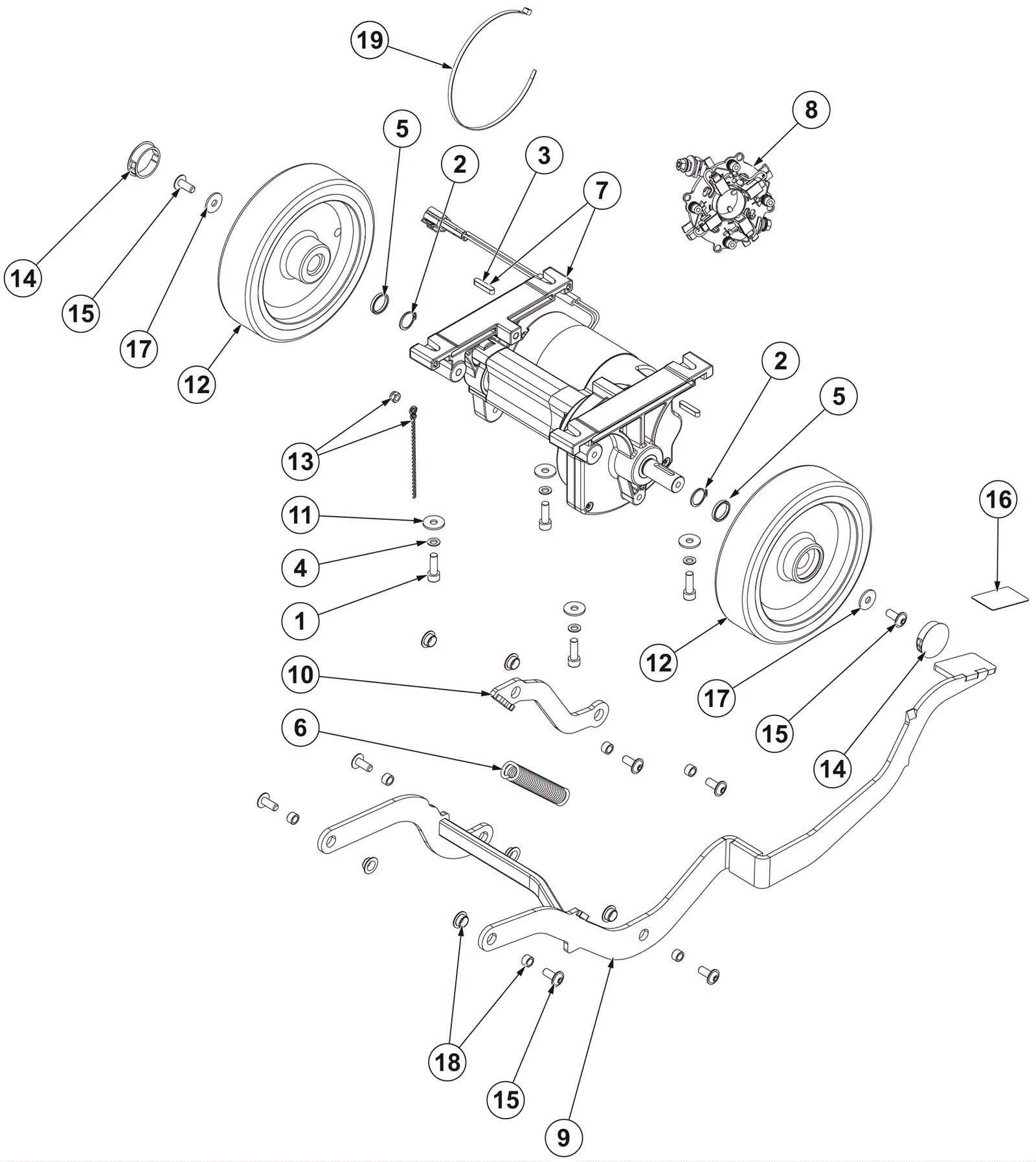

SC 401 Wheel System Assembly (Drive)

#PartDescriptionPriceReqNotesAvailability
1 372-3354 Screw M8 x 30 zinc (OBSOLETE) Call for price 4 usually ships 16-41 days
2 372-3051 RING D 20 UNI7435 $33.24 1 usually ships 16-41 days
3 572-3614 KEY JOINT 6X30 10 PCS SET $11.99 1 usually ships 16-41 days
4 372-3355 Washer M8 $11.99 4 usually ships 16-41 days
5 572-3617 SPACER 20.5X25X4 10 PCS SET $46.92 1 usually ships 16-41 days
6 372-3356 Extension spring $13.40 1 usually ships 16-41 days
7 372-3357 24V drive motor $1,073.64 1 usually ships 16-41 days
8 372-3358 Carbon brushes with holder $425.30 1 usually ships 16-41 days
9 372-3359 Brush lifting pedal $194.27 1 usually ships 16-41 days
10 372-3360 Brush deck drive lever $46.92 1 usually ships 16-41 days
11 372-3361 Washer M8 x 1.25 $5.39 4 usually ships 16-41 days
12 372-3362 Traction wheel $116.92 2 usually ships 16-41 days
13 372-3363 Chain with eyelet ground kit $7.47 1 usually ships 16-41 days
14 372-3364 Dome plug $6.05 1 usually ships 16-41 days
15 372-3365 Screw M8 x 20 button head $9.02 5 usually ships 16-41 days
16 372-3366 Anti-slip surfacing (black) $6.05 1 usually ships 16-41 days
17 372-3367 Washer M8 x 24 x 2 plain $15.07 5 usually ships 16-41 days
18 372-3368 Bushings and bearing pedal system kit $36.07 1 usually ships 16-41 days
19 372-3369 Cable tie (pkg of 2) $7.47 1 usually ships 16-41 days
