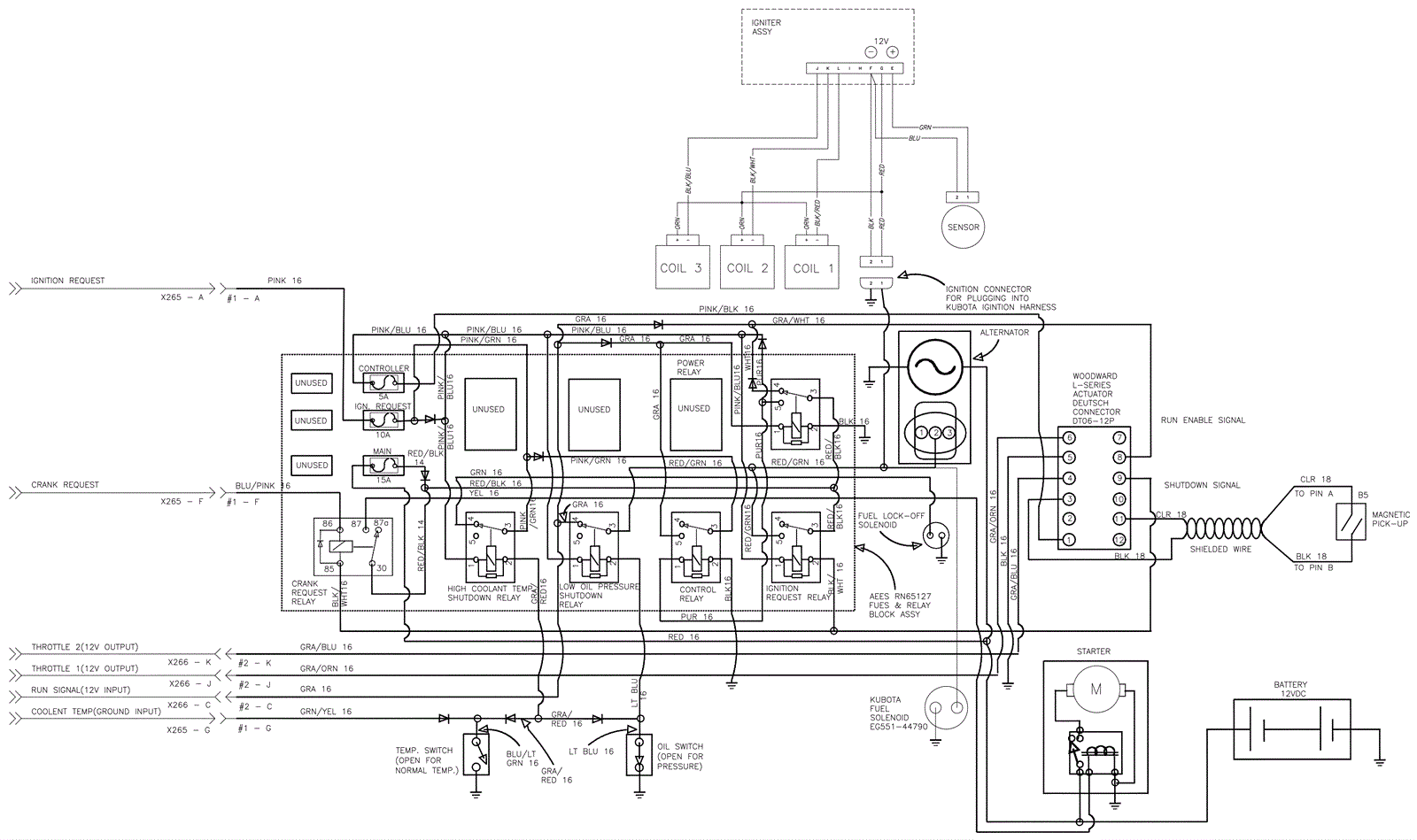

Kubota LPG Engine Ladder Diagram
Click to enlarge
#
Part
Description
Req
Notes
Availability
372-2788
Alternator with pulley
1
372-2787
LP lock off with filter
1
472-9176
SWITCH ENGINE OIL PRESSURE
1
272-7814
Temperature switch
1
372-2158
Starter motor
1
