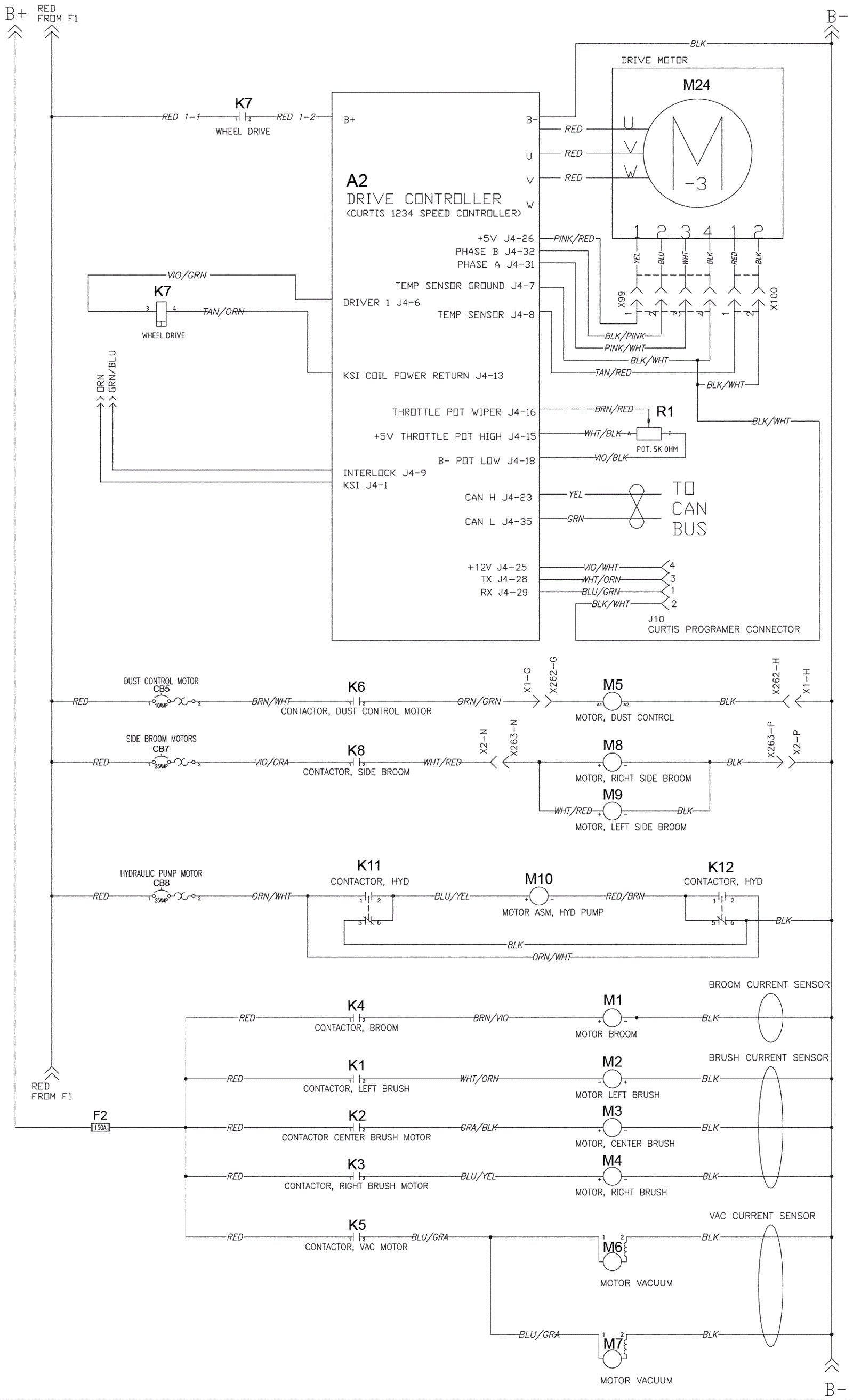

CS 7000 Ladder Diagram 3

#PartDescriptionPriceReqNotesAvailability
A2 372-1508 Traction controller kit $1,683.87 1 usually ships 13-18 days
CB5 272-9374 10amp circuit breaker $25.75 1 usually ships 13-18 days
CB7 272-6708 25amp circuit breaker $20.91 1 ships same day
CB8 272-6708 25amp circuit breaker $20.91 1 ships same day
F2 172-8836 150amp fuse $20.59 1 usually ships 13-18 days
K1 172-2805 36V contactor $104.81 1 ships same day
K2 172-2805 36V contactor $104.81 1 ships same day
K3 172-2805 36V contactor $104.81 1 ships same day
K4 172-2805 36V contactor $104.81 1 ships same day
K5 172-2805 36V contactor $104.81 1 ships same day
K6 172-2805 36V contactor $104.81 1 ships same day
K7 472-5722 CONTACTOR 36V TYPE 4 $201.03 1 usually ships 13-18 days
K8 172-2805 36V contactor $104.81 1 ships same day
K11 272-1322 Motor contactor $232.99 1 usually ships 13-18 days
K12 272-1322 Motor contactor $232.99 1 usually ships 13-18 days
M1 472-8051 MOTOR-36 VDC-3000 RPM-1.1 HP $1,138.85 1 usually ships 13-18 days
M2 372-2907 Scrub motor assembly (OBSOLETE) $2,385.48 1 usually ships 13-18 days
M3 372-2907 Scrub motor assembly (OBSOLETE) $2,385.48 1 usually ships 13-18 days
M4 372-2908 Scrub motor assembly $1,523.15 1 usually ships 13-18 days
M5 372-2997 Impeller assembly $1,363.34 1 usually ships 13-18 days
M6 372-2874 36V vacuum motor $505.34 1 usually ships 13-18 days
M7 372-2874 36V vacuum motor $505.34 1 usually ships 13-18 days
M8 472-8233 SIDE BROOM MOTOR KIT $3,126.29 1 usually ships 13-18 days
M9 472-8233 SIDE BROOM MOTOR KIT $3,126.29 1 usually ships 13-18 days
M10 372-2833 36V motor $609.41 1 usually ships 13-18 days
M24 372-2998 Traction motor $3,438.92 1 usually ships 13-18 days
R1 N/A Not available Call for price 1 (part of 272-880) usually ships 3-26 days
N/S 372-2854 Brush motor kit $336.01 1 (for M1) usually ships 13-18 days
N/S 572-4029 Brush motor kit $281.00 1 (for M2) usually ships 13-18 days
N/S 572-4029 Brush motor kit $281.00 1 (for M3) usually ships 13-18 days
N/S 572-4029 Brush motor kit $281.00 1 (for M4) usually ships 13-18 days
N/S 372-2933 Motor brush kit $86.94 1 (for M8 and M9) usually ships 13-18 days
