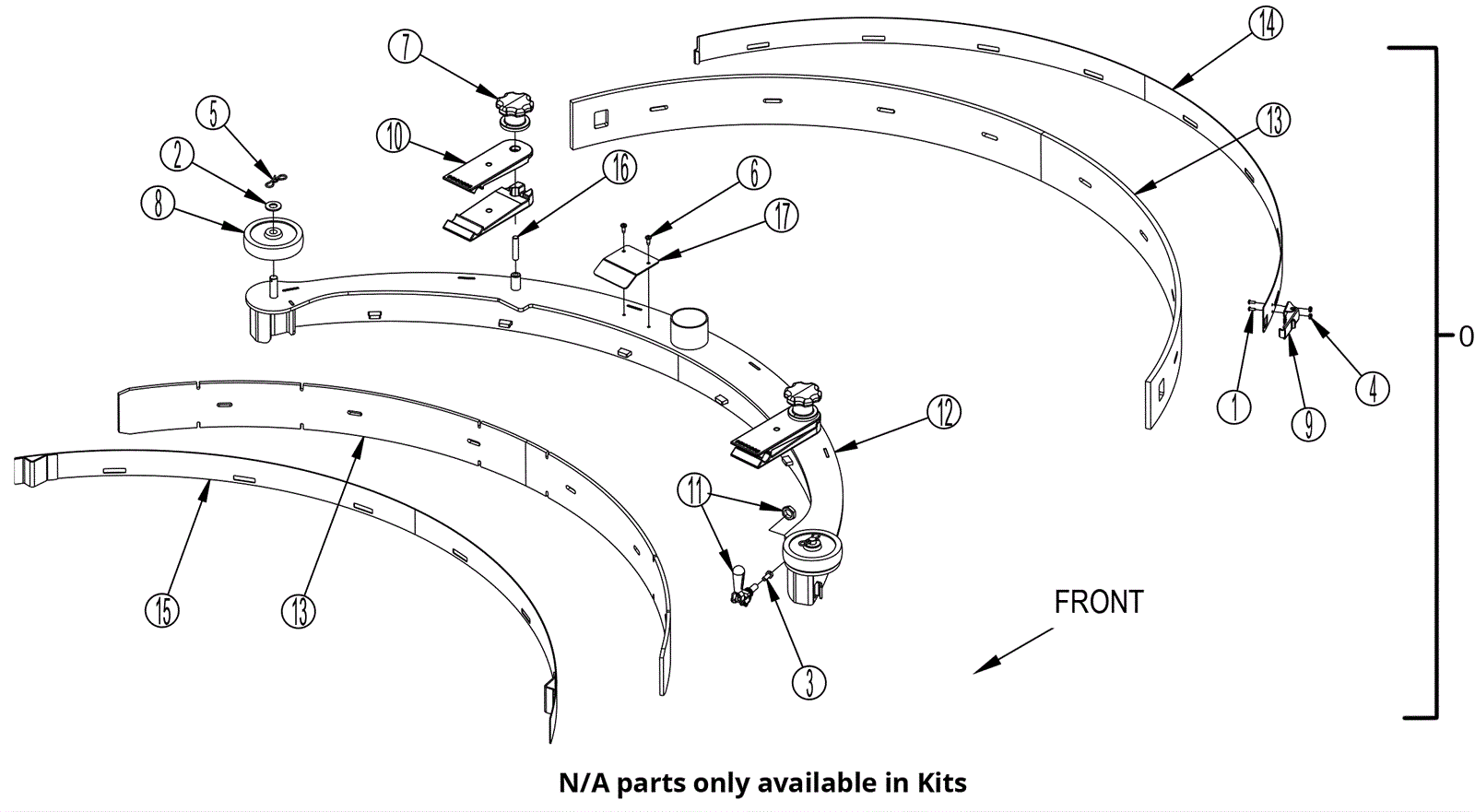

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
372-2958
|
Squeegee tool assembly |
$2,297.10
|
1 |
(includes 1-17) |
usually ships 17-28 days |
1 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
$0.99
|
2 |
(included in KIT2) |
ships same day |
2 |
999-0114
|
Washer 1/2 SAE flat |
$0.99
|
2 |
(included in KIT3) |
ships same day |
3 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
$0.99
|
1 |
(included in KIT4) |
ships same day |
4 |
N/A
|
Not available |
Call for price
|
2 |
(nut) (only available in KIT2) |
usually ships 3-26 days |
5 |
N/A
|
Not available |
Call for price
|
2 |
(bow tie cotter pin) (only available in KIT3) |
usually ships 3-26 days |
6 |
N/A
|
Not available |
Call for price
|
2 |
(screw) (only available in KIT4) |
usually ships 3-26 days |
7 |
272-4838
|
Squeegee knob |
$11.57
|
2 |
|
usually ships 17-28 days |
8 |
172-2085
|
Wheel |
$54.11
|
2 |
(included in KIT3) |
ships same day |
9 |
N/A
|
Not available |
Call for price
|
1 |
(latch assembly) (only available in KIT2) |
usually ships 3-26 days |
10 |
N/A
|
Not available |
Call for price
|
4 |
(squeegee clip) (only available in KIT1) |
usually ships 3-26 days |
11 |
372-2969
|
Push pull clamp |
$80.16
|
1 |
|
usually ships 17-28 days |
12 |
N/A
|
Not available |
Call for price
|
1 |
(squeegee weldment) (order 372-2958 if you need to replace) |
usually ships 3-26 days |
13 |
372-1145
|
Squeegee blade kit gum rubber (red) |
$209.36
|
1 |
(all squeegee blade kits include both front and rear squeegee blades) |
usually ships 17-28 days |
14 |
372-2970
|
Squeegee strap |
$51.21
|
1 |
|
usually ships 17-28 days |
15 |
372-2971
|
Weldment strap |
$90.43
|
1 |
|
usually ships 17-28 days |
16 |
372-2972
|
Stud 3/8-16 x 1 3/4 |
$12.31
|
2 |
|
usually ships 17-28 days |
17 |
372-2973
|
Adjustment plate |
$13.76
|
1 |
|
usually ships 17-28 days |
N/S |
372-1145
|
Squeegee blade kit gum rubber (red) |
$209.36
|
1 |
(all squeegee blade kits include both front and rear squeegee blades) |
usually ships 17-28 days |
N/S |
572-1606
|
BLADE KIT-SQGEE-GUM |
$160.86
|
1 |
(all squeegee blade kits include both front and rear squeegee blades) (optional) |
usually ships 17-28 days |
N/S |
572-1607
|
BLADE KIT-SQGEE-PU |
$383.41
|
1 |
(all squeegee blade kits include both front and rear squeegee blades) (optional) |
usually ships 17-28 days |
KIT1 |
372-2974
|
Squeegee clip kit |
$93.46
|
1 |
(includes 10) |
usually ships 17-28 days |
KIT2 |
372-2975
|
Squeegee latch kit |
$57.16
|
1 |
(includes 1, 4, 9) |
usually ships 17-28 days |
KIT3 |
372-2976
|
Squeegee wheel kit |
$90.43
|
1 |
(includes 2, 5, 8) |
usually ships 17-28 days |
KIT4 |
372-2977
|
Squeegee tool hardware kit |
$65.97
|
1 |
(includes 3 and 6) |
usually ships 17-28 days |
