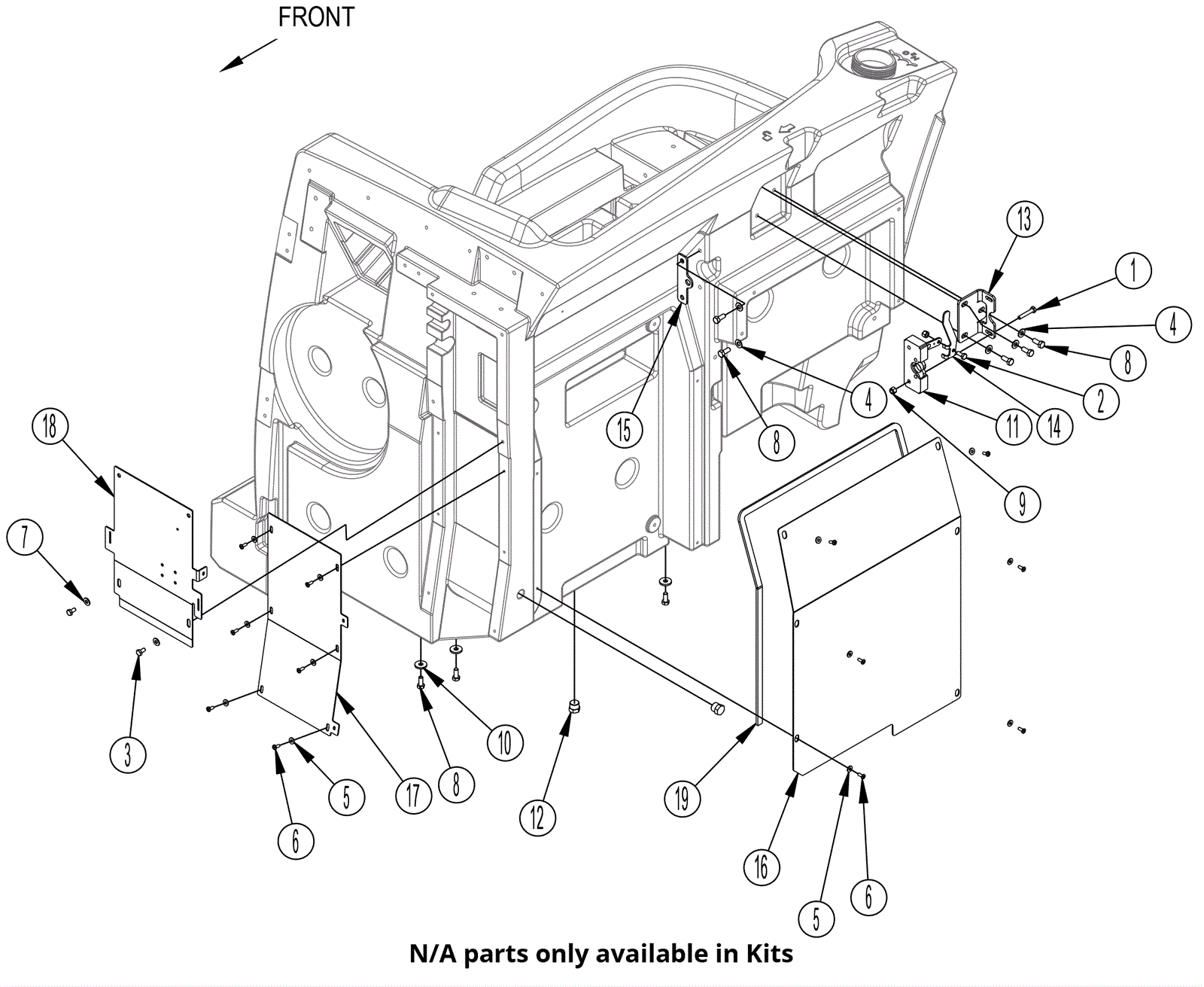

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1260
|
Screw 1/4-20 x 1 1/2 hex cap stainless steel |
1 |
(included in KIT3) |
|
2 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
1 |
(included in KIT3) |
|
3 |
999-1532
|
Screw 1/4-20 x 1/2 hex head stainless steel |
2 |
(included in KIT4) |
|
4 |
999-9004
|
Washer 5/16 SAE flat stainless steel |
5 |
(included in KIT3 and KIT4) |
|
5 |
999-1862
|
Washer #10 flat SAE stainless steel |
12 |
(included in KIT4) |
|
6 |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
12 |
(included in KIT4) |
|
7 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
(included in KIT4) |
|
8 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
8 |
(included in KIT3 and KIT4) |
|
9 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
(included in KIT3) |
|
10 |
N/A
|
Not available |
3 |
(washer) (only available in KIT4) |
|
11 |
272-7623
|
Right side latch |
1 |
(included in KIT3) |
|
12 |
272-9915
|
Pipe plug |
2 |
|
|
13 |
N/A
|
Not available |
1 |
(latch mount bracket) (only available in KIT3) |
|
14 |
N/A
|
Not available |
1 |
(recovery latch handle) (only available in KIT3) |
|
15 |
372-2952
|
Tether hook |
1 |
|
|
16 |
372-2953
|
Contactor panel cover |
1 |
|
|
17 |
372-2954
|
Cover panel |
1 |
|
|
18 |
372-2955
|
Fuse cover panel |
1 |
|
|
19 |
372-2956
|
Plate gasket |
1 |
|
|
KIT3 |
372-2957
|
Recovery tank latch kit |
1 |
(includes 1-4, 8-9, 11, 13-14) |
|
KIT4 |
372-2951
|
Solution system hardware kit |
1 |
(includes 3-8, 10) |
|
