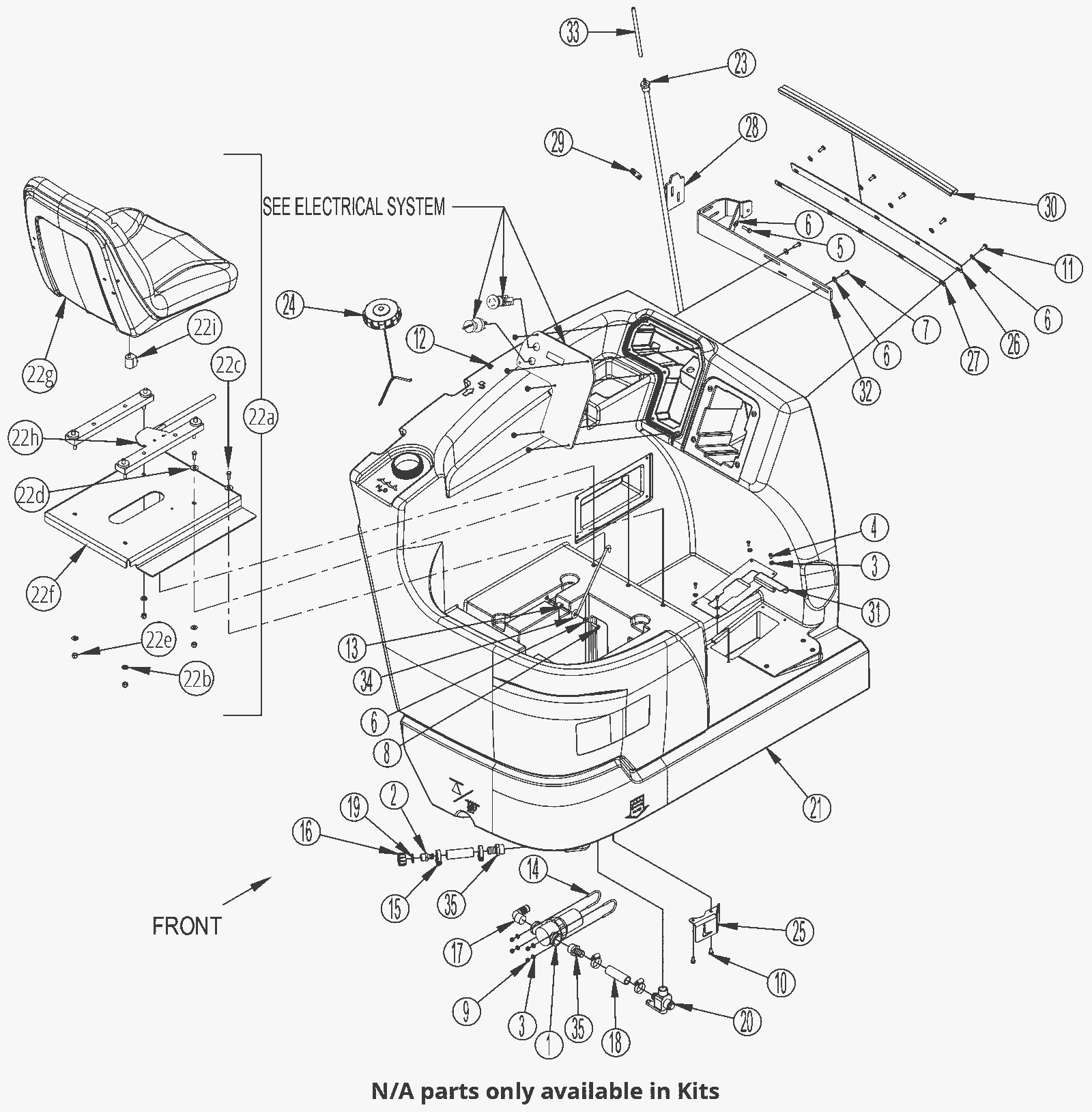

Solution System Assembly 1

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (filter) (only avaialble in KIT1)
2 N/A Not available 1 (barb) (only available in KIT2)
3 999-1862 Washer #10 flat SAE stainless steel 8 (included in KIT1 and KIT4)
4 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 4 (included in KIT4)
5 999-0830 Screw 1/4-20 x 1 hex head plain finish 1 (included in KIT4)
6 999-0123 Washer 1/4 SAE flat zinc plated 9 (included in KIT4)
7 N/A Not available 2 (screw) (only available in KIT4)
8 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 1
9 999-0199 Nut 10-24 nylon insert lock zinc plated 4 (included in KIT1)
10 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 2 (included in KIT1)
11 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 5 (included in KIT4)
13 181-0421 Spacer 1
14 272-3968 U-bolt 2
15 N/A Not available 4 (clamp) (only available in KIT1 and KIT2)
16 N/A Not available 1 (pipe cap) (only available in KIT2)
17 472-6384 BARB ELBOW MALE 90 E00037 1 (included in KIT1)
18 N/A Not available 2 (hose) (only available in KIT1 and KIT2)
19 N/A Not available 1 (washer) (only available in KIT2)
20 N/A Not available 1 (solution valve) (only available in KIT1)
21 372-2939 Solution tank 1
22a N/A Not available 1 (seat assembly) (includes 22b-22i)
22b 999-0024 Washer 5/16 flat stainless steel 4
22c 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 3
22d 999-0024 Washer 5/16 flat stainless steel 3
22e 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
22f 372-2940 Seat mount weldment 1
22g 272-7645 Seat (OBSOLETE) 1
22h 170-8321 Seat adjuster kit 1
22i 272-9417 Seat switch 1
23 372-2941 Pressure sensing tube assembly 1
24 272-9352 Raw cap with tether 1
25 N/A Not available 1 (valve shield) (only available in KIT1)
26 372-2942 Plate seal 1
27 372-2943 Plate spacer 1
28 372-2944 Plate (OBSOLETE) 1
29 372-1408 Nut plate 1
30 372-2945 Bulb seal 1
31 372-2946 Cover weldment (OBSOLETE) 1
32 372-2947 Cover hanger weldment (OBSOLETE) 1
33 372-2948 Tygon tube 1
34 272-8795 Seat rod 1
35 172-0261 Barb adapter 2 (included in KIT1)
KIT1 372-2949 Solution filter kit 1 (includes 1, 3, 9-10, 15, 17-18, 20, 25, 35)
KIT2 372-2950 Solution drain hose kit 1 (includes 2, 15-16, 18-19)
KIT4 372-2951 Solution system hardware kit 1 (includes 3-7, 11-12)
