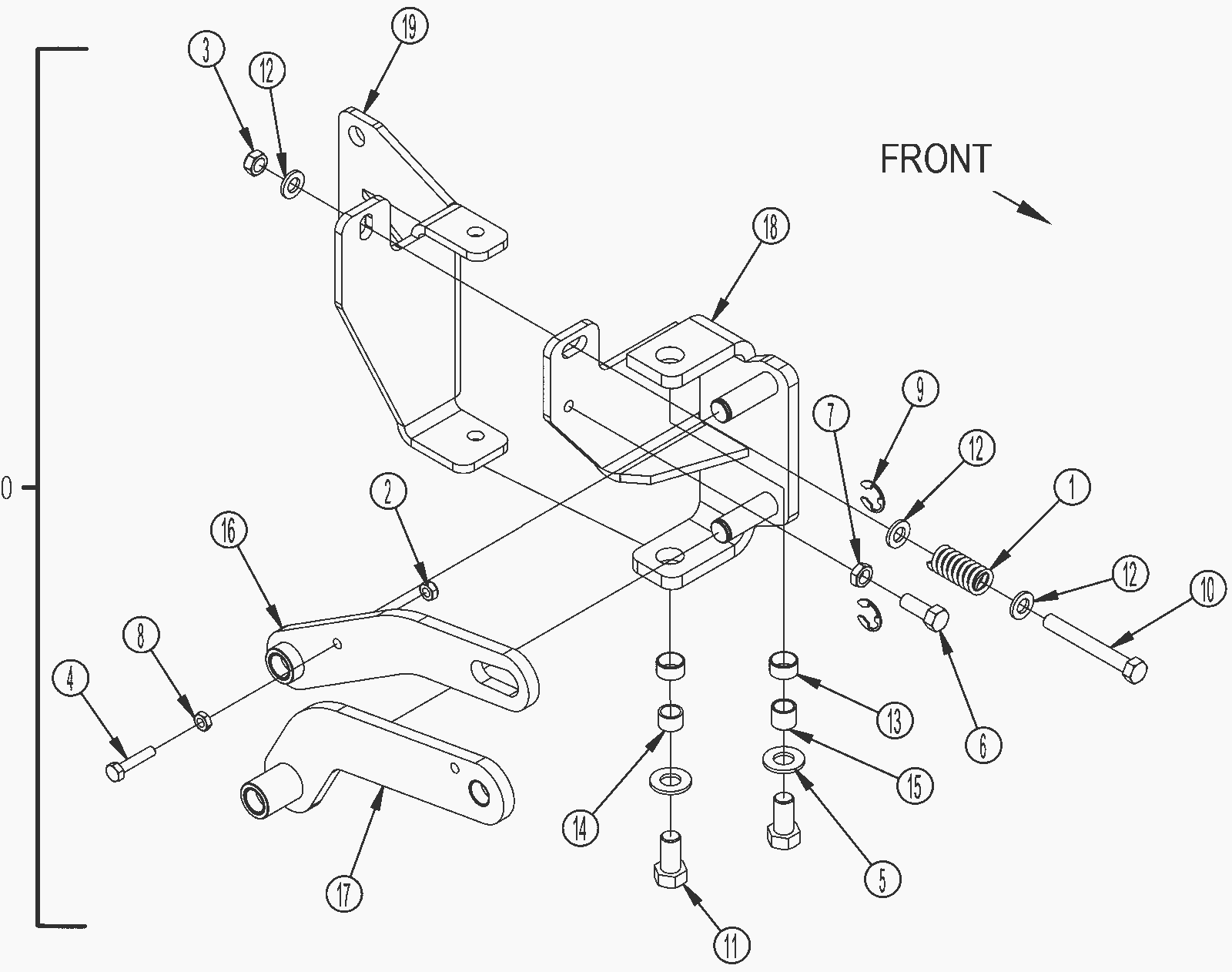

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
172-4521
|
Spring com .75 x 1.68 |
1 |
|
|
2 |
N/A
|
Not available |
1 |
(nut) |
|
3 |
N/A
|
Not available |
1 |
(nut) |
|
4 |
N/A
|
Not available |
1 |
(screw) |
|
5 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
6 |
999-1531
|
Screw 3/8-16 x 1 hex washer head zinc plated |
1 |
|
|
7 |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
1 |
|
|
8 |
999-0181
|
Nut 1/4-20 hex jam plain finish |
1 |
|
|
9 |
N/A
|
Not available |
2 |
(ring) |
|
10 |
999-9094
|
Screw 3/8-16 x 3 hex head stainless steel |
1 |
|
|
11 |
N/A
|
Not available |
2 |
(screw) |
|
12 |
N/A
|
Not available |
3 |
(washer) |
|
13 |
N/A
|
Not available |
2 |
(bearing) |
|
14 |
N/A
|
Not available |
1 |
(bushing) |
|
15 |
N/A
|
Not available |
1 |
(bushing) |
|
16 |
N/A
|
Not available |
1 |
(upper arm assembly) |
|
17 |
N/A
|
Not available |
1 |
(lower arm assembly) |
|
18 |
N/A
|
Not available |
1 |
(hinge weldment) |
|
19 |
N/A
|
Not available |
1 |
(hinge weldment) |
|
