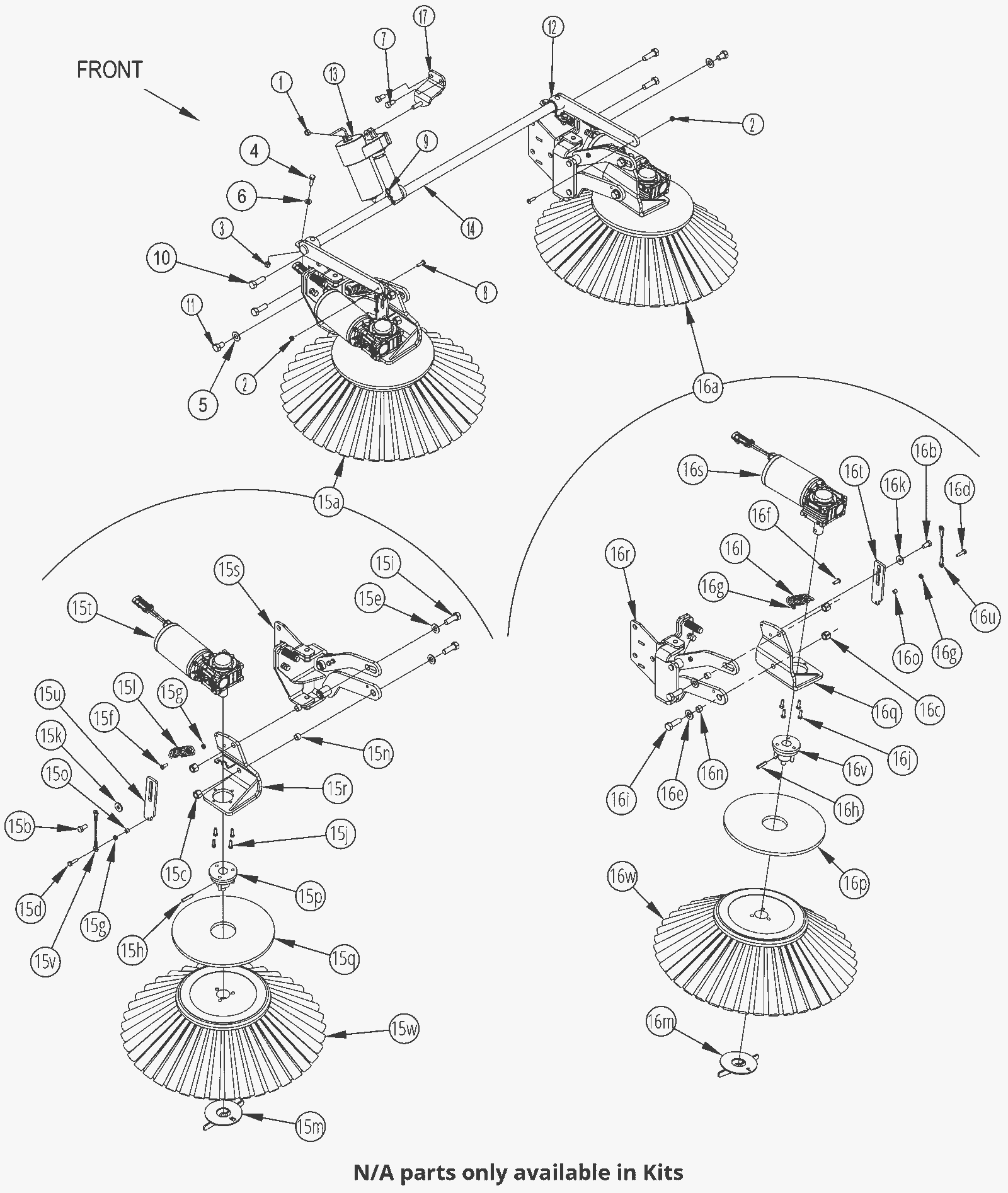

Side Broom System Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (nut) (only available in KIT4)
2 N/A Not available 2 (nut) (only available in KIT4)
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4 (included in KIT1)
4 999-1857 Screw 5/16-18 x 1 hex cap stainless steel 4 (included in KIT1)
5 999-0114 Washer 1/2 SAE flat 2 (included in KIT4)
6 999-9004 Washer 5/16 SAE flat stainless steel 4 (included in KIT1)
7 N/A Not available 2 (screw) (only available in KIT4)
8 999-1136 Screw 1/4-20 x 7/8 pan head phillips stainless steel 2 (included in KIT4)
9 N/A Not available 1 (cotter hair pin) (only available in KIT4)
10 N/A Not available 4 (screw) (only available in KIT4)
11 N/A Not available 2 (screw) (only available in KIT4)
12 N/A Not available 2 (bearing) (only available in KIT1)
13 272-7198 36V actuator 1
14 372-2925 Side broom lift weldment 1
15a 372-2926 Right hand broom assembly 1 (includes 15b-15w)
15b 999-0882 Screw 3/8-16 x 3/4 hex head hot dipped galvanized 1 (included in KIT2)
15c 999-1208 Nut 1/2-13 nylon insert lock stainless steel 2 (included in KIT2)
15d 999-0830 Screw 1/4-20 x 1 hex head plain finish 1 (included in KIT2)
15e 999-0114 Washer 1/2 SAE flat 2 (included in KIT2)
15f 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 1 (included in KIT2 and KIT5)
15g 999-0181 Nut 1/4-20 hex jam plain finish 2 (included in KIT2 and KIT5)
15h N/A Not available 1 (pin) (only available in KIT5)
15i N/A Not available 2 (screw) (only available in KIT2)
15j N/A Not available 4 (screw) (only available in KIT5)
15k N/A Not available 1 (washer) (only available in KIT2)
15l 181-0142 Extension spring 1
15m 272-3956 Right hand thumb nut 1
15n N/A Not available 2 (bushing) (only available in KIT2)
15o N/A Not available 1 (bushing) (only available in KIT2)
15p 372-2927 Side broom hub assembly 1
15q 372-2928 Side broom guard 1
15r N/A Not available 1 (right hand motor braket weldment) (only available in KIT2)
15s N/A Not available 1 (right hand squeegee blade arm assembly) (only available in KIT2)
15t 472-8233 SIDE BROOM MOTOR KIT 1
15u N/A Not available 1 (lift bracket) (only available in KIT2)
15v N/A Not available 1 (cable assembly) (only available in KIT2)
15w 372-2929 Side broom 1
16a 372-2930 Left hand broom assembly 1 (includes 16b-16w)
16b N/A Not available 1 (screw) (only available in KIT3)
16c 999-1208 Nut 1/2-13 nylon insert lock stainless steel 2 (included in KIT3)
16d 999-0830 Screw 1/4-20 x 1 hex head plain finish 1 (included in KIT3)
16e 999-0114 Washer 1/2 SAE flat 2 (included in KIT3)
16f 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 1 (included in KIT3 and KIT5)
16g 999-0181 Nut 1/4-20 hex jam plain finish 2 (included in KIT3 and KIT5)
16h N/A Not available 1 (pin) (only available in KIT5)
16i N/A Not available 2 (screw) (only available in KIT3)
16j 999-1312 Screw M6-1 x 20mm hex head stainless steel 4 (included in KIT5)
16k N/A Not available 1 (washer) (only available in KIT3)
16l N/A Not available 1 (extension spring) (only available in KIT3)
16m 272-3948 Left hand thumb nut 1
16n N/A Not available 2 (bushing) (only available in KIT3)
16o N/A Not available 1 (bushing) (only available in KIT3)
16p 372-2928 Side broom guard 1
16q N/A Not available 1 (left hand motor braket weldment) (only available in KIT3)
16r N/A Not available 1 (left hand squeegee blade arm assembly) (only available in KIT3)
16s 472-8233 SIDE BROOM MOTOR KIT 1
16t N/A Not available 1 (swueegee blade lift bracket) (only available in KIT3)
16u N/A Not available 1 (cable assembly) (only available in KIT3)
16v 372-2931 Left hand squeegee blade hub assembly 1
16w 372-2929 Side broom 1
17 372-2932 Actuator bracket weldment 1
N/S 372-2933 Motor brush kit 1 (for 15t and 16s)
KIT1 372-2934 Broom bearing kit 1 (includes 3-4, 6, 12,
KIT2 372-2935 Right hand broom bracket kit 1 (includes 15b-15g, 15i, 15k, 15n-15o, 15r-15s, 15u-15v)
KIT3 372-2936 Left hand broom bracket kit 1 (includes 16b-16g, 16i, 16k-16l, 16n-16o, 16q-16r, 16t-16u)
KIT4 372-2937 Broom system hardware kit 1 (includes 1-2, 5, 7-11)
KIT5 372-2938 Broom assembly hardware kit 1 (includes 15f-15h, 15j, 16f-16h, 16j)
