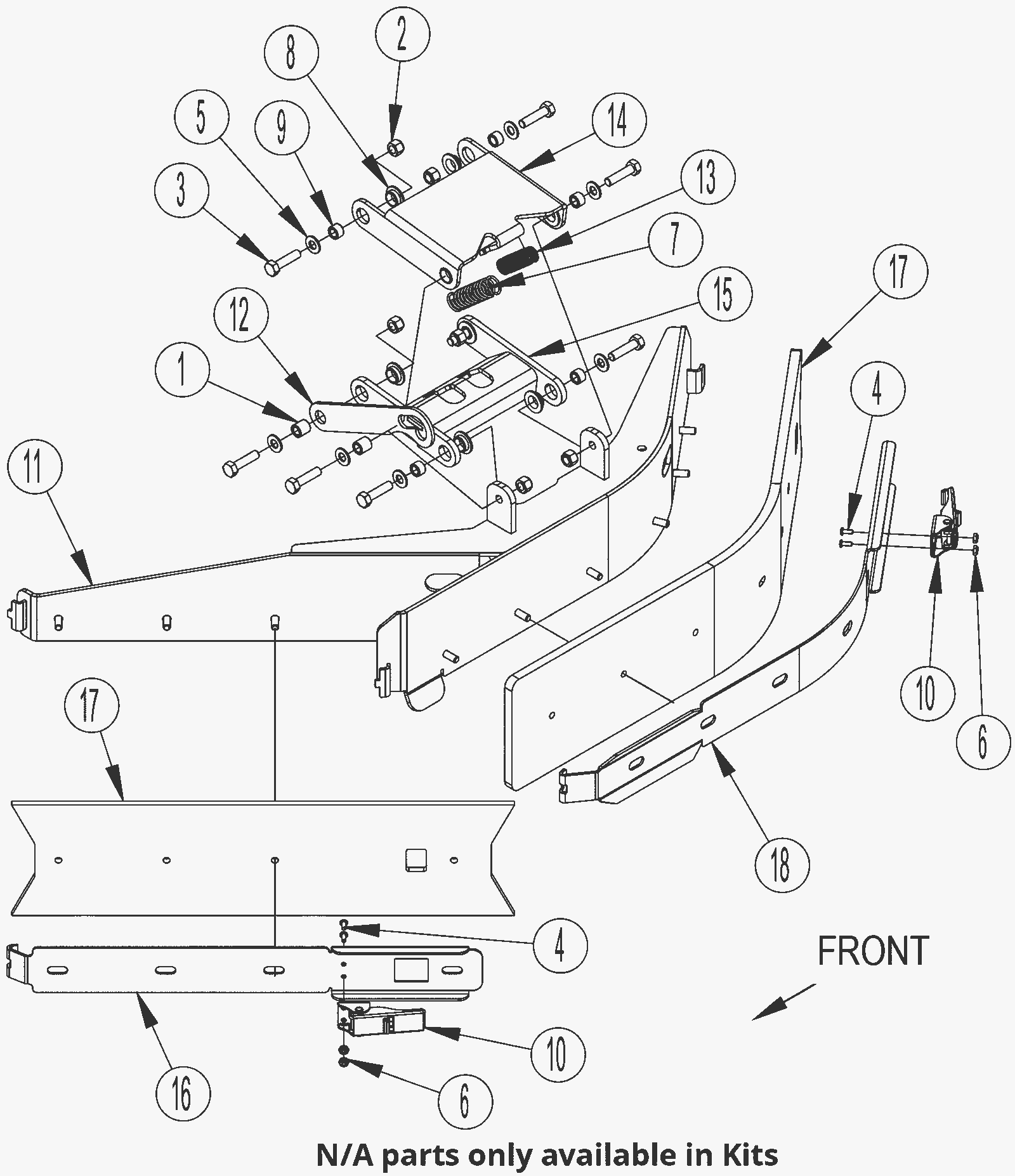

Left Skirt Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 2 (bushing) (only available in KIT1)
2 999-0423 Nut 5/16-18 nylon insert lock stainless steel 8 (included in KIT1)
3 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish 8 (included in KIT1)
4 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 4 (included in KIT2 and KIT3)
5 999-9004 Washer 5/16 SAE flat stainless steel 8 (included in KIT1)
6 N/A Not available 4 (nut) (only available in KIT2 and KIT3)
7 472-6259 SPRING EXTENSION 1 (included in KIT1)
8 N/A Not available 8 (flange bearing) (only available in KIT1)
9 N/A Not available 6 (bushing) (only avilable in KIT1)
10 N/A Not available 2 (latch assembly) (only available in KIT2 and KIT3)
11 372-2922 Blade support weldment 1
12 372-2914 Catch plate 1 (included in KIT1)
13 372-2915 Extension spring 1 (included in KIT1)
14 N/A Not available 1 (side squeegee weldment arm) (only available in KIT1)
15 N/A Not available 1 (side squeegee weldment arm) (only available in KIT1)
16 N/A Not available 1 (blade strap) (only available in KIT2)
17 372-2911 Blade kit red gum 1 (all deck blade kits includes all blades for both skirt assemblies)
18 N/A Not available 1 (blade strap) (only available in KIT3)
N/S 372-2911 Blade kit red gum 1 (all deck blade kits includes all blades for both skirt assemblies)
N/S 372-2916 Blade kit gum rubber 1 (all deck blade kits includes all blades for both skirt assemblies) (optional)
N/S 372-2917 Blade kit polyurethane 1 (all deck blade kits includes all blades for both skirt assemblies) (optional)
KIT1 372-2918 Left hand squeegee arm kit 1 (includes 1-3, 5, 7-9, 12-15)
KIT2 372-2923 Left hand front squeegee strap kit 1 (includes 4, 6, 10, 16)
KIT3 372-2924 Left hand rear squeegee strap kit 1 (includes 4, 6. 10, 18)
