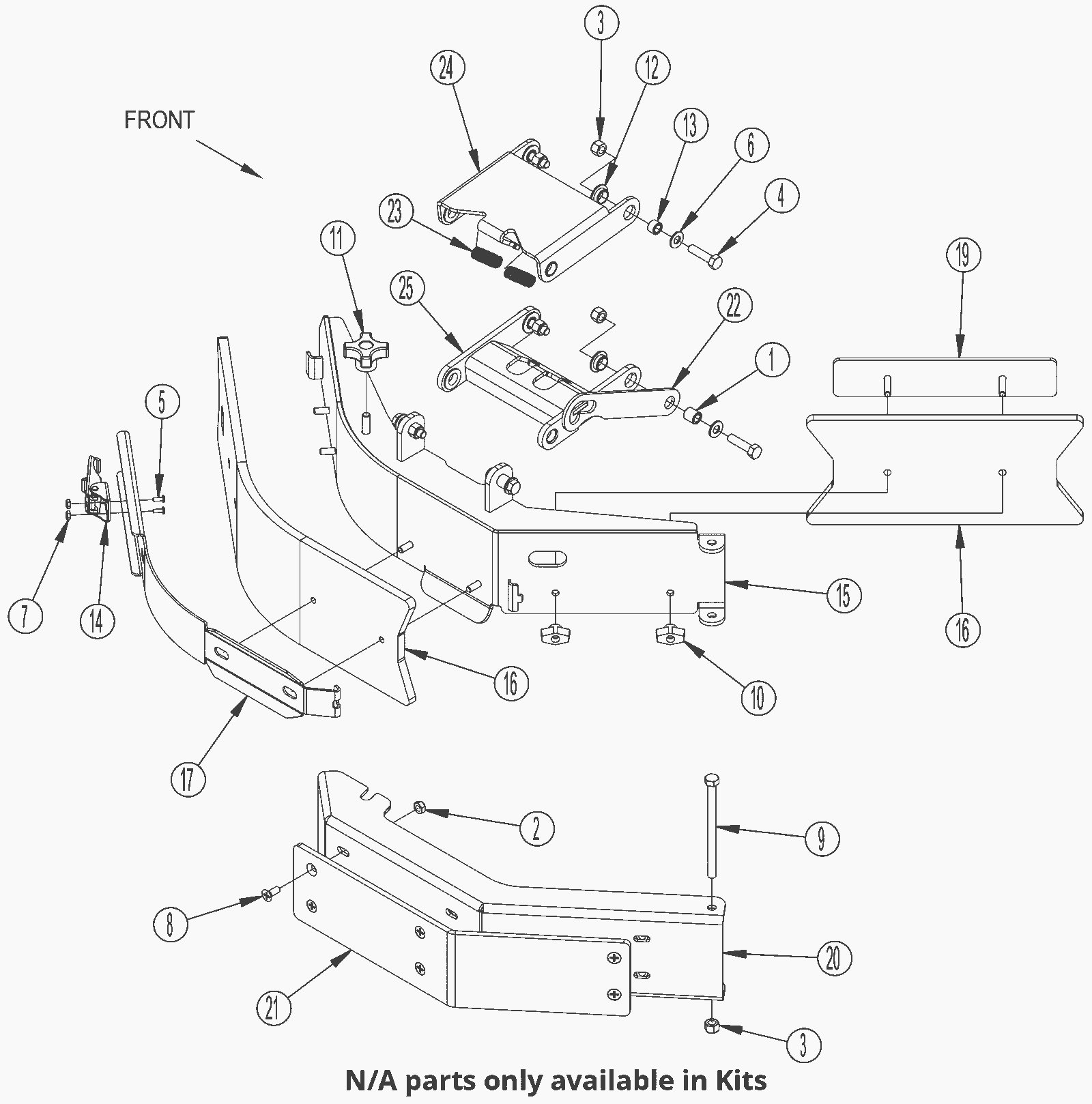

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
2 |
(bushing) (only available in KIT1) |
|
2 |
N/A
|
Not available |
6 |
(nut) (only available in KIT4) |
|
3 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
9 |
(included in KIT1 and KIT3) |
|
4 |
999-0829
|
Screw 5/16-18 x 1 1/4 hex head plain finish |
8 |
(included in KIT1) |
|
5 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
(included in KIT2) |
|
6 |
999-9004
|
Washer 5/16 SAE flat stainless steel |
8 |
(included in KIT1) |
|
7 |
N/A
|
Not available |
2 |
(nut) (only available in KIT2) |
|
8 |
999-0457
|
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
6 |
(included in KIT4) |
|
9 |
N/A
|
Not available |
1 |
(screw) (only available in KIT3) |
|
10 |
N/A
|
Not available |
2 |
(wing knob) (only available in KIT3) |
|
11 |
172-2150
|
Knob |
1 |
|
|
12 |
N/A
|
Not available |
8 |
(flange bearing) (only available in KIT1) |
|
13 |
N/A
|
Not available |
6 |
(bushing) (only available in KIT1) |
|
14 |
N/A
|
Not available |
1 |
(latch assembly) (only available in KIT2) |
|
15 |
372-2910
|
Blade support weldment |
1 |
|
|
16 |
372-2911
|
Blade kit red gum |
1 |
(all deck blade kits include all blades for both skirt assemblies) |
|
17 |
N/A
|
Not available |
1 |
(blade strap) (only available in KIT2) |
|
19 |
372-2912
|
Weldment strap |
1 |
|
|
20 |
372-2913
|
Scrub edge guard |
1 |
|
|
21 |
N/A
|
Not available |
1 |
(guard) (only available in KIT4) |
|
22 |
372-2914
|
Catch plate |
1 |
(included in KIT1) |
|
23 |
372-2915
|
Extension spring |
2 |
(included in KIT1) |
|
24 |
N/A
|
Not available |
1 |
(side squeegee weldment arm) (only available in KIT1) |
|
25 |
N/A
|
Not available |
1 |
(side squeegee weldment arm) (only available in KIT1) |
|
N/S |
372-2911
|
Blade kit red gum |
1 |
(all deck blade kits include all blades for both skirt assemblies) |
|
N/S |
372-2916
|
Blade kit gum rubber |
1 |
(all deck blade kits include all blades for both skirt assemblies) (optional) |
|
N/S |
372-2917
|
Blade kit polyurethane |
1 |
(all deck blade kits include all blades for both skirt assemblies) (optional) |
|
KIT1 |
372-2918
|
Left hand squeegee arm kit |
1 |
(includes 1, 3-4, 6, 12-13, 22-25) |
|
KIT2 |
372-2919
|
Side squeegee strap kit |
1 |
(includes 5, 7, 14, 17) |
|
KIT3 |
372-2920
|
Right hand squeegee hardware kit |
1 |
(includes 3, 9-10) |
|
KIT4 |
372-2921
|
Guard kit |
1 |
(includes 2, 8, 21) |
|
