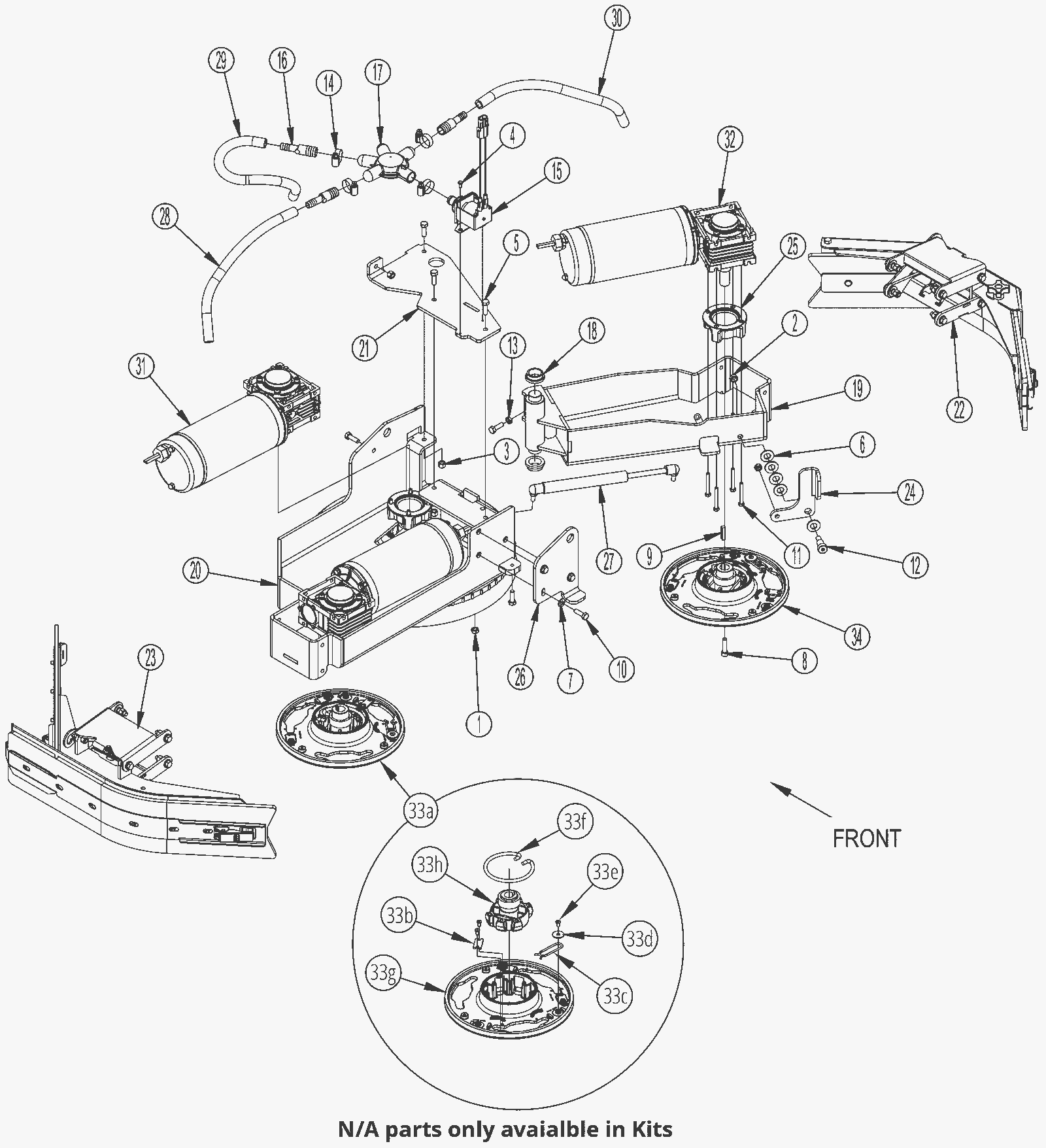

Scrub System Deck Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 2 (nut) (only available in KIT1)
2 N/A Not available 1 (nut) (only available in KIT1)
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4 (included in KIT1)
4 N/A Not available 2 (screw) (only available in KIT1)
5 999-1857 Screw 5/16-18 x 1 hex cap stainless steel 5 (included in KIT1)
6 999-0114 Washer 1/2 SAE flat 5 (included in KIT1)
7 999-9004 Washer 5/16 SAE flat stainless steel 3 (included in KIT1)
8 999-1667 Screw 5/16-18 x 1 1/4 socket head stainless steel 3 (included in KIT1)
9 N/A Not available 3 (key) (only available in KIT1)
10 999-1857 Screw 5/16-18 x 1 hex cap stainless steel 4 (included in KIT1)
11 N/A Not available 12 (screw) (only available in KIT1)
12 N/A Not available 1 (screw) (only available in KIT1)
13 999-1019 Nut 5/16-18 hex jam stainless steel 1 (included in KIT1)
14 997-2004 Hose clamp 4
15 272-2193 Solenoid valve assembly 1
16 272-2213 Coupler 1/2 x 3/4 barb 3
17 272-5788 Solution manifold 1
18 372-2346 Bearing 1 x 1 1/4 x 1/2 2
19 372-2897 Arm weldment (OBSOLETE) 1
20 372-2898 Deck weldment (OBSOLETE) 1
21 372-2899 Pivot plate 1
22 N/A Not available 1 (side squeegee assembly)
23 N/A Not available 1 (side squeegee assembly)
24 372-2900 Lever arm bracket 1
25 372-2901 Motor spacer 3
26 372-2902 Scrub adjustment bracket (OBSOLETE) 1
27 372-2903 Gas spring 1
28 372-2904 Hose push lock 14 1
29 372-2905 Hose push lock 17.5 1
30 372-2906 Hose push lock 16 1
31a 372-2907 Scrub motor assembly (OBSOLETE) 2
31b 572-4029 Brush motor kit 1 (for 31a)
32a 372-2908 Scrub motor assembly 1
32b 572-4029 Brush motor kit 1 (for 32a)
33a 372-1331 Brush plate assembly 2 (includes 33b-33i)
33b 172-0155 Stop plate 1
33c 272-5779 Spring retainer 1
33d 172-0553 Washer 17/64 x 1/16 flat 1
33e 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel 3
33f 272-9884 Brush holder spring 1
33g 272-9885 Brush plate 1
33h 272-7257 6 tab gimbal and collar assembly 1
33i 170-0233 Brush driver collar - See pop-up (OBSOLETE) 1
34 372-1332 Brush plate assembly 1 (use same components as 33a)
KIT1 372-2909 Deck assembly hardware kit 1 (includes 1-13)
