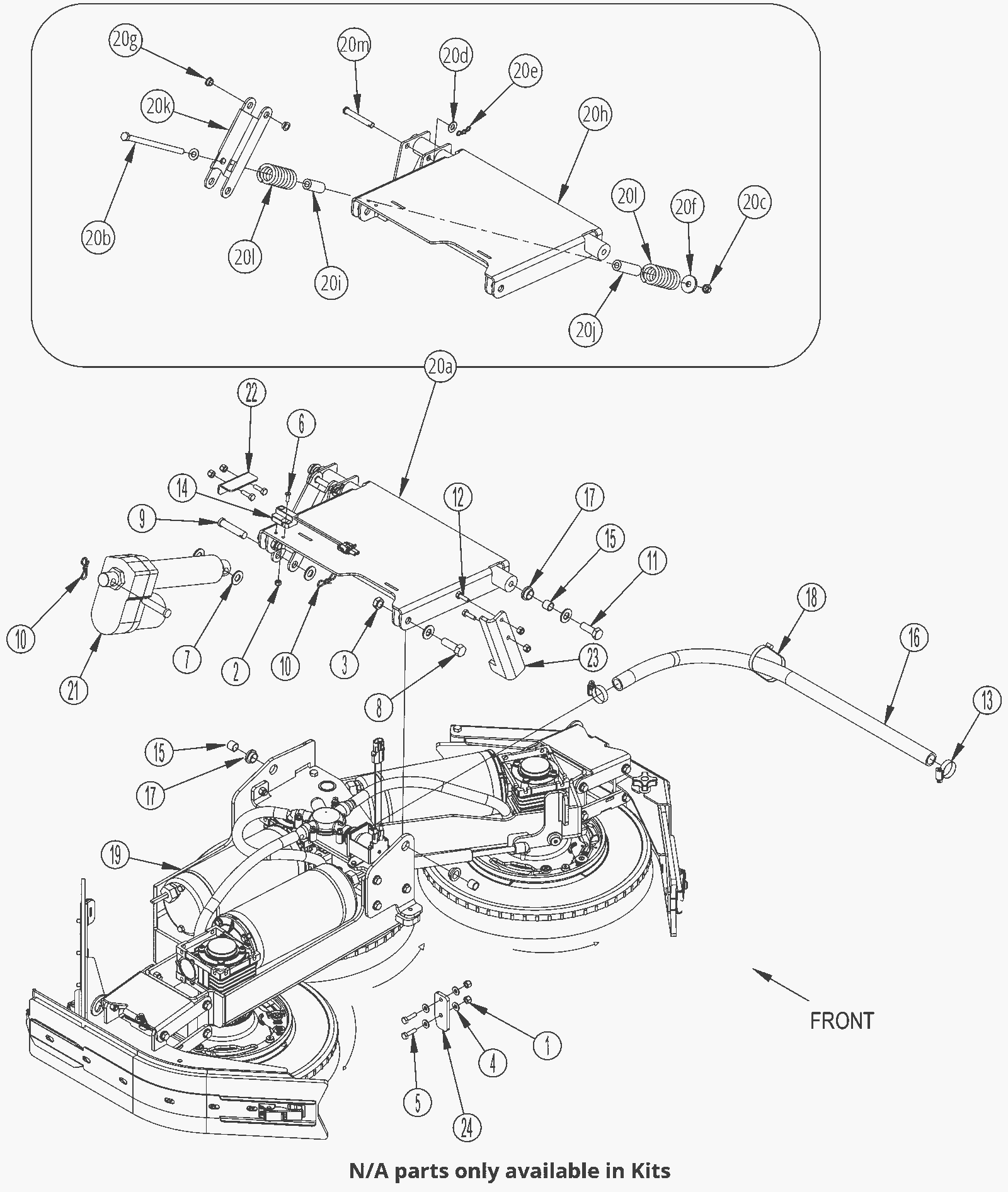

Scrub System Assembly

#PartDescription ReqNotesAvailability
1 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6 (included in KIT1)
2 999-0442 Nut 10-24 nylon insert lock stainless steel 1 (included in KIT1)
3 N/A Not available 2 (nut) (only available in KIT1)
4 999-0123 Washer 1/4 SAE flat zinc plated 4 (included in KIT1)
5 999-0830 Screw 1/4-20 x 1 hex head plain finish 2 (included in KIT1)
6 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 1 (included in KIT1)
7 999-0114 Washer 1/2 SAE flat 7 (included in KIT1)
8 N/A Not available 2 (screw) (only available in KIT1)
9 N/A Not available 2 (clevis pin) (only available in KIT1)
10 N/A Not available 2 (bow tie cotter pin) (only available in KIT1)
11 N/A Not available 2 (screw) (only available in KIT1)
12 999-0822 Screw 1/4-20 x 7/8 hex head plain finish 4 (included in KIT1)
13 997-2005 Hose clamp 2
14 272-8850 Proximity sensor 1
15 172-0024 Bushing 4
16 172-9354 Spiral hose for disc models 1
17 272-1843 Flanged bearing 4
18 997-2102 Cable tie 1
19 N/A Not available 1 (deck assembly)
20a N/A Not available 1 (deck lift arm assembly) (includes 20b-20m)
20b 472-3556 SCR-HEX SS 3/8-16 X 7.0 1
20c 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 1
20d 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
20e 472-3540 PIN-BOW-TIE COT 1/4-3/8X.072 1
20f 172-1939 Washer 13/32 x 1 1/4 x 5/32 1
20g 172-8815 Flanged bearing 2
20h 372-3287 Deck lift weldment 1
20i 372-3287 Deck lift weldment 1
20j 372-2889 Spacer 1
20k 372-2890 Arm lift spring 1
20l 272-3552 Compression spring 2
20m 372-2891 Clevis pin 1
21 372-2892 Scrub deck actuator 1
22 372-2893 Target sensor bracket 1
23 372-2894 Positive stop bracket 1
24 372-2895 Scrub deck stop 1
KIT1 372-2896 Scrub system hardware kit 1 (includes 1-12)
