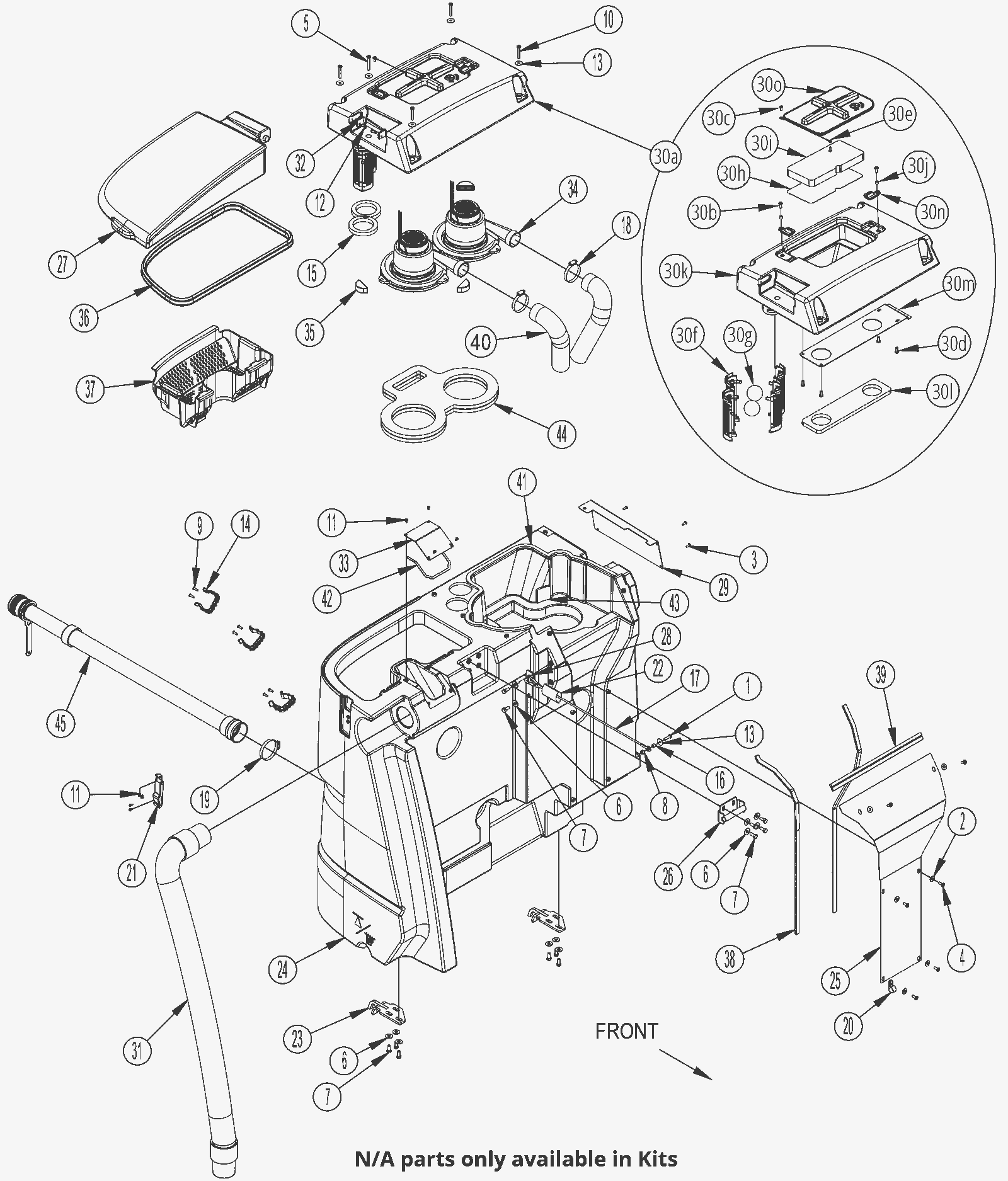

Recovery System Assembly

#PartDescription ReqNotesAvailability
1 999-0822 Screw 1/4-20 x 7/8 hex head plain finish 1 (included in KIT5)
2 999-6684 Washer 1/4 flat stainless steel 6 (included in KIT5)
3 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 3 (included in KIT5)
4 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 6 (included in KIT5)
5 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel 1 (included in KIT5)
6 999-0024 Washer 5/16 flat stainless steel 12 (included in KIT5)
7 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 12 (included in KIT5)
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1 (included in KIT5)
9 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 6 (included in KIT4)
10 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel 4 (included in KIT5)
11 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 8 (included in KIT5)
12 N/A Not available 2 (screw) (only available in KIT5)
13 N/A Not available 6 (washer) (only available in KIT5)
14 N/A Not available 3 (clamp) (only available in KIT4)
15 272-0430 Vacuum duct gasket 2
16 172-0162 Bushing 1
17 272-9973 Quick link cable assembly 1
18 272-9976 #32 hose clamp SAE 2
19 N/A Not available 1 (hose clamp) (only available in KIT3)
20 172-2122 P clamp 1
21 372-2036 Hopper cover latch 1
22 372-2283 Shrink tube 3/4 x 2 1/2 1
23 372-2859 Tank pivot weldment (OBSOLETE) 2
24 372-2860 Recovery tank 1
25 372-2861 Exhaust cover 1
26 372-2862 Latch pin weldment 1
27 372-2863 Recovery tank cover 1 (included in KIT1)
28 372-2864 Tether hook 1
29 372-2865 Cover plate 1
30a N/A Not available 1 (vacuum fan cover assembly) (includes 30b-30o)
30b 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 2
30c 272-9978 Screw 10-14 x 1/2 pan head phillips plastite 2
30d 272-1601 Screw 1/4-14 X 5/8 pan head phillips type B 4
30e 172-3357 9 inch wire rope 1
30f N/A Not available 4 (float cage) (only available in KIT2)
30g N/A Not available 2 (float ball) (only available in KIT2)
30h 272-9980 Filter screen 1
30i 272-9981 Filter 1
30j 172-0185 Bushing 2
30k 372-2866 Vacuum fan cover 1
30l 372-2867 Vacuum fan top gasket 1
30m 372-2868 Vacuum cover plate 1
30n 372-2869 Latch (plastic) 2
30o 372-2870 Vacuum filter lid assembly 1
31 372-2871 Squeegee hose 1
32 372-2872 Hinge tab 2
33 372-2873 Inlet plate 1
34 372-2874 36V vacuum motor 2
35 372-2875 Isolator mount 4
36 372-2876 Recovery tank cover gasket 1 (included in KIT1)
37 372-2877 Debris basket 1
38 372-2878 Cover gasket 2
39 372-2879 Seal trim 1
40 372-2880 Foam tube assembly 2
41 372-2881 Tank gasket 1
42 372-2882 Inlet plate gasket 1
43 372-2883 Foam isolator 5
44 372-1144 Vacuum fan seal assembly 1
45 572-9314 Drain hose 1 (included in KIT3)
KIT1 372-2884 Recovery lid kit 1 (includes 27 and 36)
KIT2 372-2885 Float ball cage kit 1 (includes 30f-30g)
KIT3 472-7846 DRAIN HOSE KIT 1 (includes 19 and 45)
KIT4 372-2886 Drain hose clip kit 1 (includes 9 and 14)
KIT5 372-2887 Recovery system hardware kit 1 (includes 1-8, 10-13)
