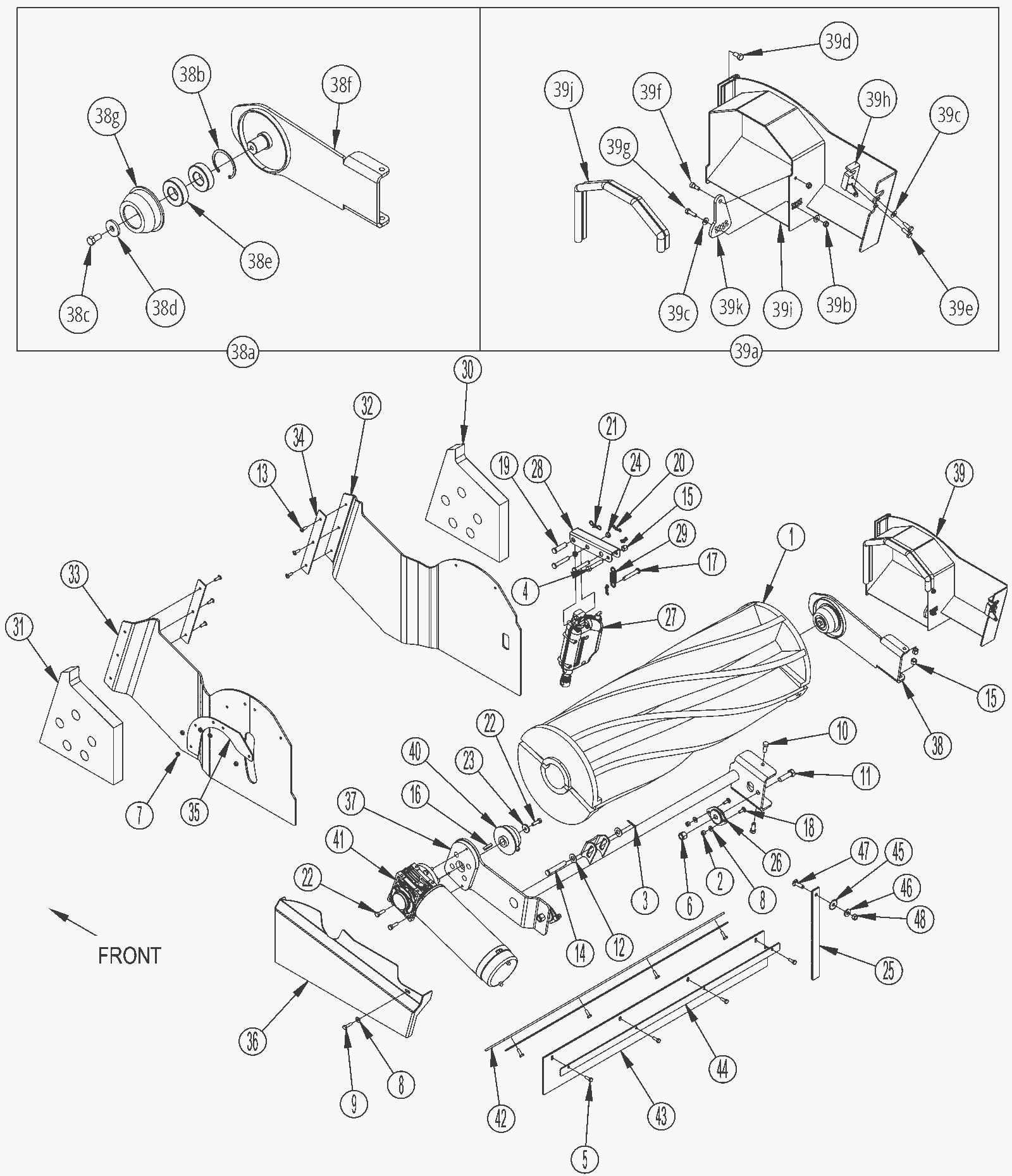

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
472-2965
|
BROOM-MAIN PROLENE/WIRE STD |
1 |
|
|
2 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
(included in KIT6 |
|
3 |
N/A
|
Not available |
1 |
(cotter pin) (only available in KIT6) |
|
4 |
N/A
|
Not available |
1 |
(screw) (only available in KIT5) |
|
5 |
N/A
|
Not available |
8 |
(screw) (only available in KIT1) |
|
6 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
2 |
(included in KIT6) |
|
7 |
N/A
|
Not available |
5 |
(nut) (only available in KIT7) |
|
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
5 |
(included in KIT6 and KIT7) |
|
9 |
999-0830
|
Screw 1/4-20 x 1 hex head plain finish |
1 |
(included in KIT7) |
|
10 |
N/A
|
Not available |
2 |
(screw) (only available in KIT6) |
|
11 |
N/A
|
Not available |
2 |
(screw) (only available in KIT6) |
|
12 |
999-0114
|
Washer 1/2 SAE flat |
2 |
(included in KIT6) |
|
13 |
999-0456
|
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
6 |
(included in KIT4) |
|
14 |
N/A
|
Not available |
1 |
(clevis pin) (only available in KIT6) |
|
15 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
3 |
(included in KIT5 and KIT7) |
|
16 |
N/A
|
Not available |
1 |
(key) (only available in KIT6 and KIT7) |
|
17 |
N/A
|
Not available |
3 |
(clevis pin) (only available in KIT5) |
|
18 |
N/A
|
Not available |
4 |
(screw) (only available in KIT6) |
|
19 |
N/A
|
Not available |
1 |
(clevis pin) (only available in KIT5) |
|
20 |
N/A
|
Not available |
3 |
(bow tie cotter pin) (only available in KIT5) |
|
21 |
N/A
|
Not available |
1 |
(bow tie cotter pin) (only available in KIT5) |
|
22a |
N/A
|
Not available |
4 |
(screw) (only available in KIT2 and KIT6) |
|
22b |
N/A
|
Not available |
1 |
(screw) (only available in KIT7) |
|
23 |
N/A
|
Not available |
1 |
(washer) (only available in KIT6 and KIT7) |
|
24 |
N/A
|
Not available |
2 |
(flange bearing) (only available in KIT5) |
|
25 |
170-6734
|
Strap static |
1 |
|
|
26 |
N/A
|
Not available |
2 |
(bearing) (only available in KIT6) |
|
27 |
N/A
|
Not available |
1 |
(broom lift actuator) (only available in KIT5) |
|
28 |
N/A
|
Not available |
1 |
(spring arm) (only available in KIT5) |
|
29 |
N/A
|
Not available |
1 |
(extension spring) (only available in KIT5) |
|
30 |
N/A
|
Not available |
1 |
(right skirt foam) (only available in KIT4) |
|
31 |
N/A
|
Not available |
1 |
(left skirt foam) (only available in KIT4) |
|
32 |
N/A
|
Not available |
1 |
(right skirt) (only available in KIT4) |
|
33 |
N/A
|
Not available |
1 |
(left skirt) (only available in KIT4) |
|
34 |
N/A
|
Not available |
2 |
(skirt strap) (only available in KIT4) |
|
35 |
372-2841
|
Left hand skirt strap |
1 |
|
|
36 |
372-2842
|
Panel weldment |
1 |
|
|
37 |
N/A
|
Not available |
1 |
(broom support weldment) (only available in KIT6) |
|
38a |
372-2843
|
Broom arm assembly |
1 |
(includes 38b-38g) |
|
38b |
172-4412
|
Retaining ring |
1 |
|
|
38c |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
1 |
|
|
38d |
172-1939
|
Washer 13/32 x 1 1/4 x 5/32 |
1 |
|
|
38e |
172-9411
|
Ball bearing |
2 |
|
|
38f |
372-2843
|
Broom arm assembly |
1 |
|
|
38g |
372-2845
|
Broom idler hub |
1 |
|
|
39a |
372-2846
|
Broom door assembly |
1 |
(includes 39b-39k) |
|
39b |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
39c |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
39d |
172-3280
|
Screw 5/16 - 18 x 5/8 hex lock stainless steel |
3 |
|
|
39e |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
39f |
472-3509
|
SCR SOC SHD .31X.25X1/4-20 |
1 |
|
|
39g |
472-3555
|
SCR-HEX SS 1/4-20 X .88 |
1 |
|
|
39h |
272-9692
|
Right hand latch |
1 |
|
|
39i |
372-2847
|
Broom door weldment |
1 |
|
|
39j |
372-2848
|
Broom door seal |
1 |
|
|
39k |
372-2849
|
Stop arm |
1 |
|
|
40 |
N/A
|
Not available |
1 |
(broom drive assembly hub) (only available in KIT6) |
|
41a |
N/A
|
Not available |
1 |
(broom motor assembly) (only included in KIT2) |
|
41b |
372-2854
|
Brush motor kit |
1 |
(for 41a) (included in KIT3) |
|
42 |
N/A
|
Not available |
1 |
(broom flap) (only available in KIT1) |
|
43 |
N/A
|
Not available |
1 |
(rear broom skirt) (only available in KIT1) |
|
44 |
N/A
|
Not available |
2 |
(rear broom strap) (only available in KIT1) |
|
45 |
N/A
|
Not available |
1 |
(washer) (only available in KIT7) |
|
46 |
N/A
|
Not available |
1 |
(washer) (only available in KIT7) |
|
47 |
N/A
|
Not available |
1 |
(bolt) (only available in KIT7) |
|
48 |
999-0635
|
Nut 3/8-16 hex stainless steel |
1 |
(included in KIT7) |
|
N/S |
472-2965
|
BROOM-MAIN PROLENE/WIRE STD |
1 |
|
|
N/S |
472-2963
|
BROOM-MAIN NYLON |
1 |
(optional) |
|
N/S |
472-2964
|
BROOM-MAIN PROLENE |
1 |
(optional) |
|
N/S |
372-2851
|
Main broom natural/union mix (OBSOLETE) |
1 |
(optional) |
|
KIT1 |
372-2852
|
Rear broom strap kit |
1 |
(includes 5, 42-44) |
|
KIT2 |
372-2853
|
Broom motor kit |
1 |
(includes 22 and 41) |
|
KIT3 |
372-2854
|
Brush motor kit |
1 |
(includes 41b) |
|
KIT4 |
372-2855
|
Broom skirt kit |
1 |
(includes 13, 30-34) |
|
KIT5 |
372-2856
|
Main broom actuator kit |
1 |
(includes 4, 15, 17, 19-21, 24, 27-29) |
|
KIT6 |
372-2857
|
Main broom support kit |
1 |
(includes 2-3, 6, 8, 10-12, 16, 18, 22, 23, 26, 37, 40) |
|
KIT7 |
372-2858
|
Main broom hardware kit |
1 |
(includes 7-9, 15-16, 22-23, 45-48) |
|
