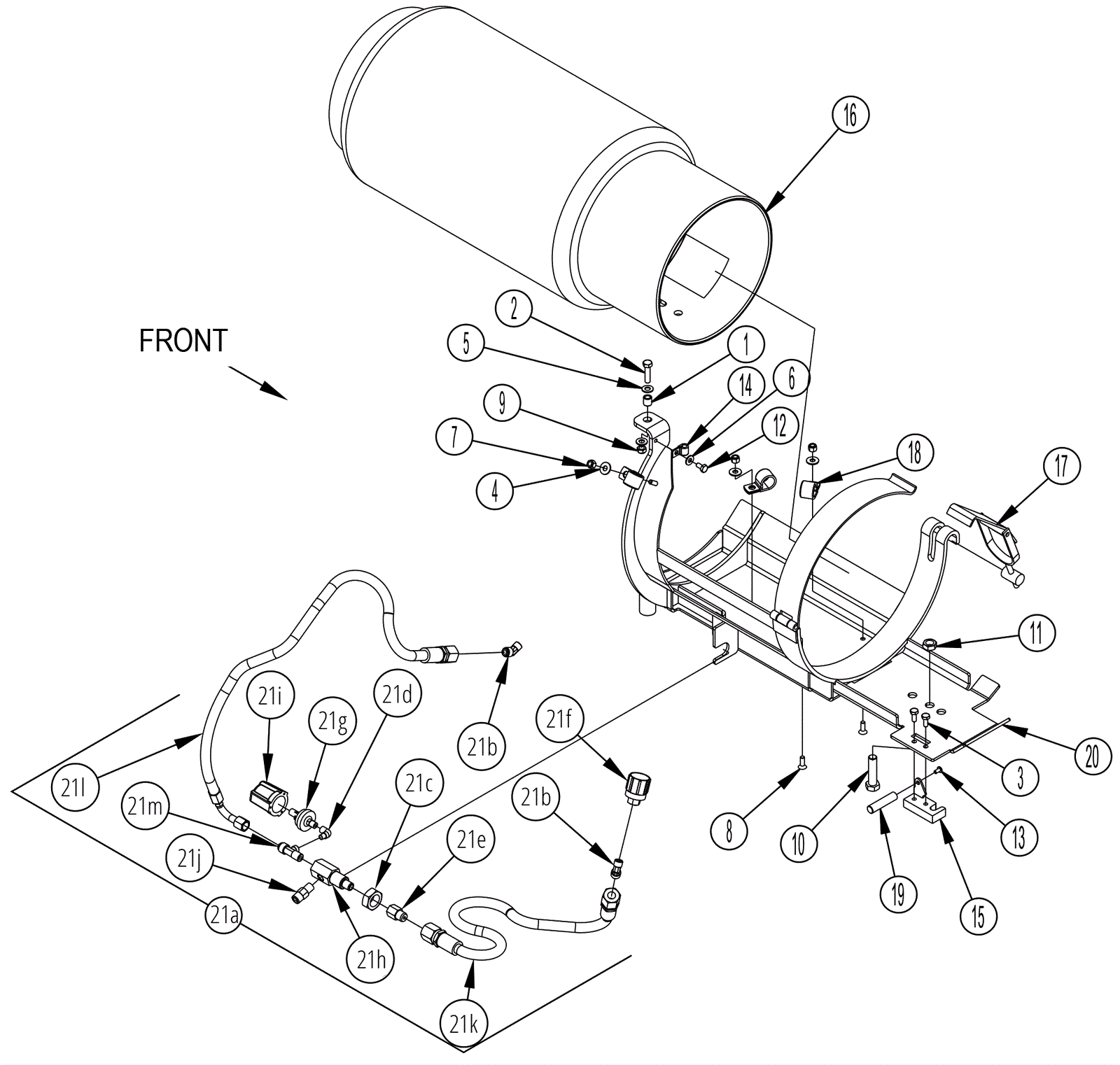

LPG Tank Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (bushing) (only available in KIT2)
2 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish 1 (included in KIT2)
3 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2 (included in KIT2)
4 999-6684 Washer 1/4 flat stainless steel 3 (included in KIT2)
5 999-9004 Washer 5/16 SAE flat stainless steel 2 (included in KIT2)
6 999-0123 Washer 1/4 SAE flat zinc plated 1 (included in KIT2)
7 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 3 (included in KIT2)
8 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel 2 (included in KIT2)
9 N/A Not available 1 (nut) (only available in KIT2)
10 N/A Not available 1 (screw) (only available in KIT2)
11 999-0050 Nut 1/2-13 hex jam plain finish 1 (included in KIT2)
12 N/A Not available 1 (screw) (only available in KIT2)
13 N/A Not available 1 (screw) (only available in KIT1 and KIT2)
14 172-9530 Cable clamp 1
15 N/A Not available 1 (right latch) (only available in KIT1)
16 272-3359 LP tank 1
17 272-7880 Toggle 1
18 272-1613 P clamp 3
19 N/A Not available 1 (pin) (only available in KIT1)
20 372-2826 Fuel tank mount weldment 1
21a 372-2827 LP filter assembly 1 (includes 21b-21m)
21b 272-3355 45 degree elbow, male 2
21c 172-4330 Nut 7/8-14 hex jam 1
21d 272-2073 Elbow 1
21e 272-7886 45 degree SAE adapter 1
21f 272-7275 Female coupler 1
21g 272-3353 Switch N C Pressure 1
21h 272-3357 Bulkhead fitting 1
21i 272-7887 Dust boot 1
21j 272-3356 1/4 NPT vent 1
21k 372-2828 LPG hose assembly 1
21l 372-2829 LPG hose assembly 1
21m 272-3337 Tee 1
KIT1 372-2830 Tank latch kit 1 (includes 13, 15, 19)
KIT2 372-2831 Hardware kit 1 (includes 1-13)
