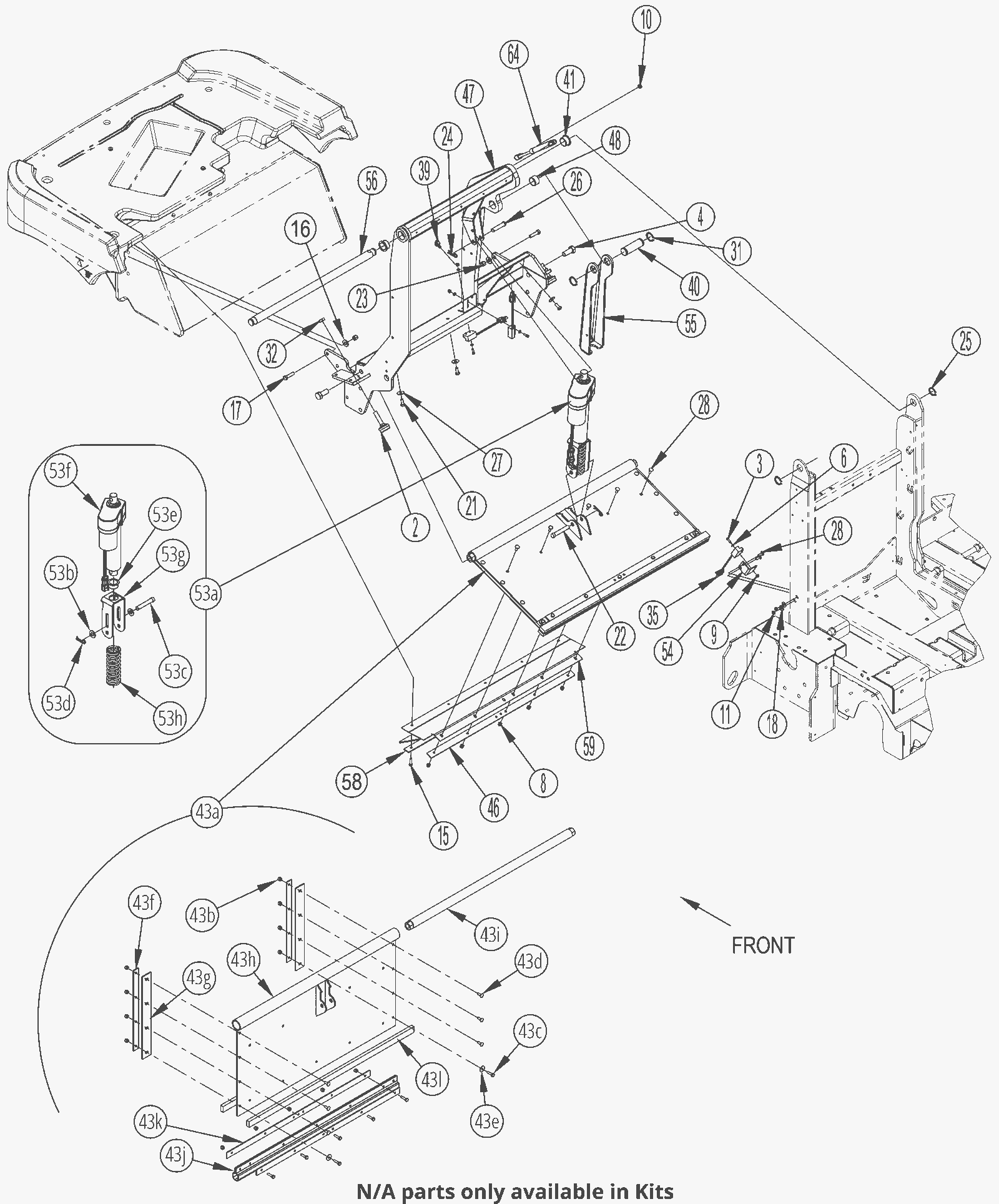

Hopper Assembly 2

#PartDescription ReqNotesAvailability
2 172-9507 Leveler 2
3 N/A Not available 3 (screw) (only available in KIT4)
4 N/A Not available 2 (screw) (only available in KIT4)
6 999-0412 Washer #8 SAE flat 5 (included in KIT4)
8 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8 (included in KIT3)
9 999-0442 Nut 10-24 nylon insert lock stainless steel 3 (included in KIT4)
10 N/A Not available 1 (nut) (only available in KIT4)
11 N/A Not available 2 (nut) (only available in KIT4)
15 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 5
16 999-9128 Washer 3/8 SAE flat stainless steel 4 (included in KIT4)
17 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel 4 (included in KIT4)
18 999-6684 Washer 1/4 flat stainless steel 2 (included in KIT4)
21 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 3 (included in KIT4)
22 N/A Not available 1 (clevis pin) (only available in KIT4)
23 999-1482 Nut 3/8-16 nylon lock stainless steel 4 (included in KIT4)
24 N/A Not available 2 (cotter hair pin) (only available in KIT4)
25 N/A Not available 2 (ring) (only available in KIT4)
26 N/A Not available 1 (clevis pin) (only available in KIT4)
27 N/A Not available 3 (washer) (only available in KIT4)
28 N/A Not available 6 (screw) (only available in KIT3 and KIT4)
31 N/A Not available 2 (ring) (only available in KIT4)
32 999-0050 Nut 1/2-13 hex jam plain finish 2 (included in KIT4)
35 272-8850 Proximity sensor 3
39 272-8754 Conduit clip 1
40 372-2337 Cylinder pin 1
41 372-2818 Flange bearing 2
43a 372-2809 Dump door assembly 1 (includes 43b-43l)
43b 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 13
43c 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 7
43d 272-3627 Screw 1/4-20 x 3/4 carriage head stainless steel 6
43e 172-0553 Washer 17/64 x 1/16 flat 2
43f 572-0622 CLAMP HOPPER DOOR SIDE SEAL 2
43g 572-0623 SEAL HOPPER DOOR SIDE 2
43h 372-2810 Hopper door weldment 1
43i 372-2811 Dump door pivot weldment 1
43j 372-2812 Hopper door bottom seal 1
43k 372-2813 Hopper door bottom clamp 2
43l 372-2814 Hopper door bottom seal 2
46 N/A Not available 1 (hopper door bottom clamp) (only available in KIT5)
47 372-2815 Hopper lift weldment 1
48 372-2816 Bearing 1
53a 372-2817 Dump door actuator assembly 1 (includes 53b-53h)
53b 999-0114 Washer 1/2 SAE flat 2
53c 172-4393 Pin .50 x 3.00 clevis 1
53d 997-2518 Hitch pin 1
53e 372-2818 Flange bearing 1
53f 372-2819 Dump door actuator 1
53g 372-2820 Dump door actuator yoke (OBSOLETE) 1
53h 372-2821 Compression spring (OBSOLETE) 1
54 472-7936 BRACKET-SENSOR MOUNTING 1
55 372-2822 Prop rod assembly 1
56 372-2823 Hopper hinge bar 1
58 N/A Not available 1 (hopper door seal clamp) (only available in KIT5)
59 N/A Not available 1 (hopper door seal) (only available in KIT5)
64 372-3257 Gas spring 1
KIT3 372-2806 Hopper flap kit 1 (includes 8 and 28)
KIT4 372-2807 Hardware kit 1 (includes 3-4, 6, 9-11, 16-18, 21-28, 31-32)
KIT5 372-2825 Hopper door seal kit 1 (includes 58-59)
